How to Choose LED Marker Lights for Your Truck or Trailer
Shopping for LED truck marker lights can get confusing fast. Some sit close to the body. Others extend on an arm. You’ll see different lens finishes, mounting options, and wiring configurations—and a light that looks right in a product photo may need a completely different installation than you expected.
The easiest way to narrow your options is to start with the job you need the light to do, then check the mounting space and electrical connection. Choose the finish after those details are settled.
Whether you’re updating one truck or planning a trailer fleet upgrade, here’s what to compare before you order.
1. Start with the lighting function
Are you replacing an existing marker lamp, adding auxiliary outline lighting, or trying to illuminate a work area? Those are different shopping decisions.
A compact marker lamp and an arm-mounted outline lamp may both appear in a truck lighting catalog, but their shape alone does not tell you whether they are suitable for the same function or installation. Check the exact model’s documentation and intended use.
If you need to see the ground or a loading area, look at lighting designed for that task. Don’t choose a marker light expecting it to perform like a work lamp.
For a required-light replacement, verify the replacement’s documented suitability for that specific function and mounting position. For an auxiliary installation, keep the vehicle’s required lighting and reflectors visible and have the installation reviewed for the applicable requirements.
New to the terminology? Read our guide to contour lights and outline marker lights for more background.
2. Compare compact markers and outline arms
The right mounting style depends on where you have room to install the lamp and how far it will project from the vehicle.
| Lighting style | Why consider it? | What to check before ordering |
|---|---|---|
| Compact side marker | A smaller lamp profile for a close-to-body installation | Overall dimensions, mounting pattern, and intended function |
| Short-arm outline light | An arm-mounted outline design with less reach than an extended version | Total projection, mounting surface, and clearance |
| Extended-arm outline light | A longer reach when your planned mounting location calls for it | Arm dimensions and space around doors, docks, and moving equipment |
| Smoked or graphite lens | A darker lens appearance for a coordinated vehicle finish | Exact model specifications, light output documentation, and fit |
Compact option: LD 3211
The LD 3211 Amber Slim Side Marker Light is a compact option to compare when you’re looking for a slim marker design. Start with the mounting dimensions and confirm that the model fits your planned application.
Short-arm option: LDCC 2776 & LDCC 2777
The LDCC 2776 & LDCC 2777 Short Arm Outline Marker Light Set is worth comparing when you prefer an outline-arm design with a shorter reach. Measure the complete installation space rather than judging fit from the lamp head alone.

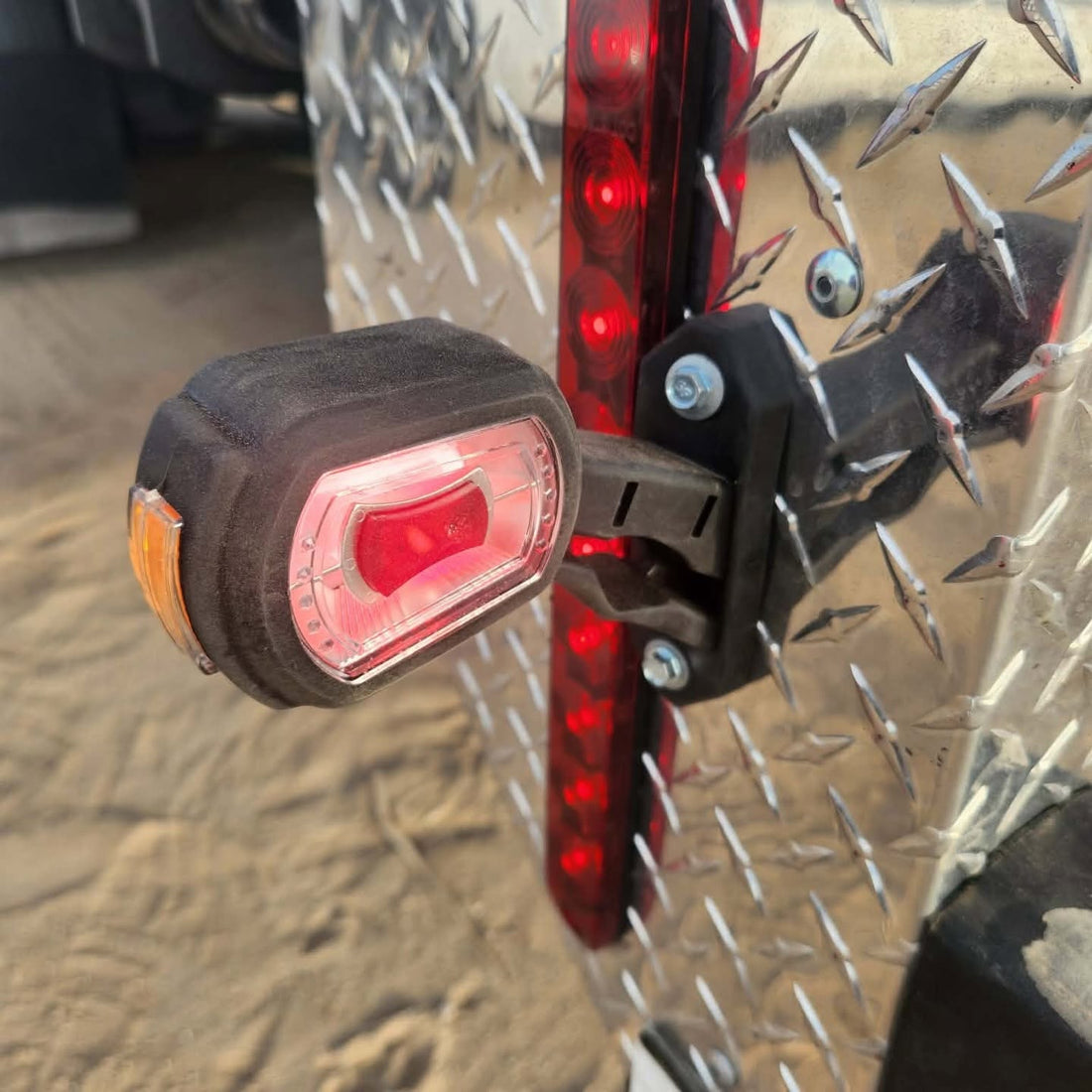

Extended-arm option: LDCC 2698 & LDCC 2699
The LDCC 2698 & LDCC 2699 Extended Side Arm Outline Marker Light Set offers an extended-arm style. Compare its dimensions with the short-arm option before deciding which suits your mounting location.
3. Measure the installation space
A few measurements now can save you from ordering lights that need an unexpected bracket or a different mounting location.
Before buying, check:
-
The available mounting surface and bolt-hole spacing.
-
The light’s complete height, width, and projection.
-
Clearance around trailer doors, liftgates, steps, and other moving parts.
-
Space for the cable and connector behind the mounting point.
-
Whether your installation needs a bracket or additional hardware.
Think about how the truck or trailer is actually used. Walk around it with the doors open, inspect the intended mounting location, and consider the equipment it operates near. An installation that fits while parked still needs suitable clearance during everyday operation.
4. Match the voltage and wiring
Check the exact lamp’s operating voltage against your vehicle’s electrical system. Don’t assume every LED truck or trailer light has the same voltage range.
Next, compare the wiring connection. Look at the connector type, cable length, wire functions, and any harness or adapter needed for your installation. Check the selected purchase option too: a lamp, a pair, and a complete installation kit may include different components.
For a multifunction lamp, confirm how each function connects. Buying a lamp with several functions does not mean every function will operate through your existing connection.
Take a clear photo of your current connector and mounting location before shopping. Having those details beside the product specifications makes comparison much easier.
5. Compare durability details
For commercial vehicle lighting, compare more than the product’s appearance. Review the published environmental protection rating, operating temperature range, housing and arm materials, installation instructions, and warranty terms for each model.
Also consider the connection itself. A lamp’s published protection rating does not describe every splice, connector, or wiring modification in your finished installation. Follow the installation instructions and use connections suitable for the application.
For a fleet, serviceability matters too. Choosing a consistent lamp and connection setup can make it easier to identify replacement parts and keep the right components on hand.
6. Choose the finish that suits your truck
Once the fit and electrical details are confirmed, choose the look you want.
The LD 3211 Graphite Amber Slim Marker Light is an option to compare if you prefer a darker lens appearance. Check its own specifications rather than assuming every detail matches another version.
For compatible LDCC outline marker lights, the RoadLites Chrome Decorative Housing adds a chrome accent around the lamp. It is a decorative accessory, and the LED light is sold separately. Verify your exact LDCC model’s compatibility before ordering.
If you’re planning a matched pair or several installations, confirm the quantity selected for both the lights and accessories.
Frequently asked questions
Are all LED marker lights interchangeable?
No. Compare the intended function, dimensions, voltage, mounting pattern, and electrical connection. A similar-looking lamp may require different hardware or wiring.
Should I choose short or extended outline arms?
Measure your mounting location and compare the complete dimensions of each option. Choose the arm length that suits the installation while allowing appropriate clearance around nearby equipment and moving parts.
Does a smoked lens tell me what color the light emits?
No. Lens appearance and emitted light color are separate specifications. Check the exact product listing for both.
Does the chrome housing include an LED light?
The RoadLites chrome decorative housing listing is for the housing only. The LED outline marker light is sold separately unless a listing specifically states otherwise.
Find the right RoadLites for your next upgrade
Start with the lighting function, measure the mounting space, and confirm the electrical connection. Then choose the style and finish that suit your truck or trailer.
Shop RoadLites Auxiliary Outline Marker Lights to compare available designs, or explore the LD 3211 compact amber marker for a slim option.
Need help narrowing it down? Email info@roadlites.com with your vehicle type, a photo of the mounting location, connector details, and the model you’re considering. Tell us whether you’re replacing an existing lamp or adding auxiliary lighting so we can help you compare the right products.
