What Are Contour Lights? European Lighting and American Outline Marker Lights
Share
A trailer can be easy to spot from behind and still be difficult to judge at its outer edges. Lighting that defines those edges gives other road users another visual reference when the vehicle’s lamps are on.
If you have researched European truck lighting, you may have come across the term contour lights. In product catalogs, related designs are also called outline marker lights, outline marker lamps, or side-arm marker lights. At RoadLites, we use outline marker lights to describe our supplemental lamps designed to help define portions of a vehicle’s outline.
The terminology overlaps, but the installation rules differ between Europe and the United States. Here is what those names mean and how to approach them on an American truck or trailer.
What is contour lighting?
Contour lighting uses powered lamps to make parts of an object’s outline easier to see. On commercial vehicles, the idea is to provide a visible reference at an edge or corner rather than illuminate the road ahead like a headlight.
That does not have to mean a continuous LED strip around the entire trailer. Individual lamps mounted at selected points can help define its outline, too. Some designs sit close to the body; others use an arm that positions the lamp outward from its mounting point.
Browse our LED outline marker lights for trucks and trailers to see examples of these designs.
Contour lights, outline marker lights, and outline marker lamps
When shopping, you may encounter several names for related products:
| Term | What it describes |
|---|---|
| Contour lights | A broad commercial term for lamps that help define a vehicle’s outline |
| Outline marker lights or outline marker lamps | Product names used for lamps intended to mark portions of the vehicle’s outline; “light” and “lamp” are often used interchangeably |
| Side-arm or stalk marker lights | Names that describe the lamp’s projecting mounting design |
| End-outline marker lamps | A specific regulated lighting category in the European UN lighting framework |
| Contour markings | Retroreflective material that outlines a vehicle and reflects incoming light |
The European end-outline marker category is specifically associated with marking overall width near the vehicle’s outer edges and top. A product described as a contour light is not automatically suitable for every regulated lighting position. See the definition in UN Regulation No. 48.
How Europe approaches vehicle outline visibility
European requirements distinguish between marker lamps, side-marker lamps, and reflective markings. Vehicle dimensions, age, category, and applicable national rules affect what equipment is required.
For a concrete example, the Netherlands’ RDW trailer inspection rules require front- and rear-visible marker lamps on trailers wider than 2.10 metres that entered service after December 31, 1997. Side-marker lamps have a separate requirement for trailers longer than 6 metres from that period. These are Dutch inspection provisions, not universal rules for every European vehicle. Source: RDW trailer lighting requirements.
That distinction matters when reading lighting guides online: a width threshold for one lamp type should not be treated as a length threshold for another.
Contour lights versus reflective contour tape
Powered contour lights and reflective contour markings serve related visibility purposes, but they work differently.
An LED lamp produces light when supplied with electrical power. Retroreflective tape returns incoming light toward its source, such as another vehicle’s headlights.
The RDW rules address reflective line and contour markings separately from lamps and specify UN/ECE Regulation 104 material for those markings. Adding lamps does not replace a requirement for reflective material. Source: RDW reflective marking provisions.
How outline marker lights fit the American market
In the United States, FMVSS 108 governs required vehicle lighting and reflective equipment. Required clearance lamps, identification lamps, side-marker lamps, and conspicuity treatments have their own specifications. European approval does not establish U.S. compliance. Additional equipment must not impair required lighting. Source: FMVSS 108.
RoadLites’ auxiliary outline marker lights are offered as supplemental lighting. Their intended role is to add a visual reference at selected portions of the vehicle’s outline while preserving the required lighting system.
NHTSA distinguishes supplemental equipment from required replacement lamps and explains that aftermarket business installations must not make required safety equipment inoperative. Applicable state rules also need to be considered. Source: NHTSA supplemental lighting interpretation.
For more detail, read our DOT and FMVSS 108 truck lighting guide.
Choosing outline marker lights for your truck or trailer
Start with the mounting location. Consider how far the lamp should project, what surrounding drivers will see, and whether the installation has enough clearance for normal operations.
Check the selected model’s voltage, connector, dimensions, color configuration, and environmental rating. Before installation, assess potential contact with dock equipment, trailer doors, and nearby structures. Choose the lamp and location together rather than relying on appearance alone.

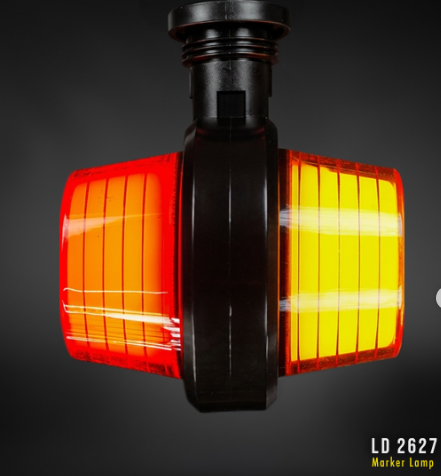

Two RoadLites options to explore are:
For a different finish, explore our chrome decorative housing for compatible LDCC outline marker lights. Confirm compatibility with your selected model before ordering.
Explore RoadLites outline marker lights
Whether you found them by searching for contour lights, outline marker lamps, or outline marker lights, the next step is choosing a design that suits your vehicle and its installation requirements.
Shop RoadLites auxiliary LED outline marker lights and compare the available mounting designs, lamp configurations, and accessories.
