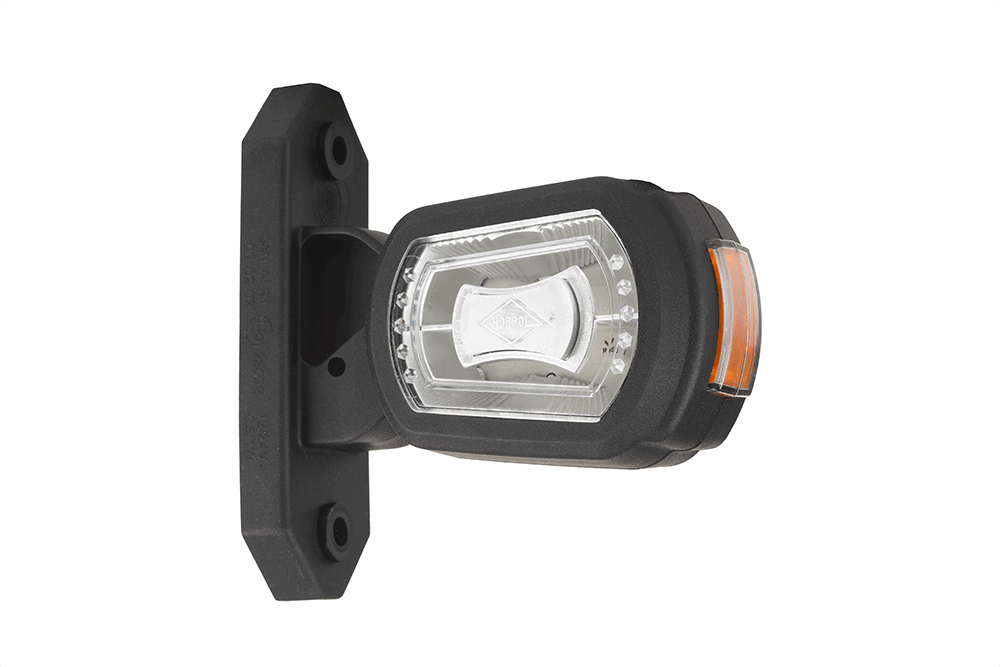

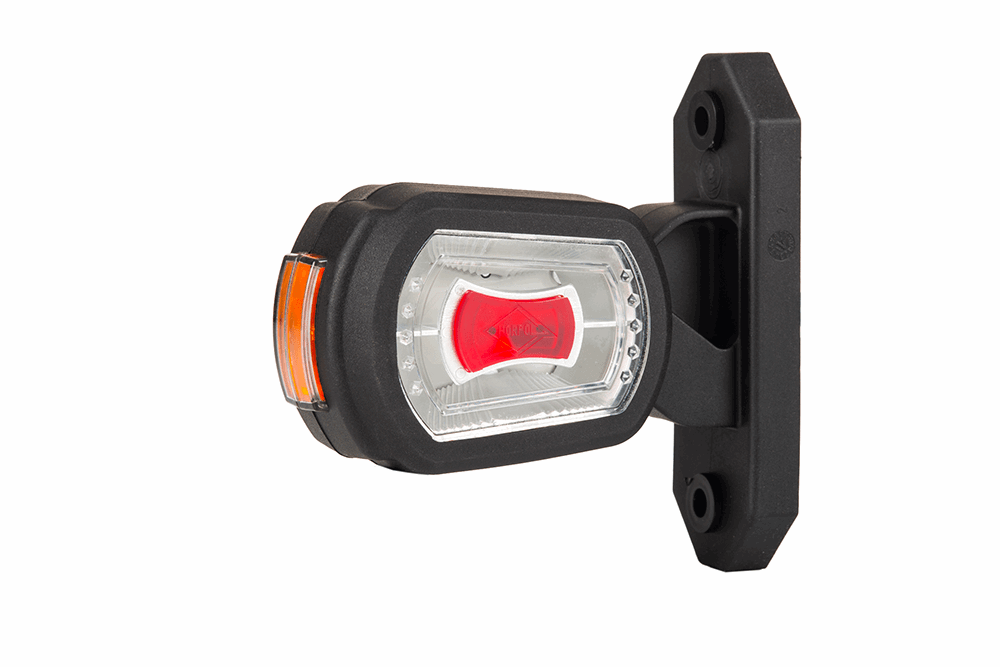

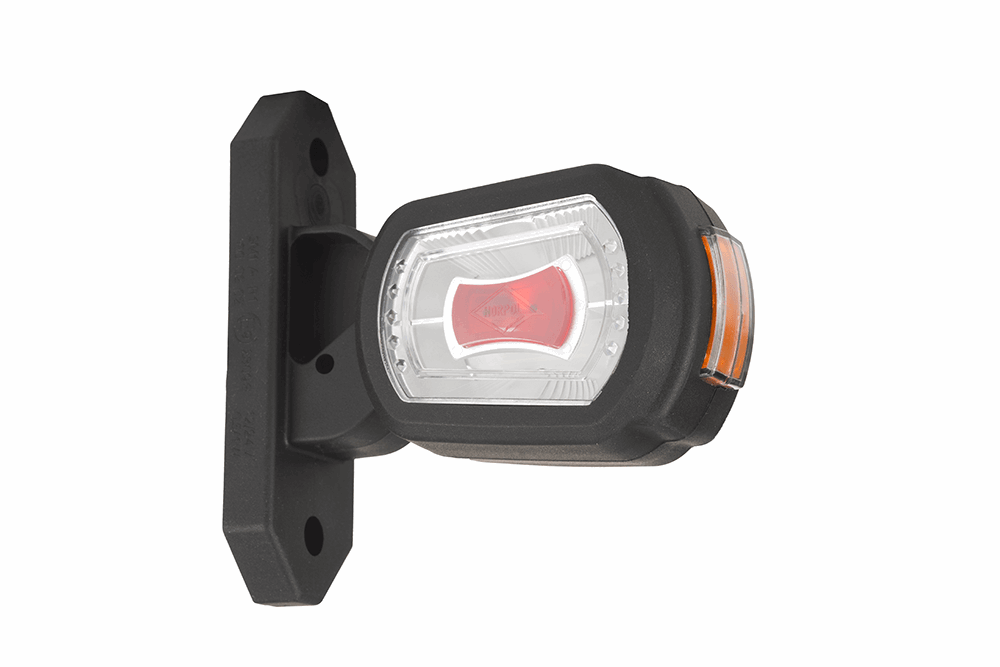

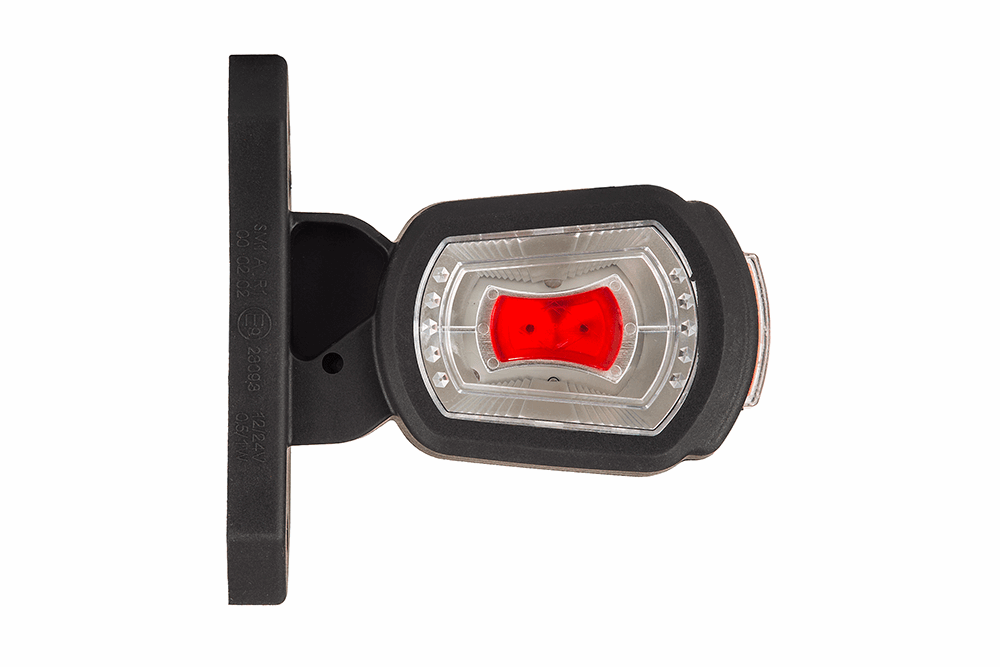

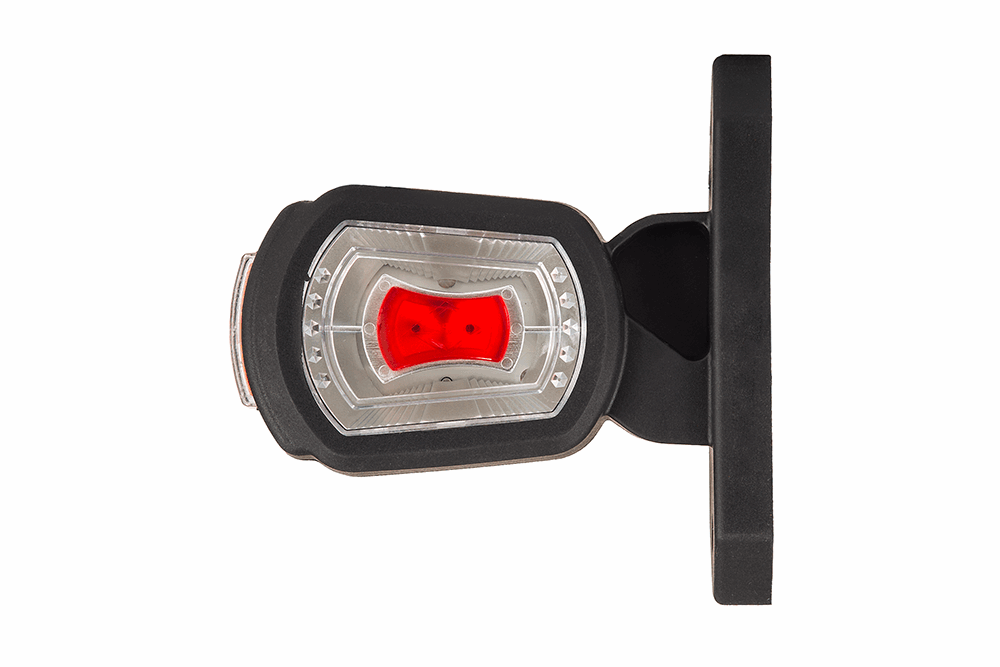

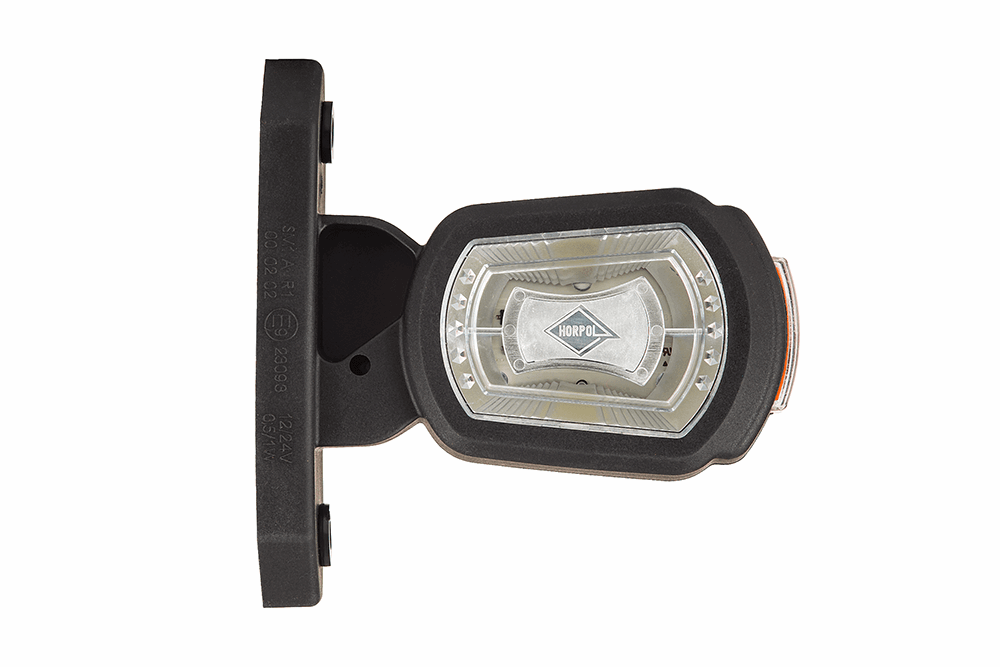

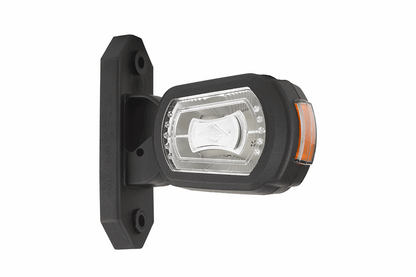

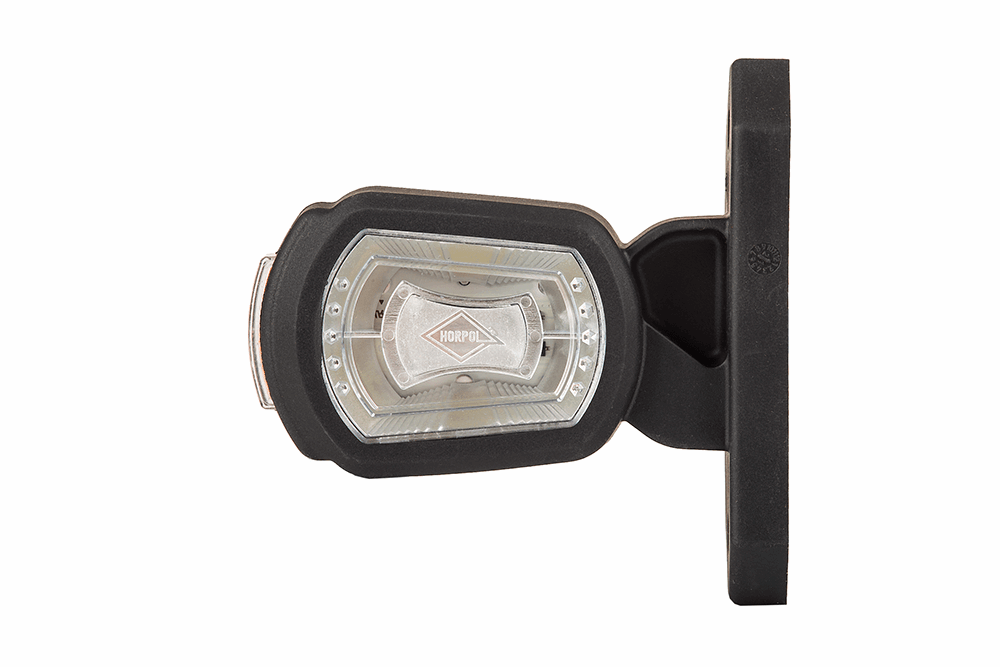

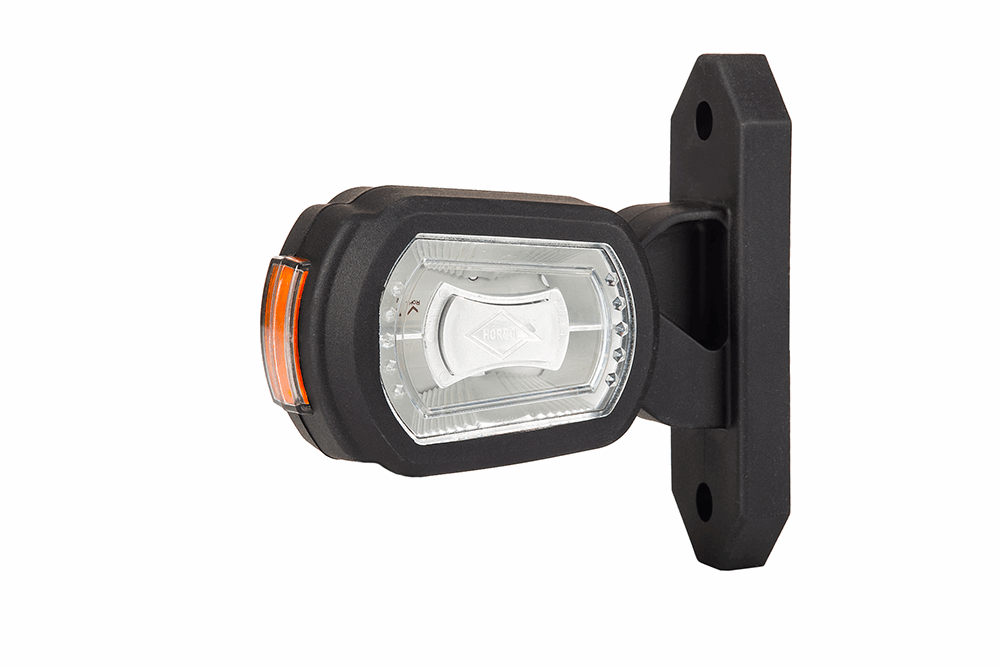

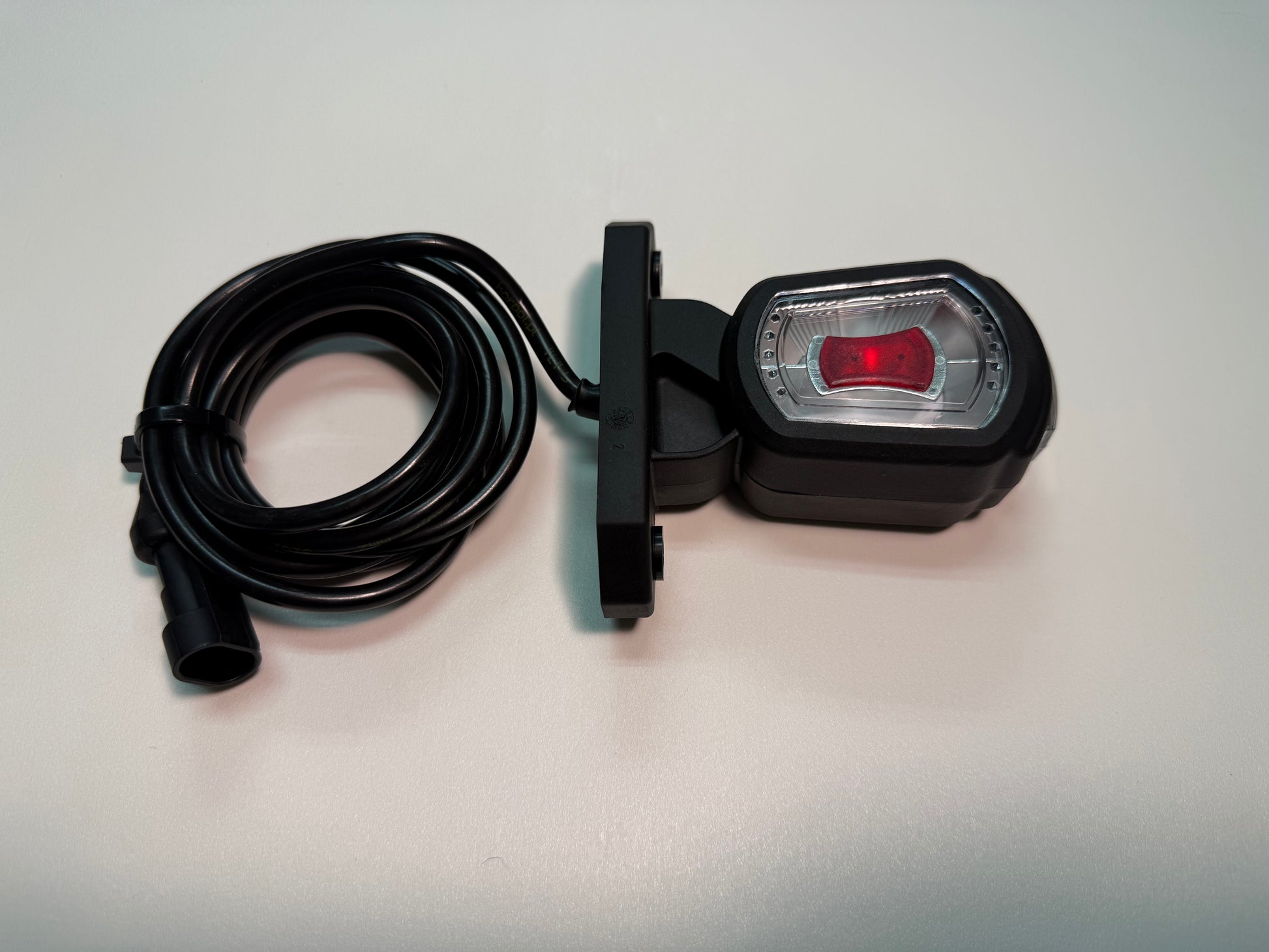

Illuminate your vehicle with versatility and style using the short Side Arm Outline Marker Lamp Set LDCC 2776 (Left) & LDCC 2777 (Right). Designed with a short straight arm for easy installation, this outline marker light set is the perfect choice for enhancing visibility and safety on the road.
Designed For:
Delivery Vans
Sprinter Vans
Straight Trucks
Box Trucks
Pick-Up Trucks
Buses
Tractor Trailers
RV's
What's Included:

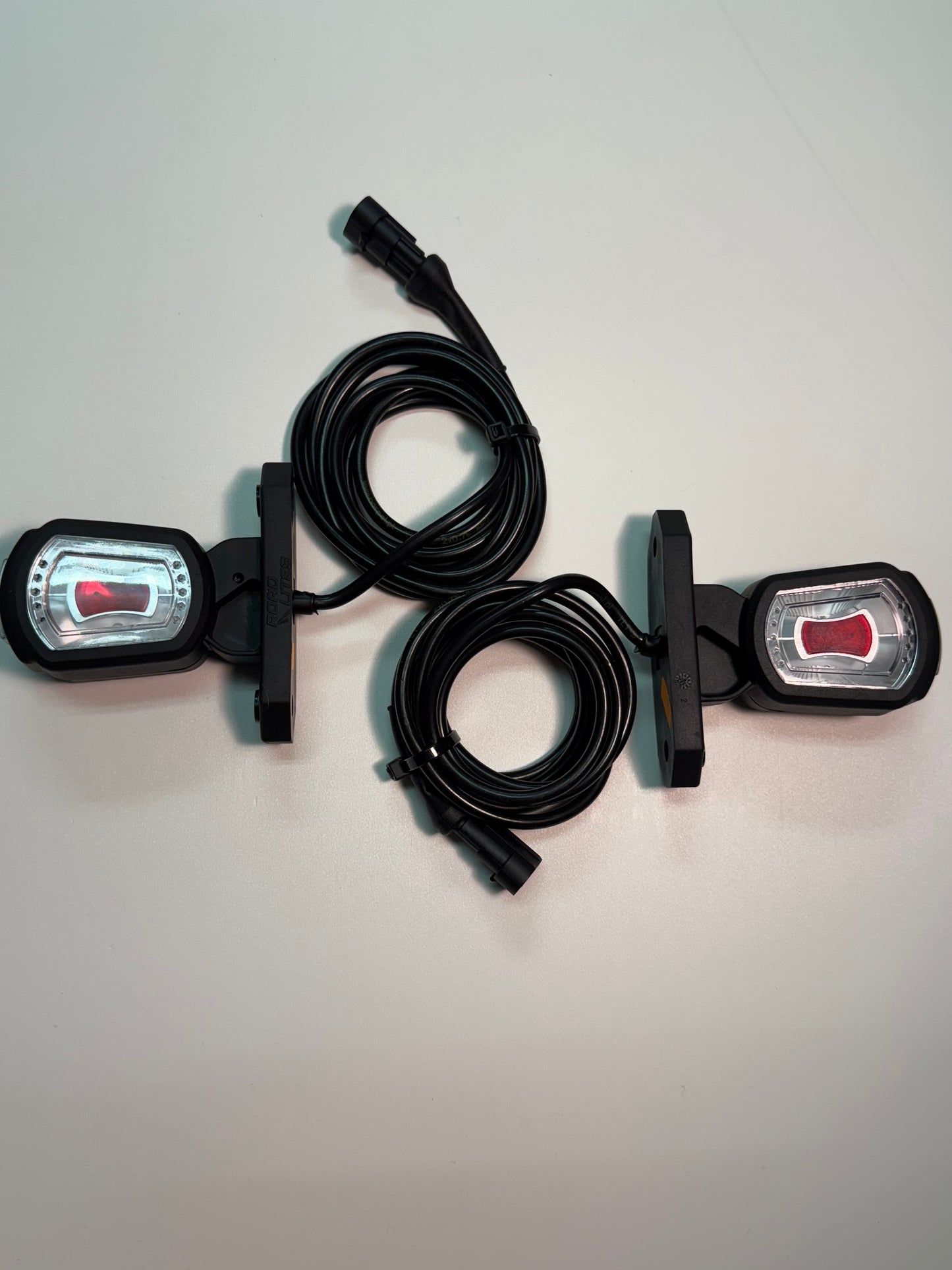

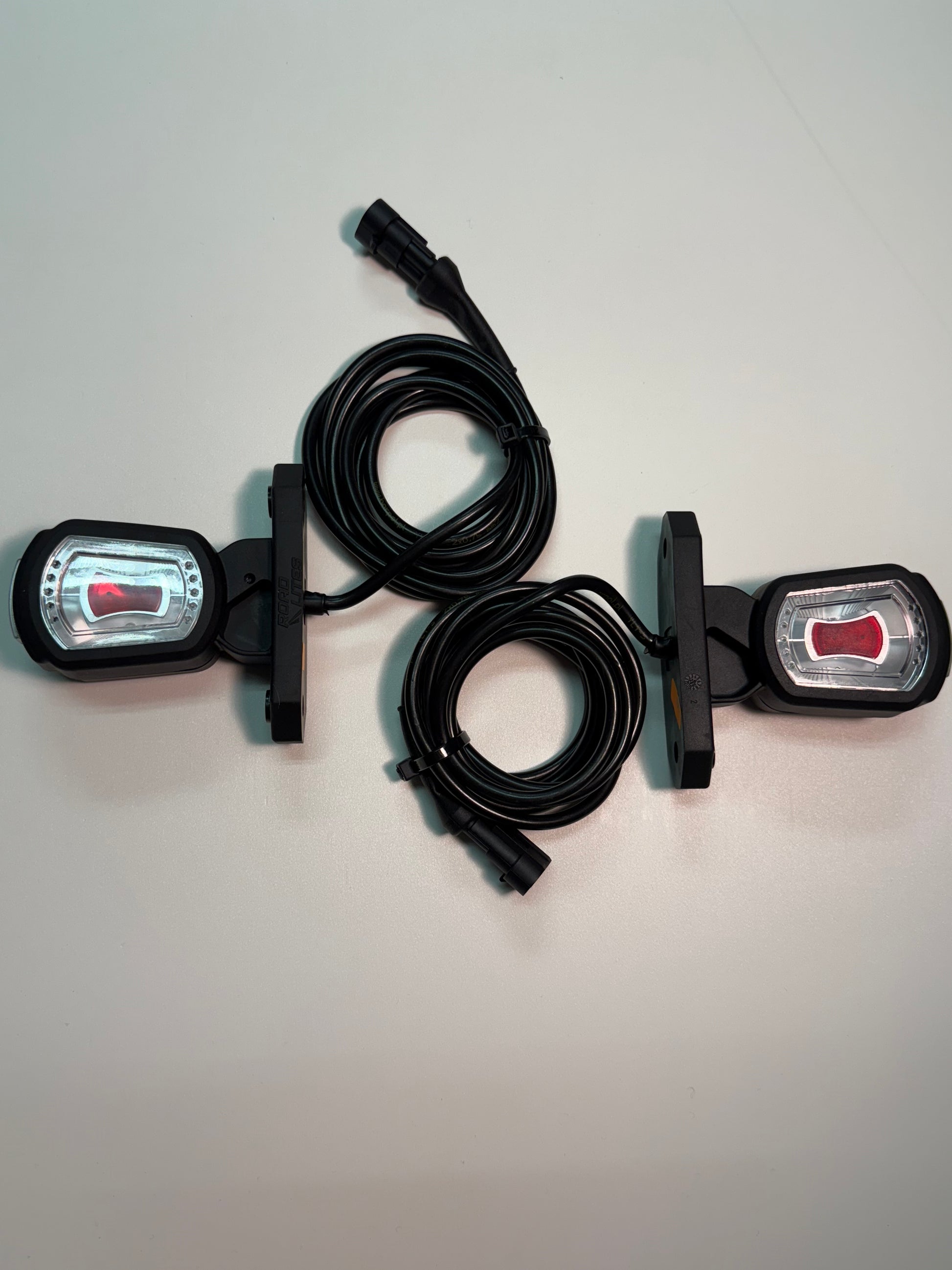

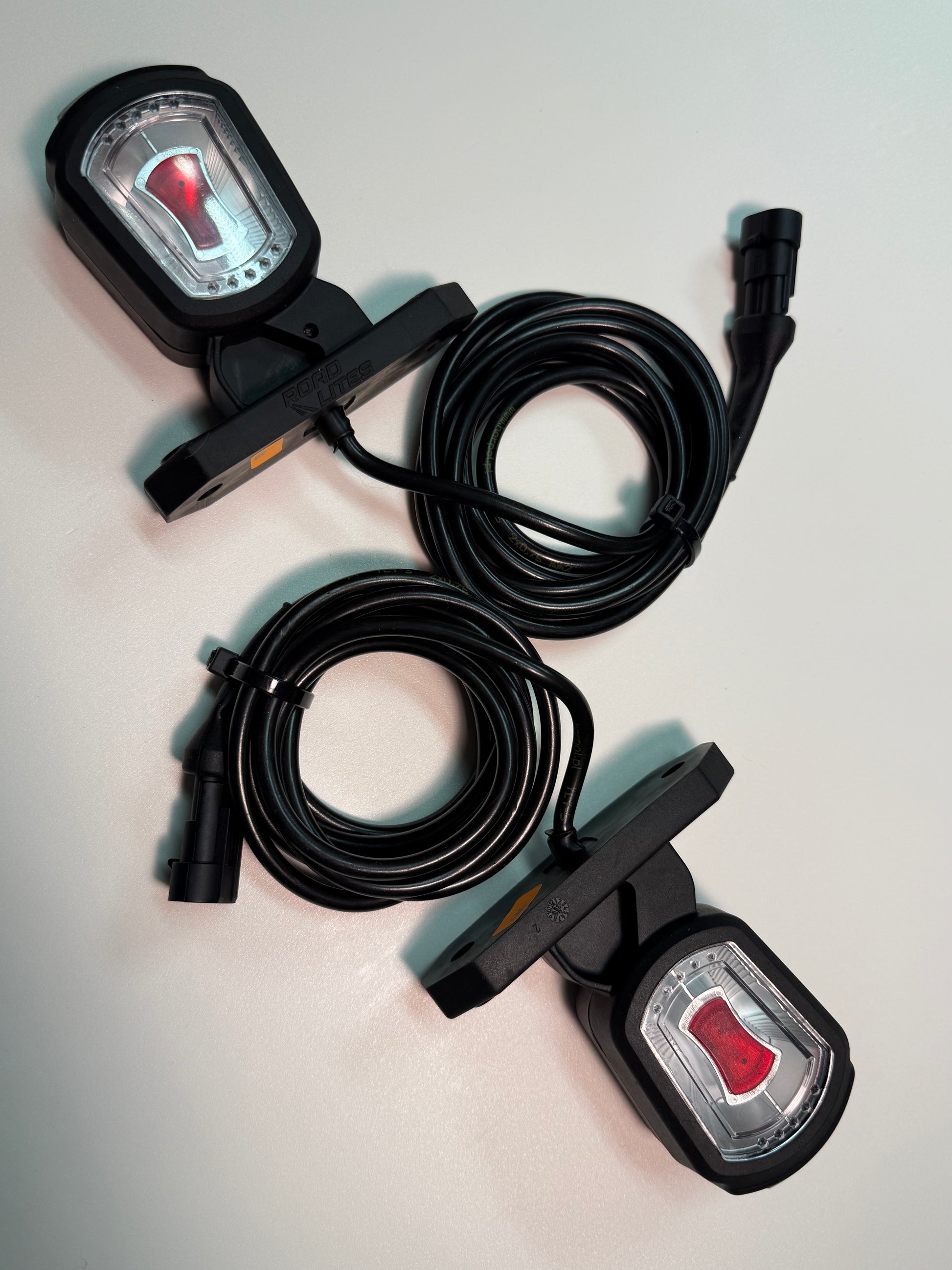

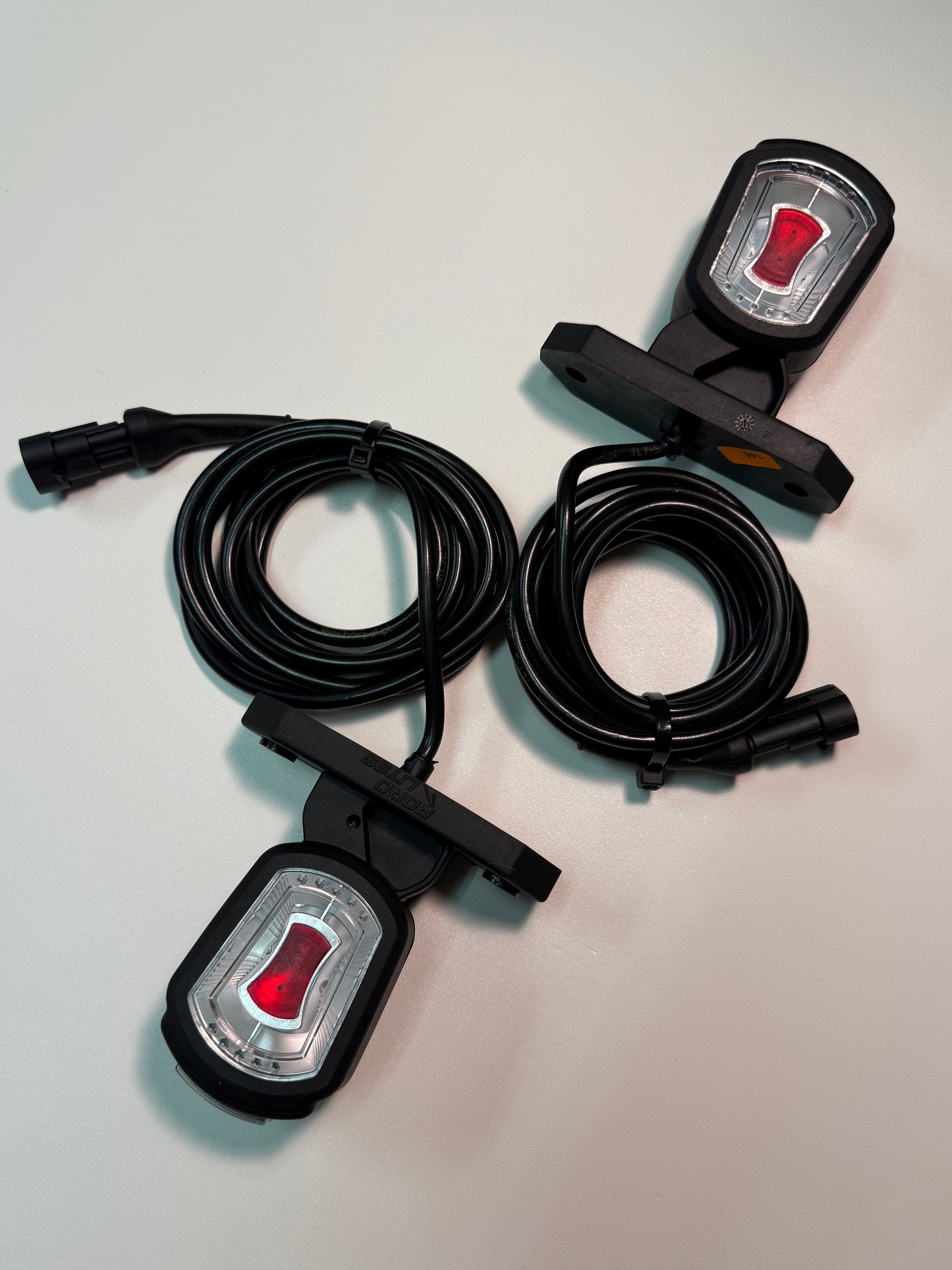

1× Left-side LED marker lamp
1× Right-side LED marker lamp

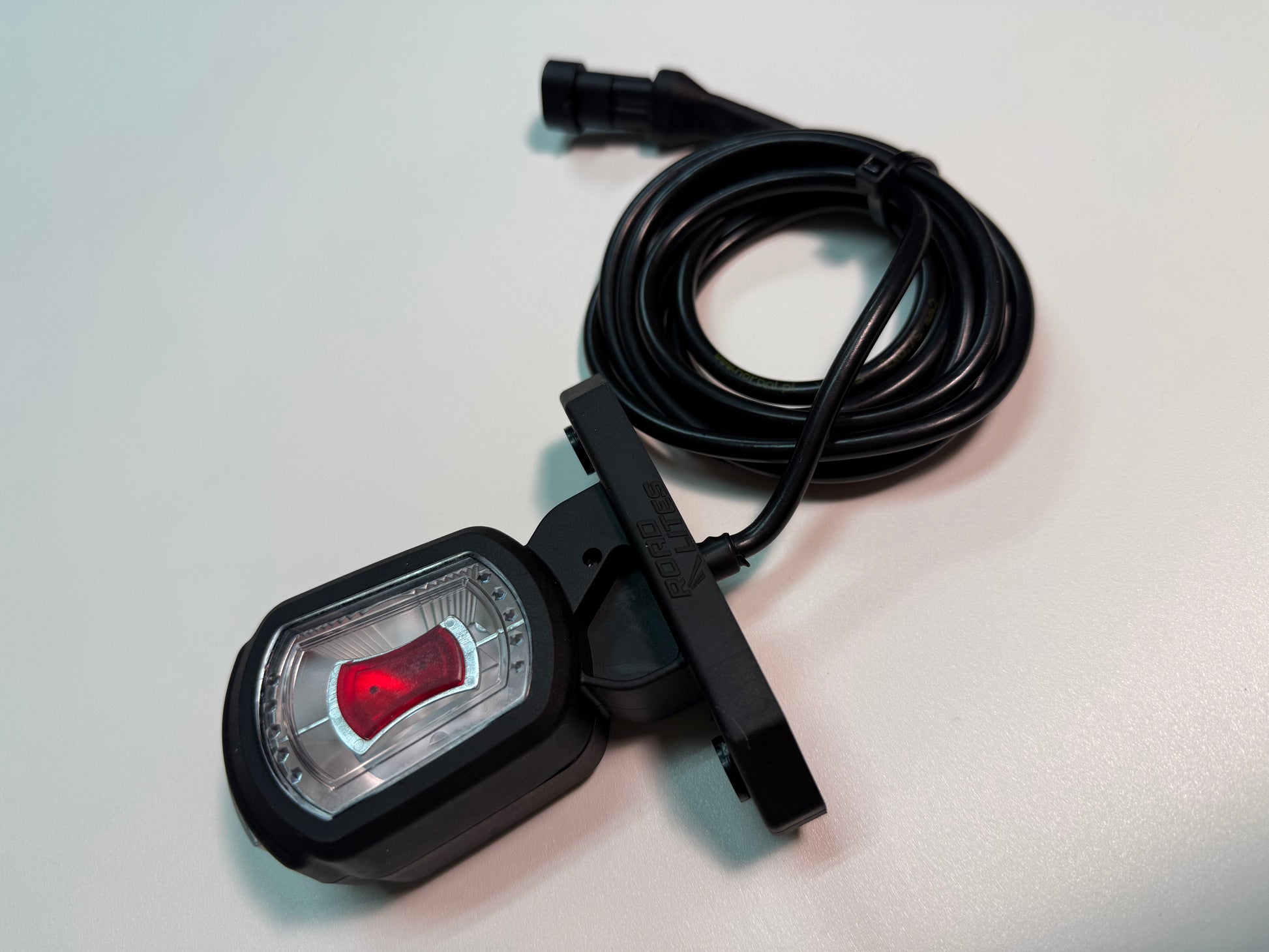

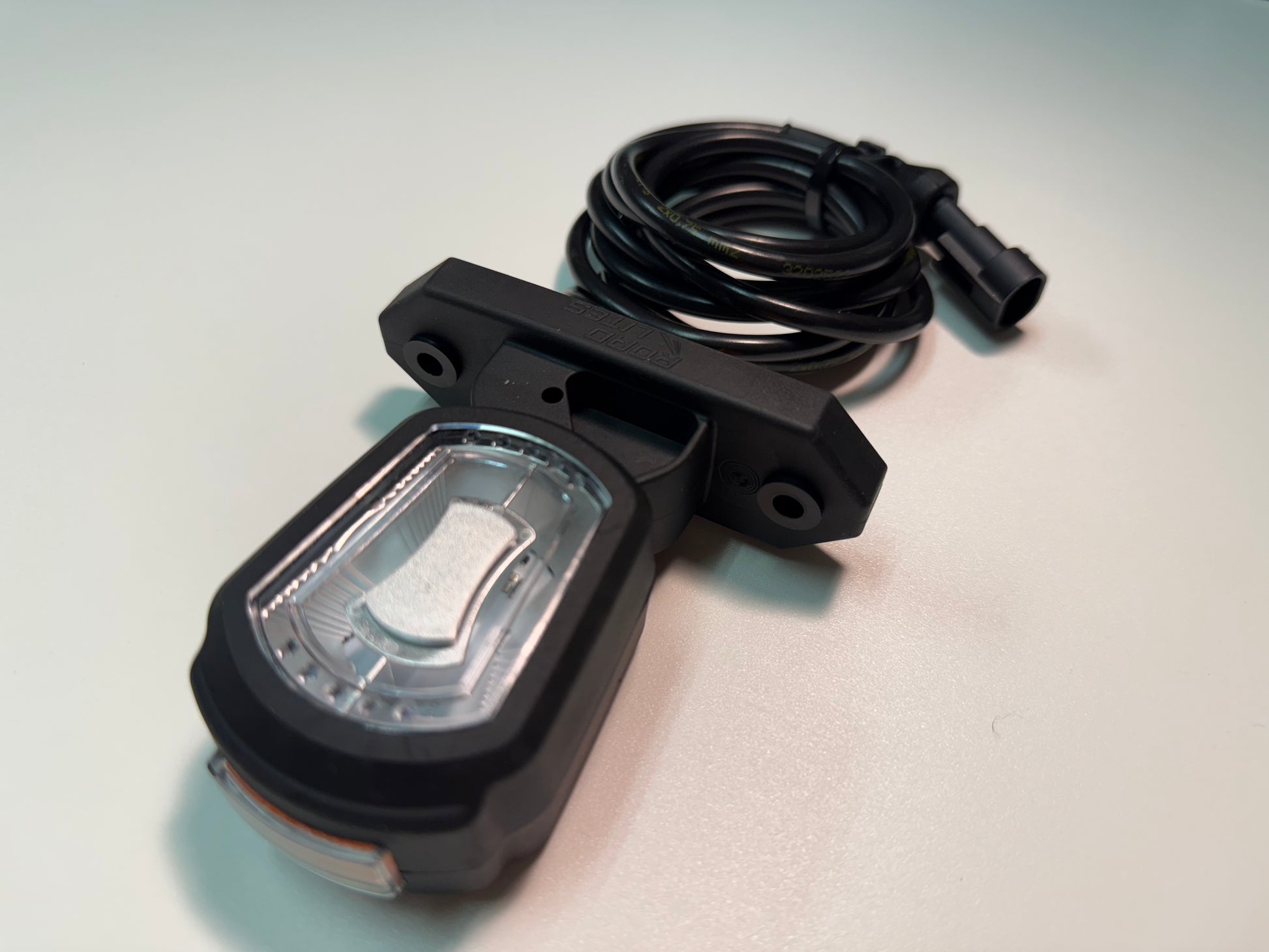

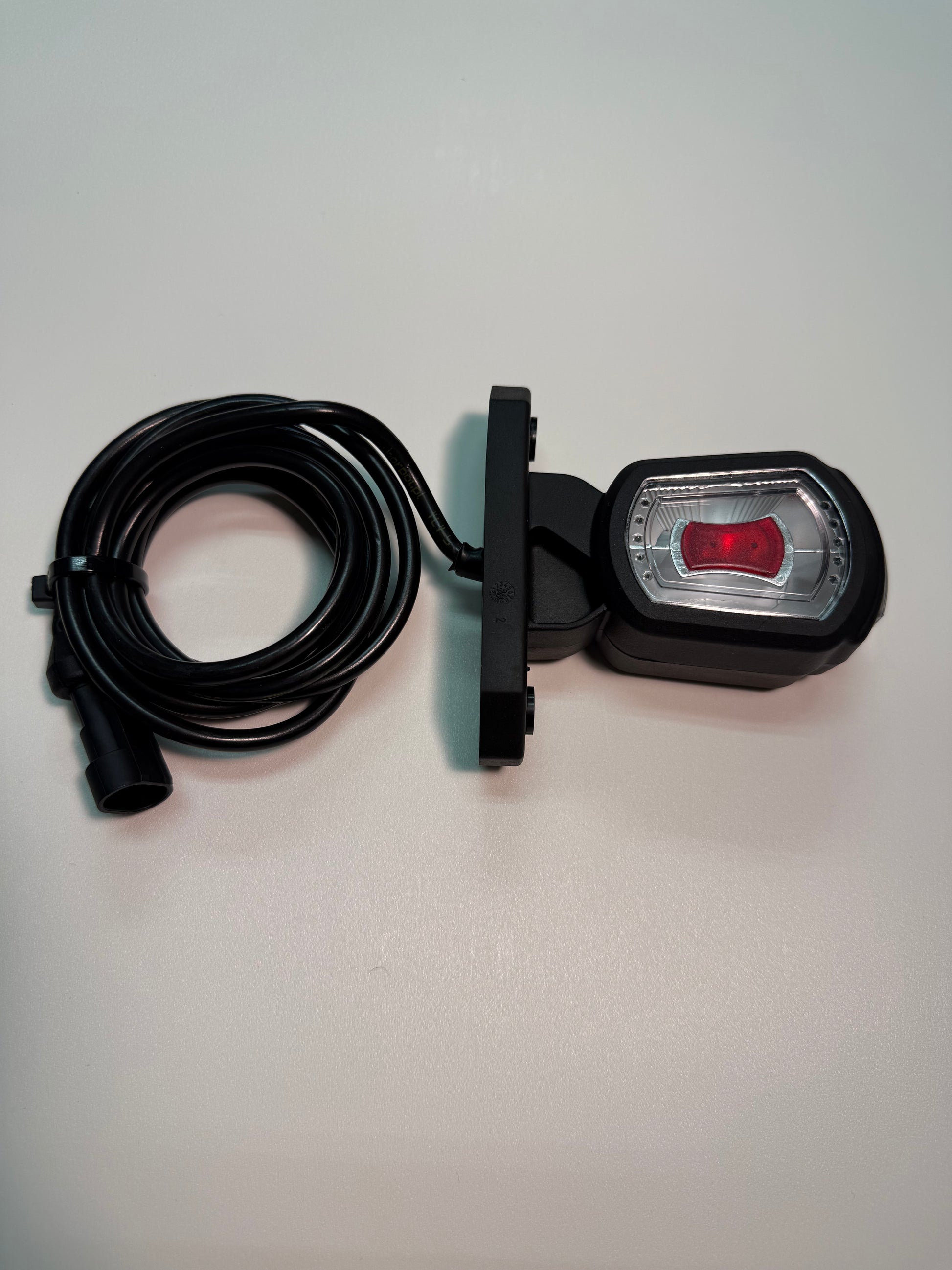

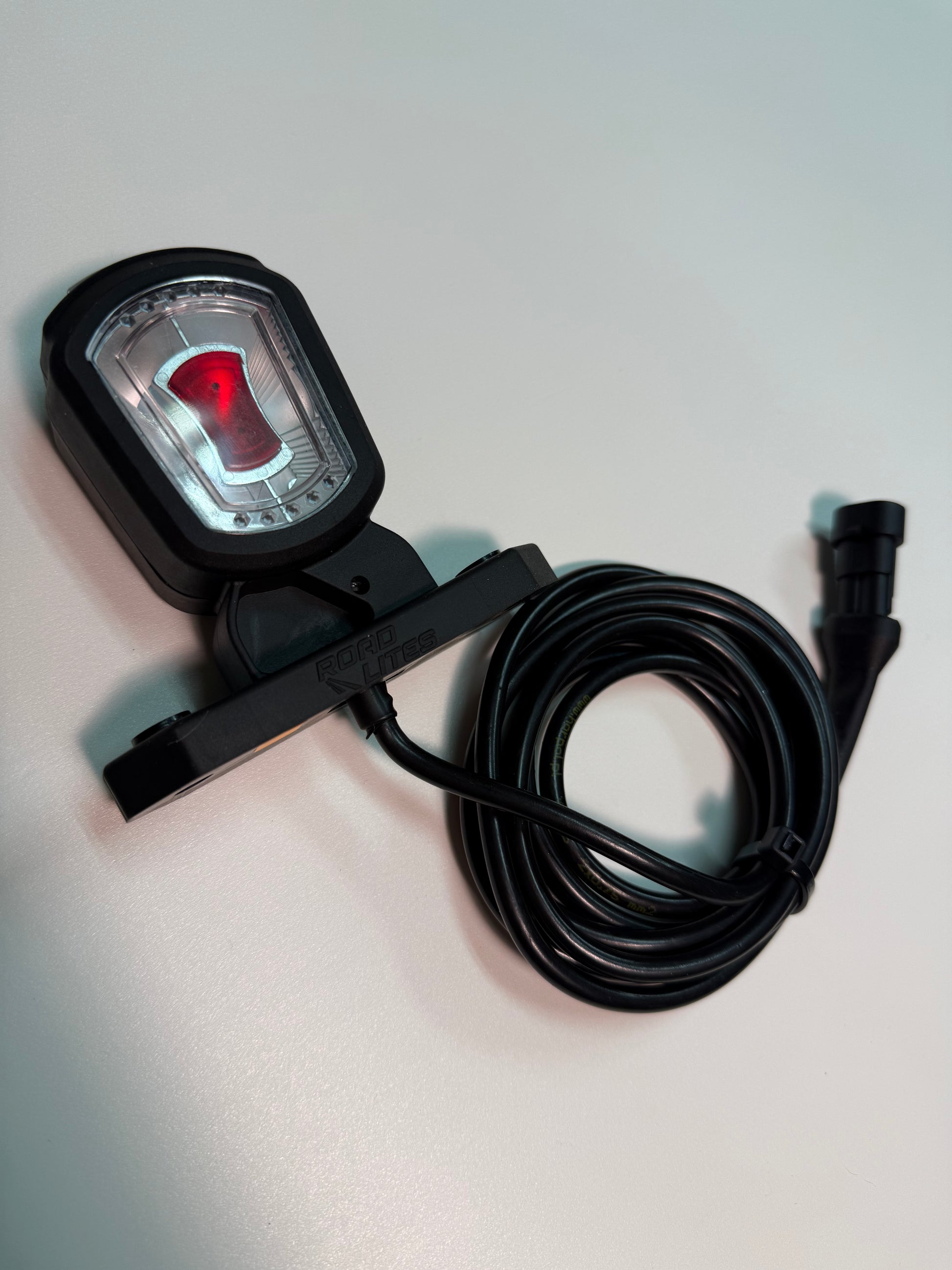

Each light comes with a 6 ft (1.83m) cable with optional SuperSeal connector for easy and secure installation OR Bare Wire Ends
Each lamp includes integrated front (white or amber choice of color), side (amber), and rear (red) position lights.

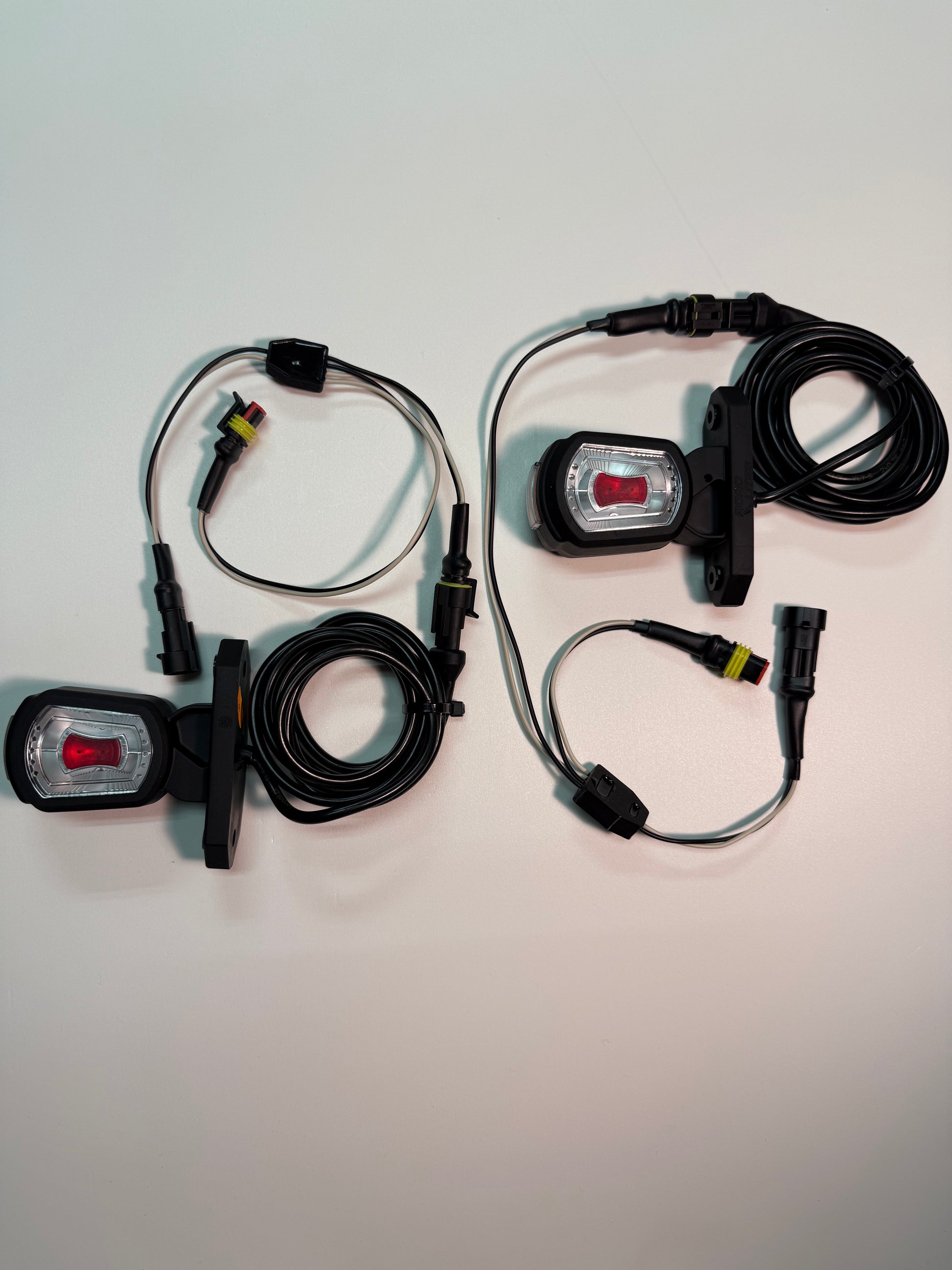

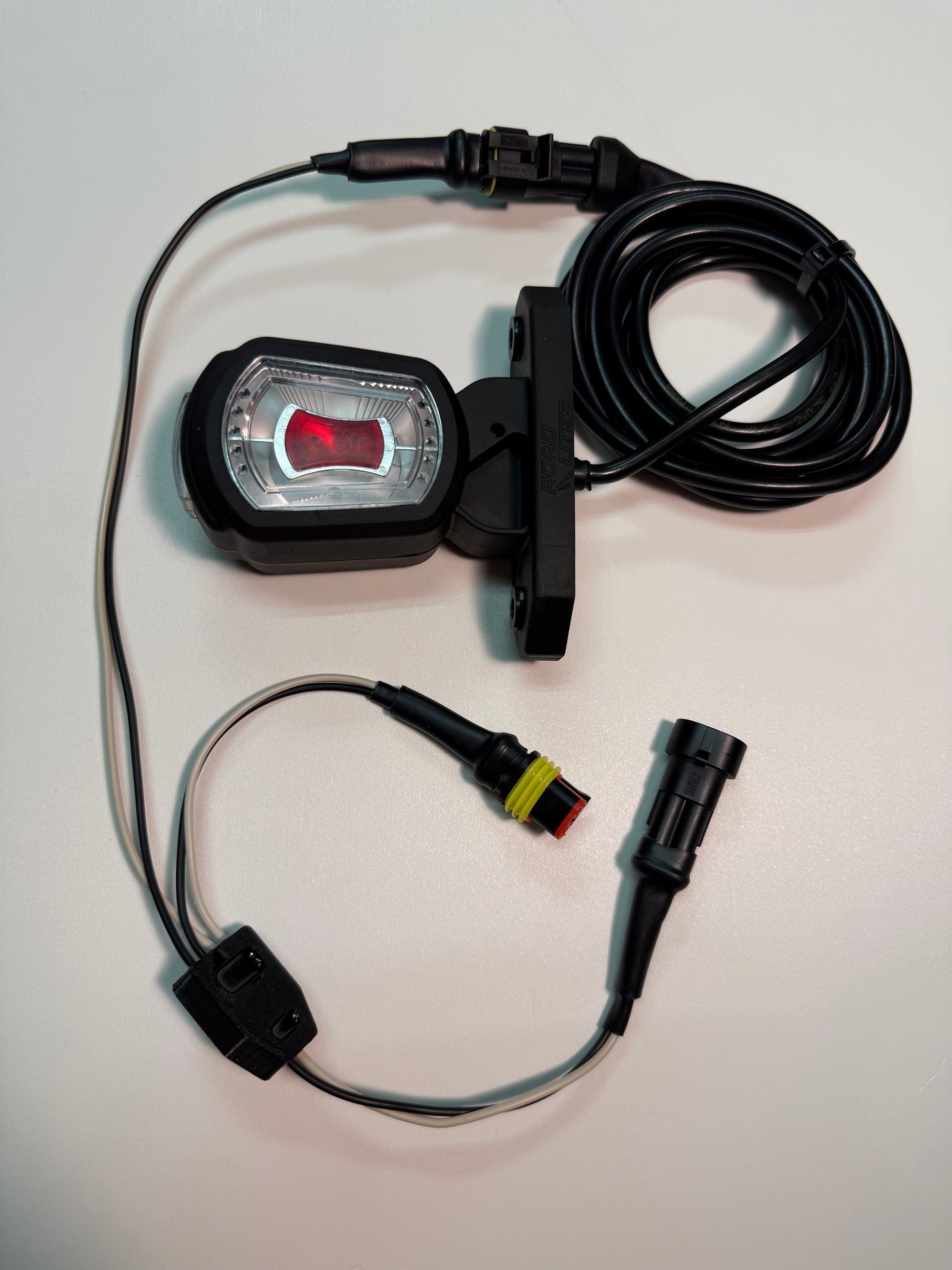

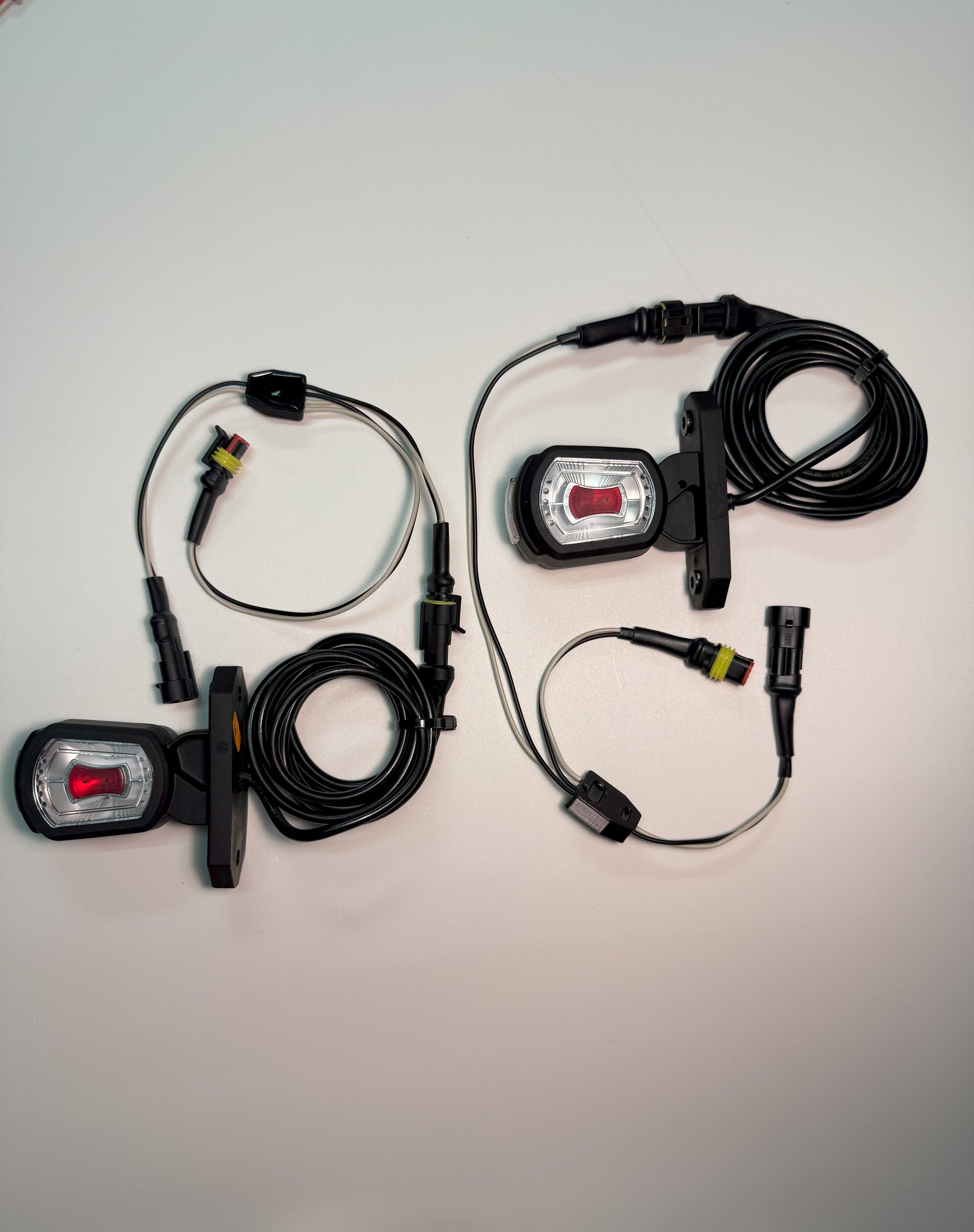

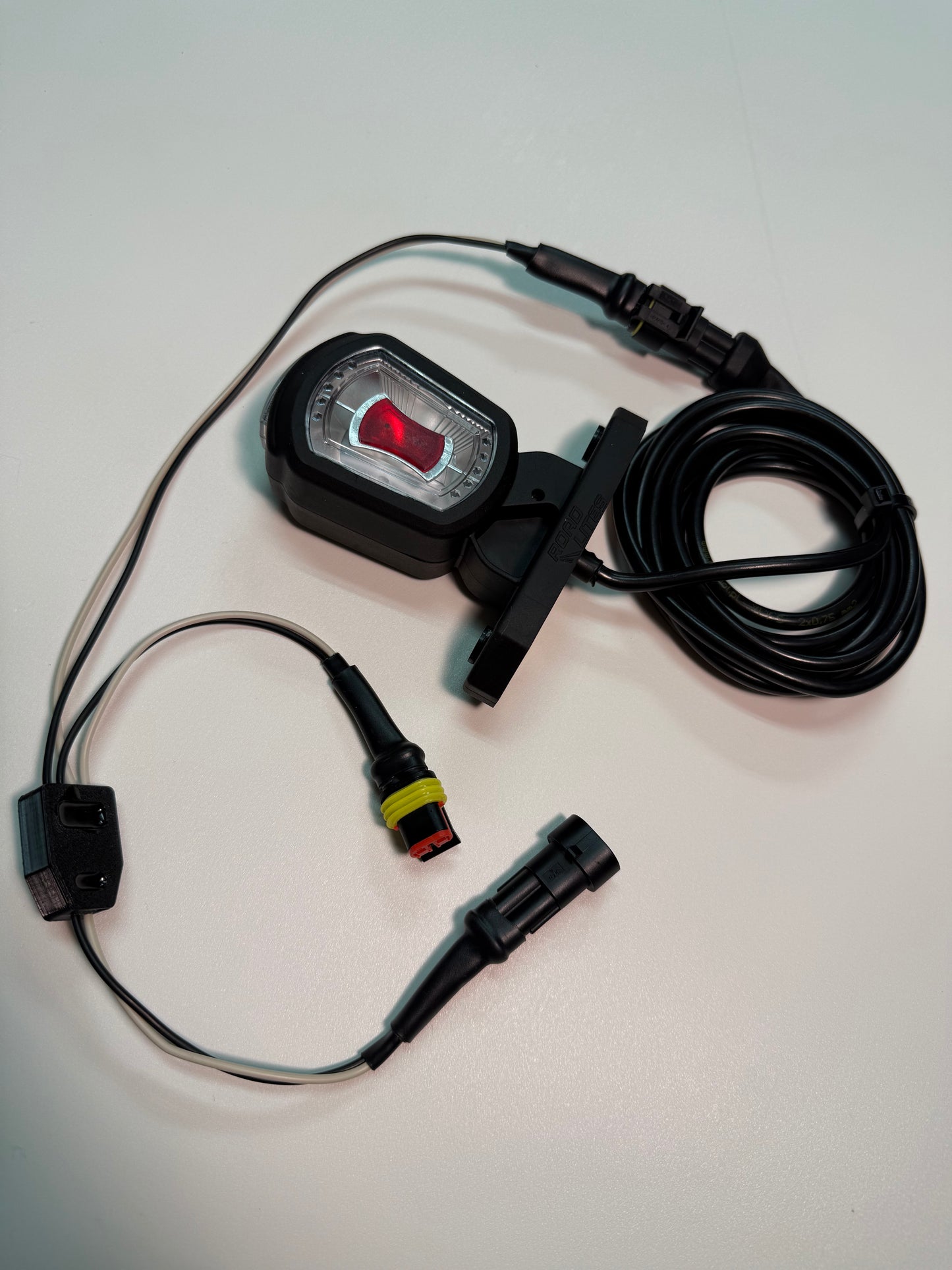

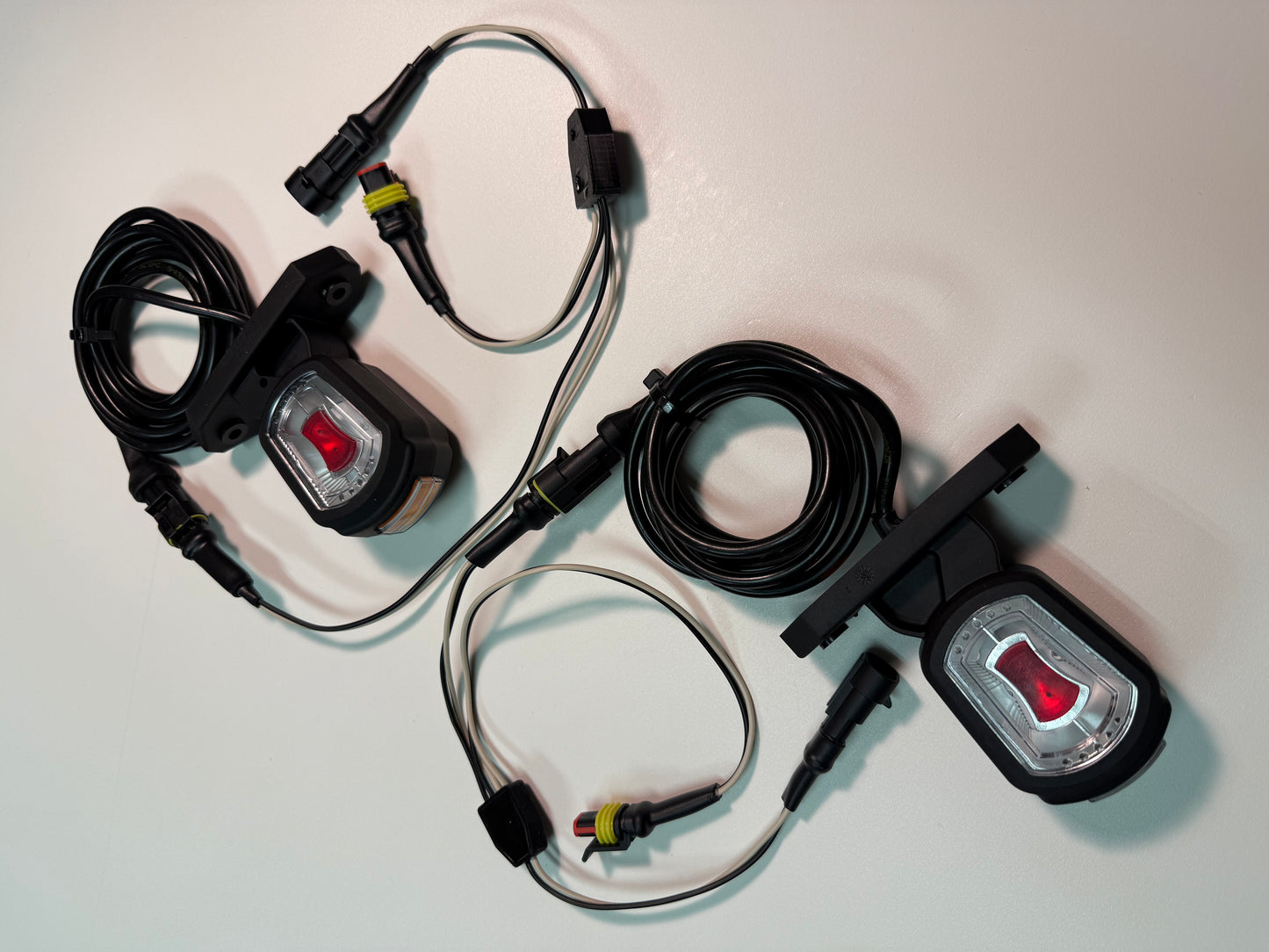

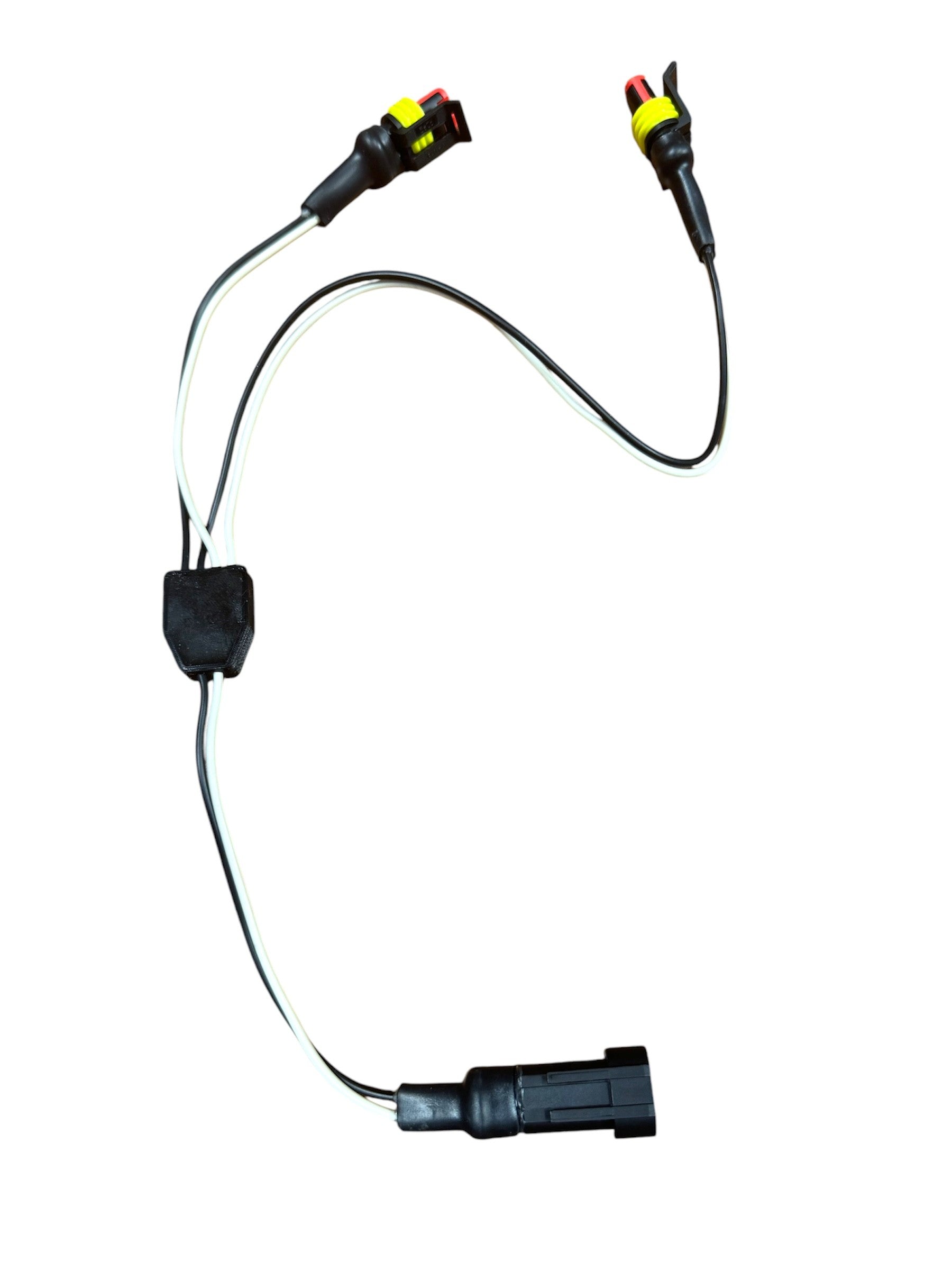

Optional adapter harnesses
What's NOT Included:
Mounting brackets
Key Features:
Light Functions:
Front Clearance Light: Enhances front visibility with bright, clear illumination
Side Marker Light: Provides side visibility to improve overall vehicle safety
Light Category: Marker light, suitable for various types of vehicles
LED Quantity: 7 LEDS
Supply Voltage: Operates seamlessly on both 12V and 24V electrical systems
Operating Temperature Range: Reliable in extreme temperatures from -22°F to +122°F (-30°C to +50°C)
Cable: Each lamp comes with a 6 ft (1.83 m) cable for easy and secure installation
TOP MOUNTING BRACKET NOT INCLUDED, SOLD SEPARATELY.
Side: Can be mounted on either the right or left side, offering flexibility in installation

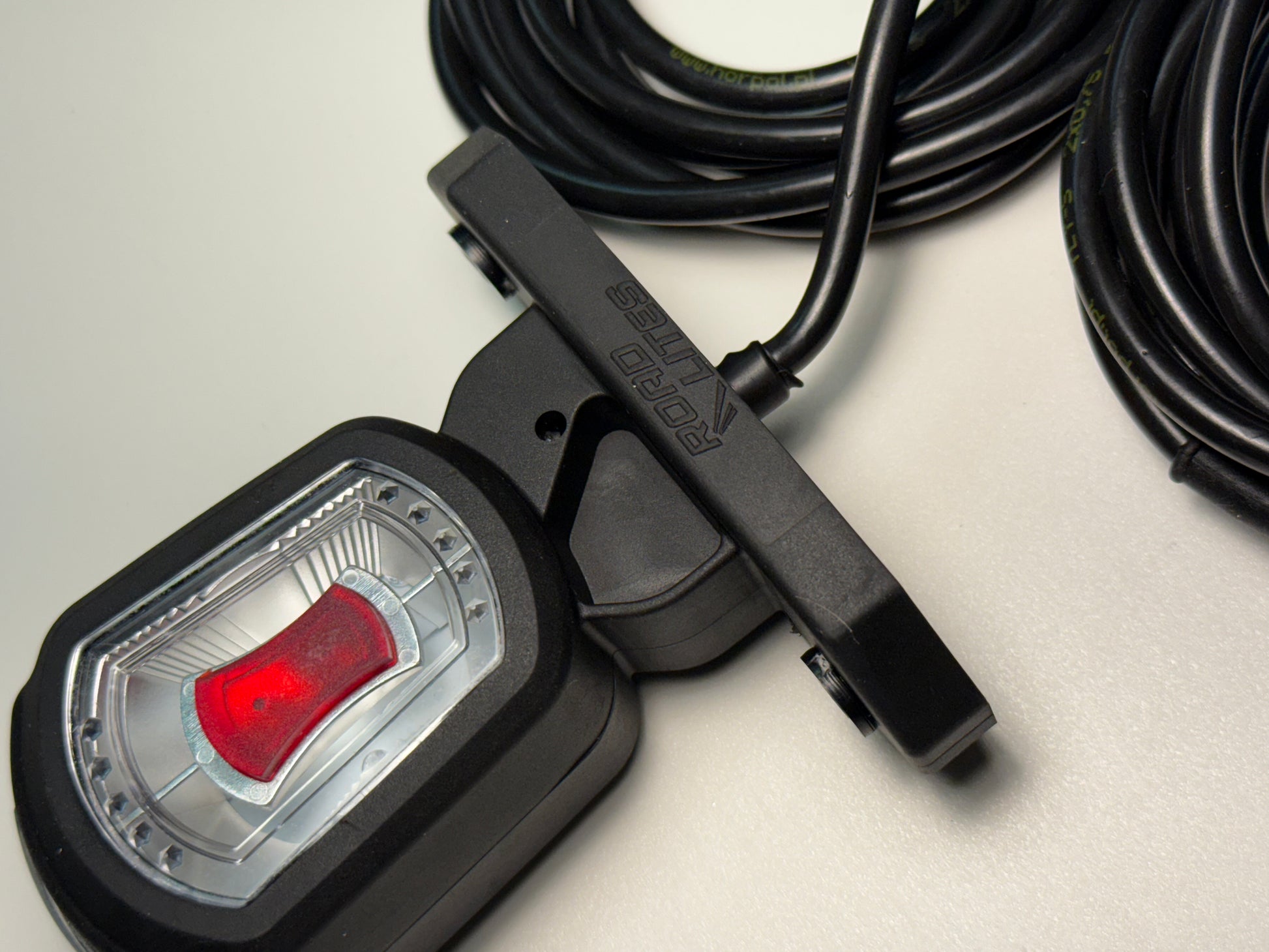

Arm: Includes a short arm for enhanced durability and positioning
LED Light: Yes, equipped with high-quality LEDs for long-lasting and energy-efficient performance
Flexible: Looks and feels like dense rubber, but is engineered from a specialized, high-grade heavy duty elastomeric polymer.
Impact Elasticity: It bends and flexes easily upon contact with branches, docks, or obstacles without snapping, then immediately springs back to its original shape.
IP 68 rated: Shockproof/Waterproof/dustproof
Overall Height: 4.13 in (105 mm)
Lamp Head Width: 1.46 in (37 mm)
Projection: 3.9 in (99 mm)
Mounting Hole Spacing: 3.07 in (78 mm)
Color: amber, red
2 wire connection: Power & Ground
Key Features:
Three-Functional Design: The LDCC 2776 and LDCC 2777 serve as a front position light (white), rear position light (red), and side marker light (amber), ensuring comprehensive visibility from all angles.
Advanced LED Technology: Equipped with high-quality LEDs, including 1 cool white LED (6500 K) for the front position light, 4 red LEDs for the rear position light, and 2 warm white LEDs (2700 K) for the side marker light, this lamp delivers bright and efficient illumination.
Universal Compatibility: Operating seamlessly on both 12V and 24V systems, the LDCC 2776 adapts to a variety of vehicles and trailers, providing versatility and convenience.
Easy Installation: With a short straight arm design and included round wire 6 ft (1.83 m) Cable, installation is quick and hassle-free, allowing you to get back on the road in no time.
Upgrade your vehicle with the LDCC 2776 and LDCC 2777 Three-Functional Outline Marker Lamp set and experience enhanced visibility and safety on every journey. Trust in its reliability and advanced LED technology to illuminate your path with confidence.
