Work light RED SPOT RAPTOR (focused beam, 650 lm) LRD 3186

The LRD 3186 RAPTOR RED SPOT from Horpol is a professional-grade LED safety light engineered to enhance visibility and prevent accidents in high-risk environments. Designed for warehouses, logistics hubs, and forklift operations, this powerful red spot projector clearly marks hazardous zones and vehicle movement paths, giving pedestrians and operators crucial reaction time.

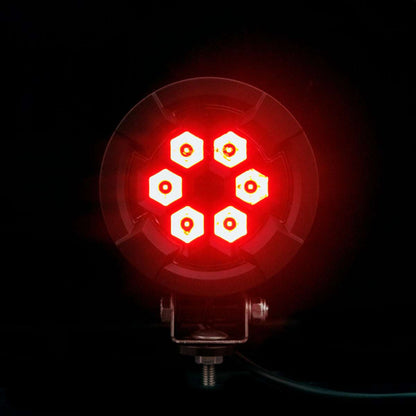

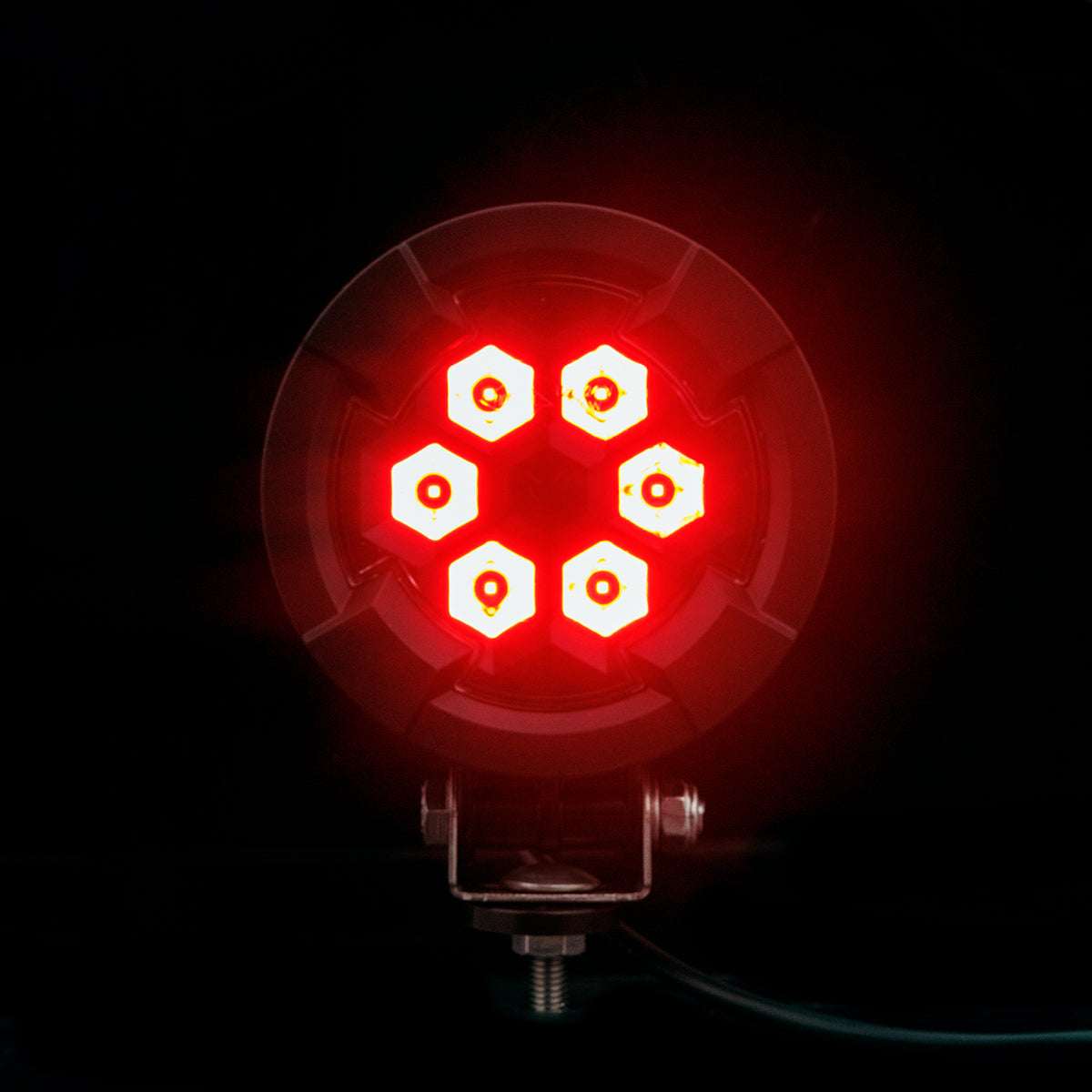

Using advanced 12 W LED technology with 6 high-performance LEDs, the lamp produces a strong 650-lumen focused red beam at a 630 nm wavelength. The intense red projection is highly visible on warehouse floors and industrial surfaces, making it an essential safety solution for collision prevention and pedestrian awareness.

Compatible with both 12 V and 24 V electrical systems, the RED SPOT lamp is suitable for a wide range of warehouse and industrial vehicles. Installation is simple and flexible — it can be mounted on either the left or right side of the vehicle, and the integrated 1.5 m cable allows convenient connection. The adjustable mounting bracket enables precise beam alignment to meet specific operational requirements.

Built to withstand demanding environments, the durable housing protects against mechanical damage, while the rear aluminum heat sink ensures effective thermal management. A pressure-equalizing membrane prevents internal condensation and stabilizes operating temperature. The impact-resistant polycarbonate lens guarantees long-lasting reliability.

With IP68 protection, full dust and water resistance, and R10 homologation for electromagnetic compatibility, the LRD 3186 RAPTOR RED SPOT delivers dependable performance in temperatures from -30°C to +50°C.

Choose visibility that protects people and equipment — because safety starts with clear warning signals.

Key Features:

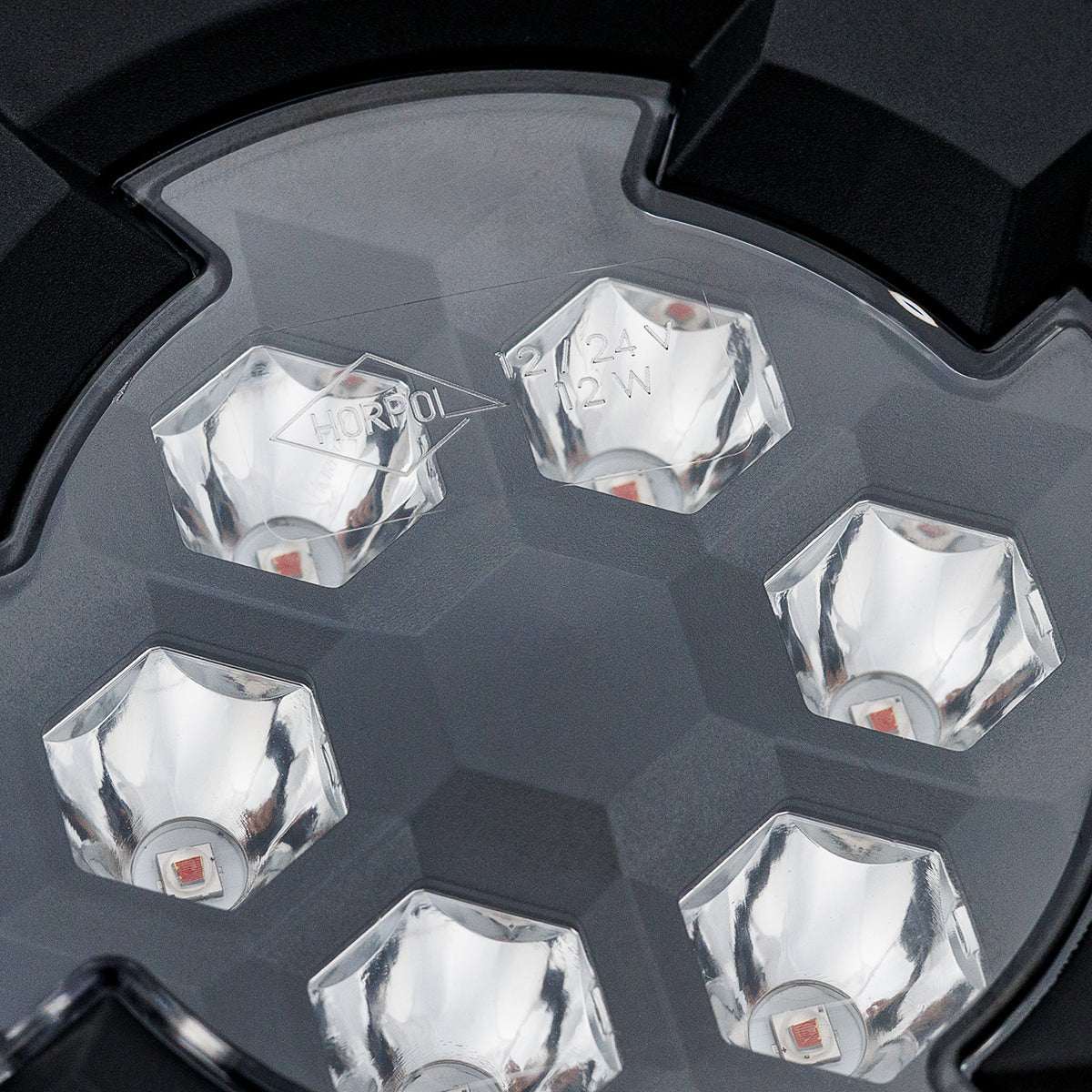

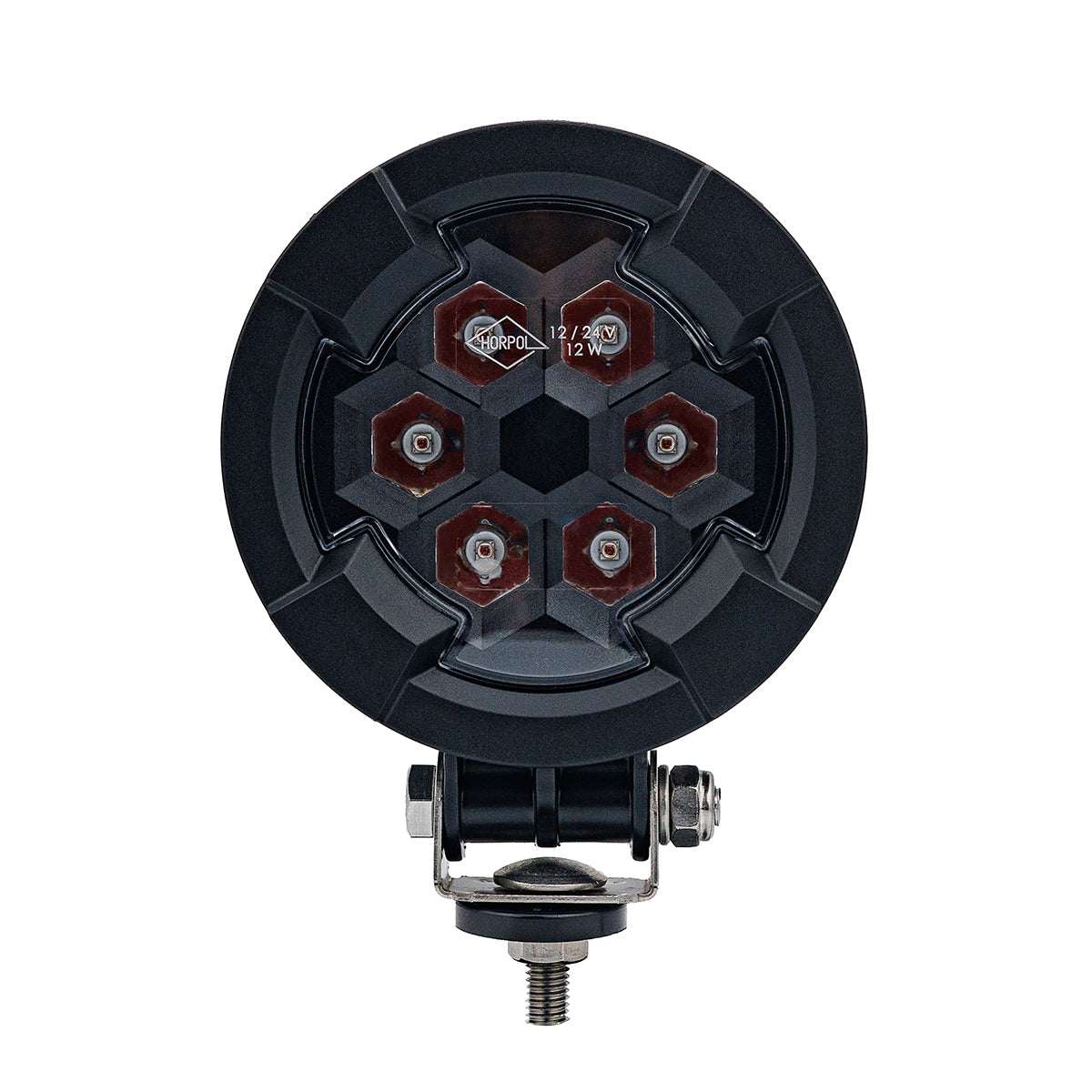

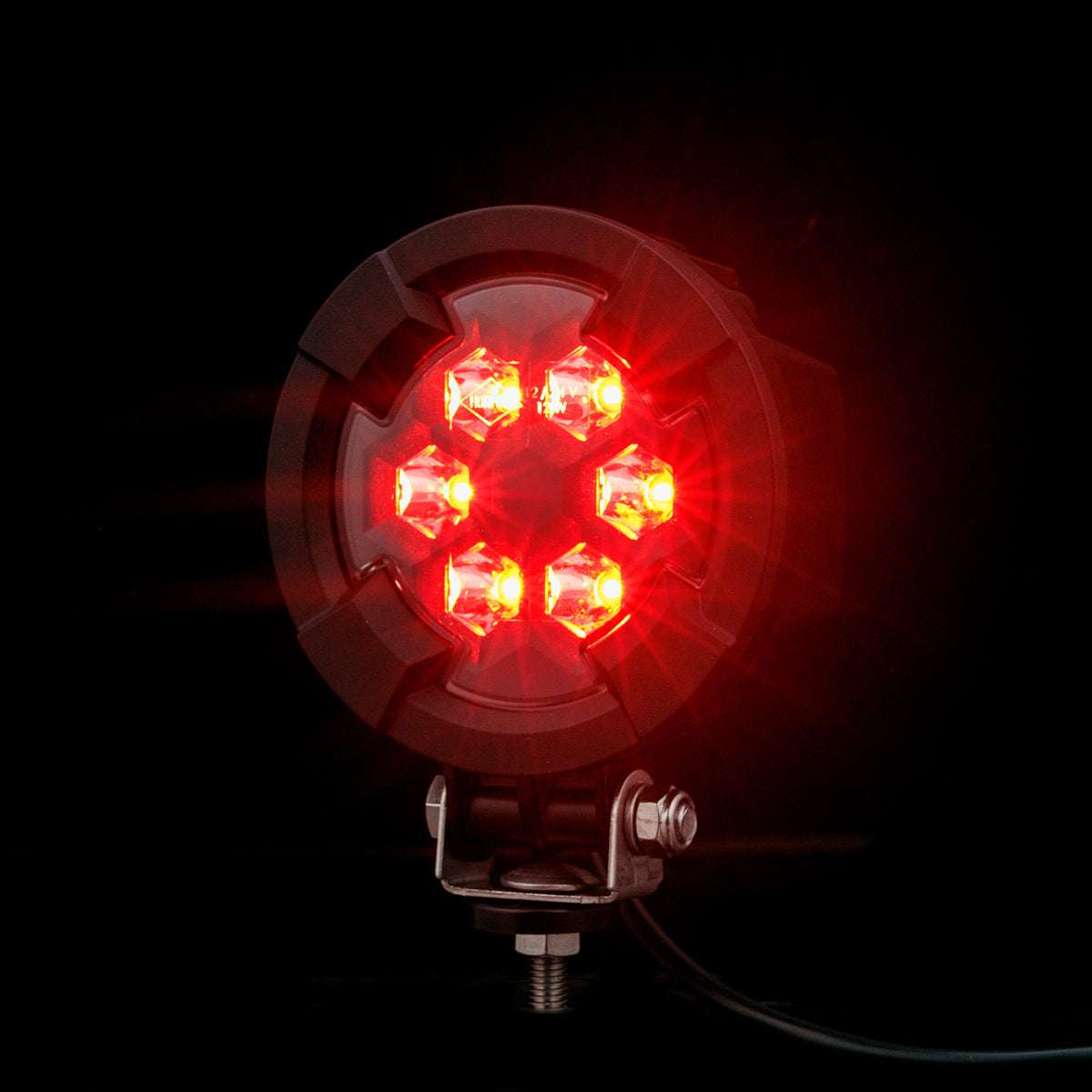

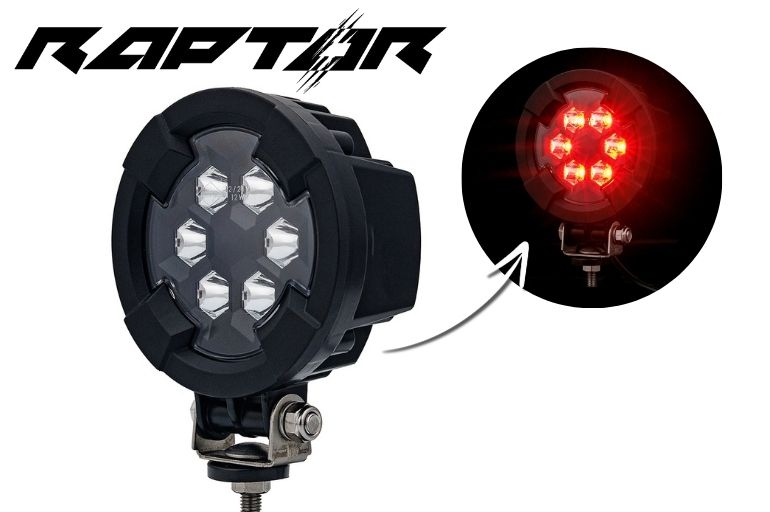

• 6 high-performance LEDs producing a focused red safety spot
• 650 lm luminous flux with 630 nm wavelength
• Ideal for forklift and warehouse collision prevention
• Compatible with 12 V and 24 V systems

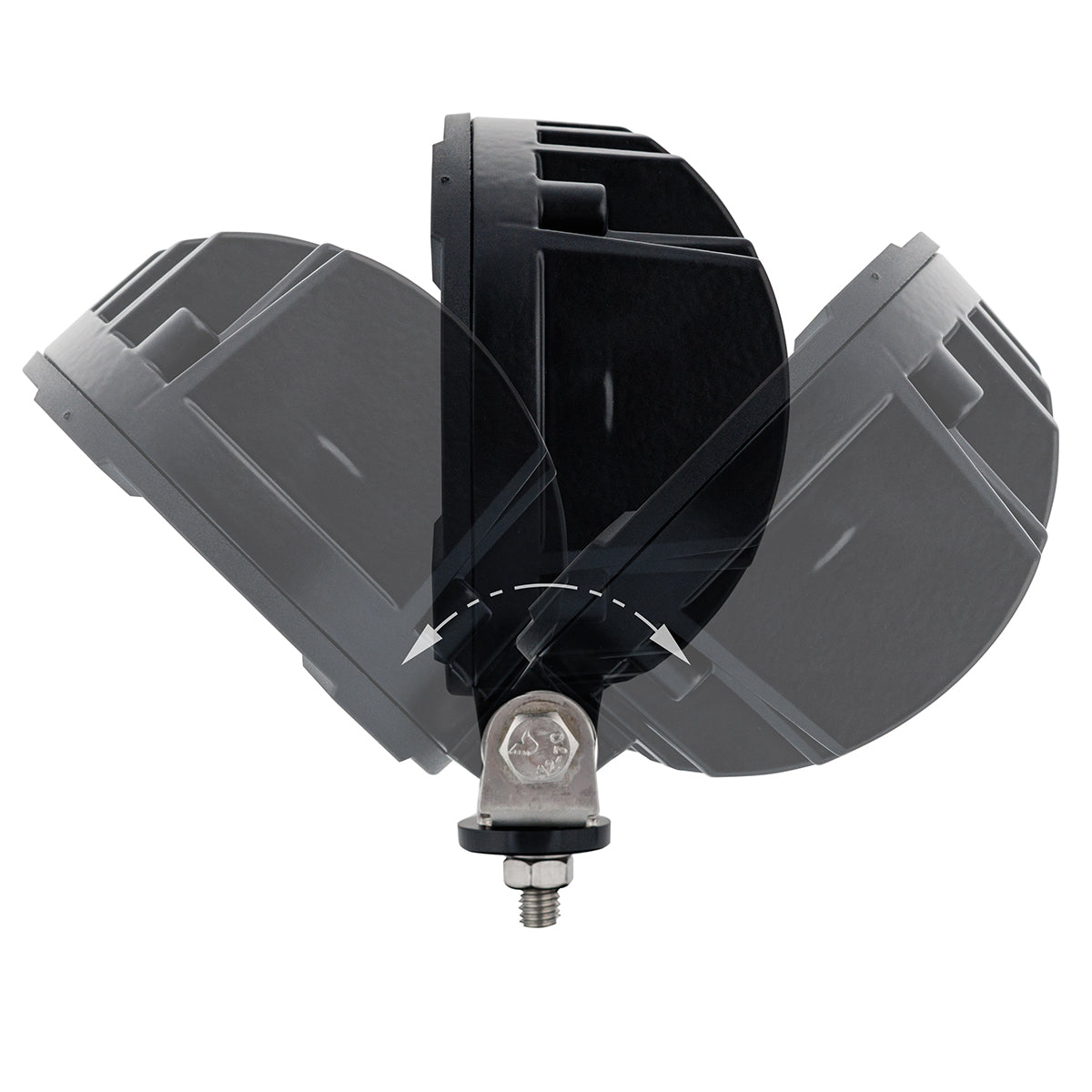

• Adjustable mounting bracket for precise beam positioning
• Mountable on left or right side (universal fit)
• Durable housing resistant to mechanical damage
• Rear aluminum heat sink for efficient heat dissipation
• Pressure-equalizing membrane to prevent condensation
• Impact-resistant polycarbonate lens
• IP68-rated – fully dustproof and waterproof
• R10-approved for electromagnetic compatibility

Specifications:

• Light category: Working / safety light
• Light source: LED
• LED quantity: 6
• Luminous flux: 650 lm
• Light colour: Red
• Wavelength: 630 nm

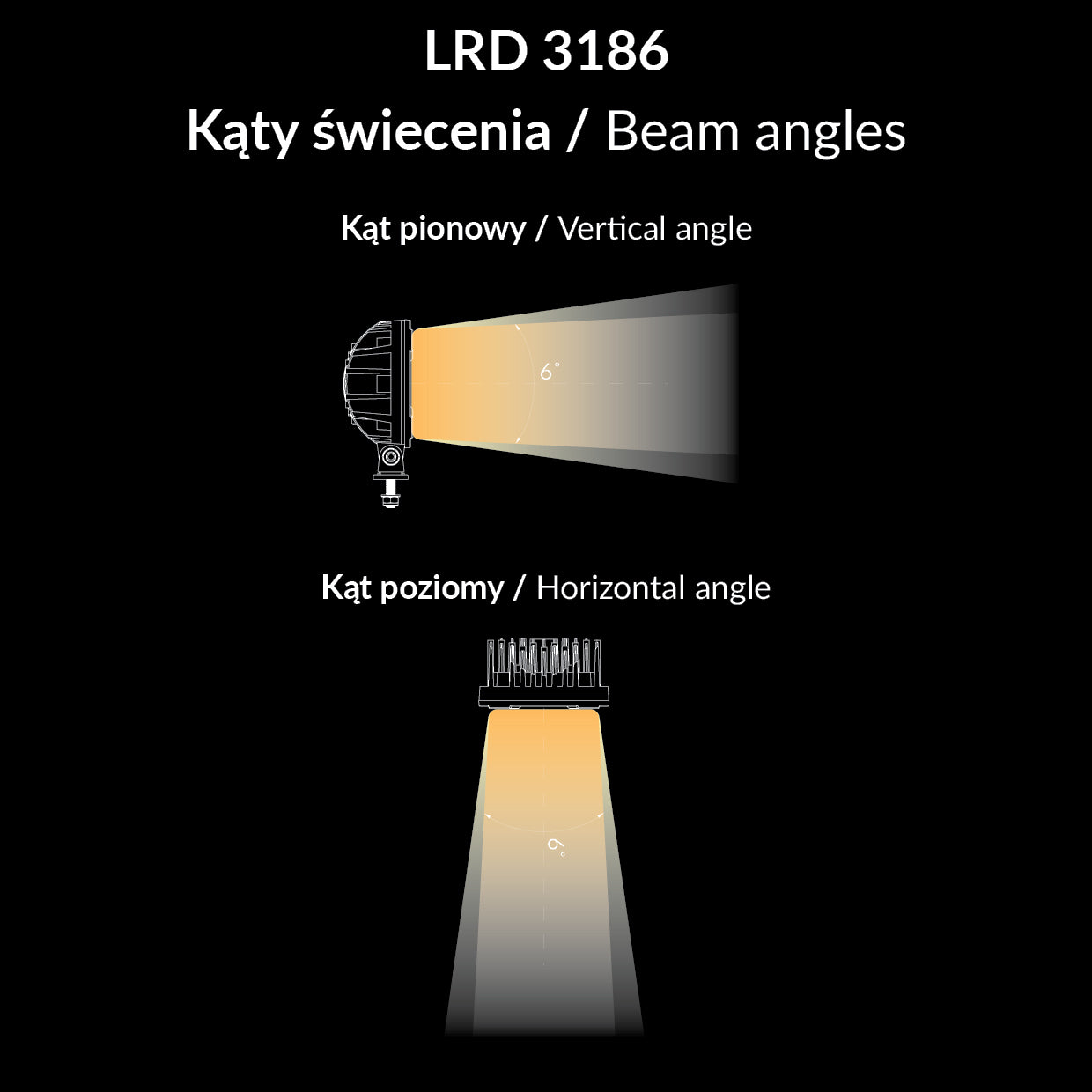

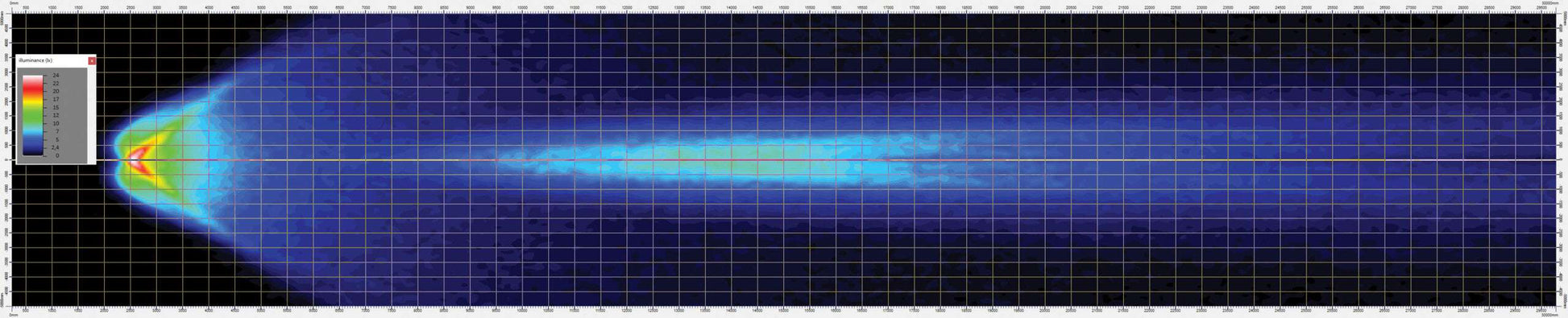

• Beam type: Focused
• Power rating: 12 W
• Supply voltage: 12/24 V
• Ingress protection rating: IP68
• Operating temperature range: -30°C to +50°C
• Cable: 2 × 0.75 mm²
• Cable length: 1.5 m
• Mounting side: Universal
• Light group: HOR 156

Ideal Applications:

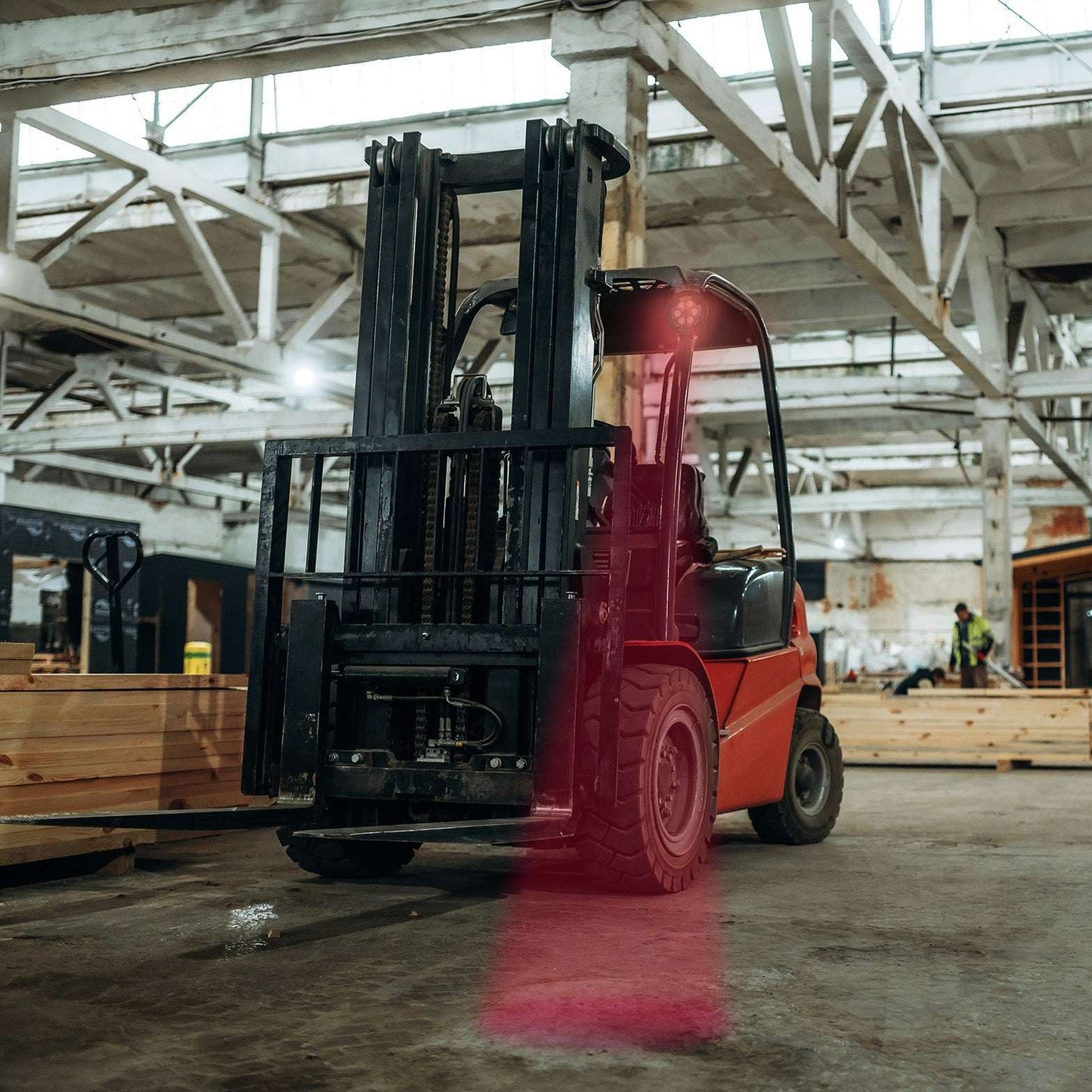

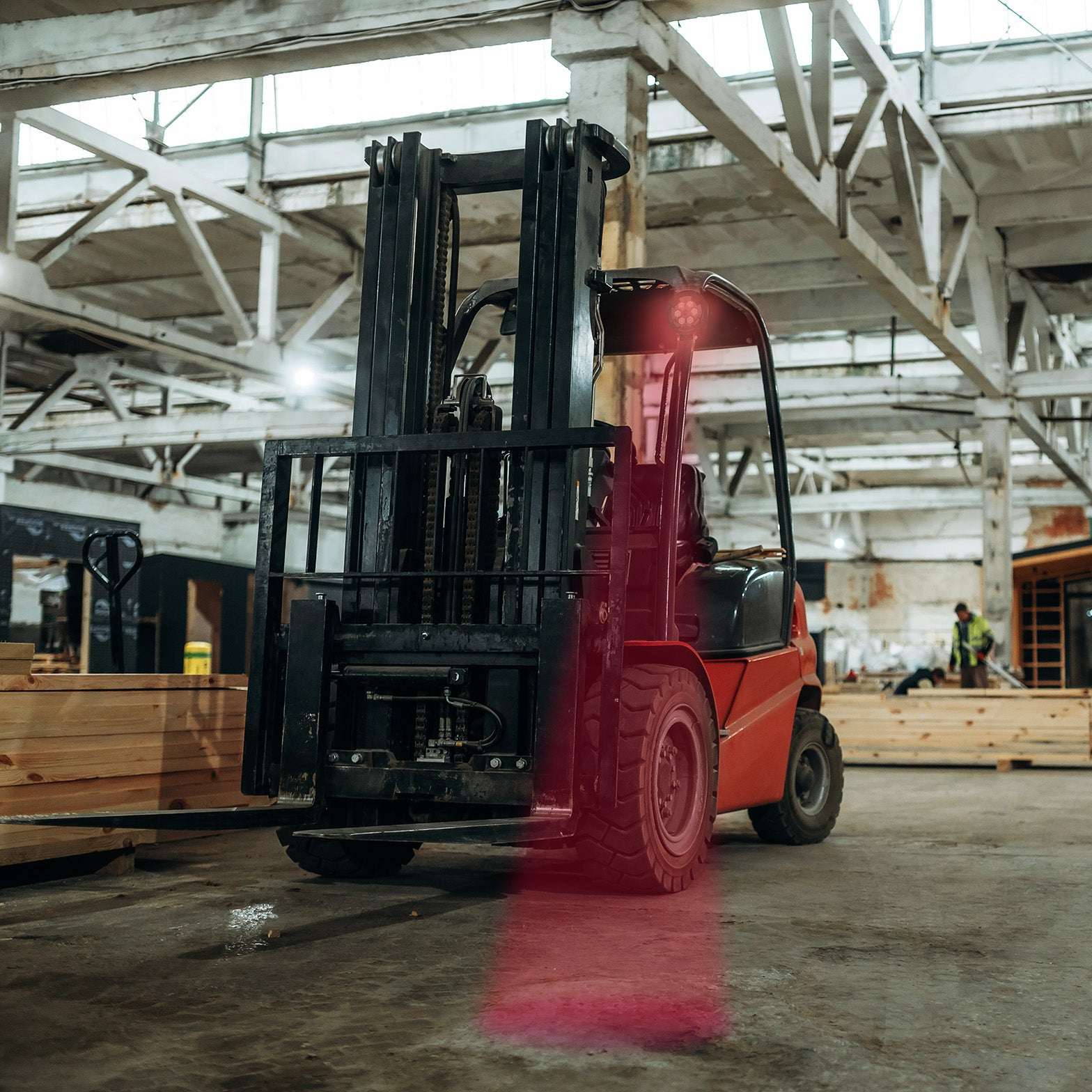

• Forklifts – marking hazardous zones and travel paths
• Warehouses and logistics centers
• Industrial facilities requiring enhanced pedestrian safety
