Work Light RAPTOR (focused light, 5500 lm) LRD 3169

The LRD 3169 RAPTOR LED work light is built for professionals who require uncompromising performance, durability, and safety. Designed for agriculture, construction, heavy transport, and specialist vehicles, this high-output work lamp delivers exceptional brightness in the most demanding environments.

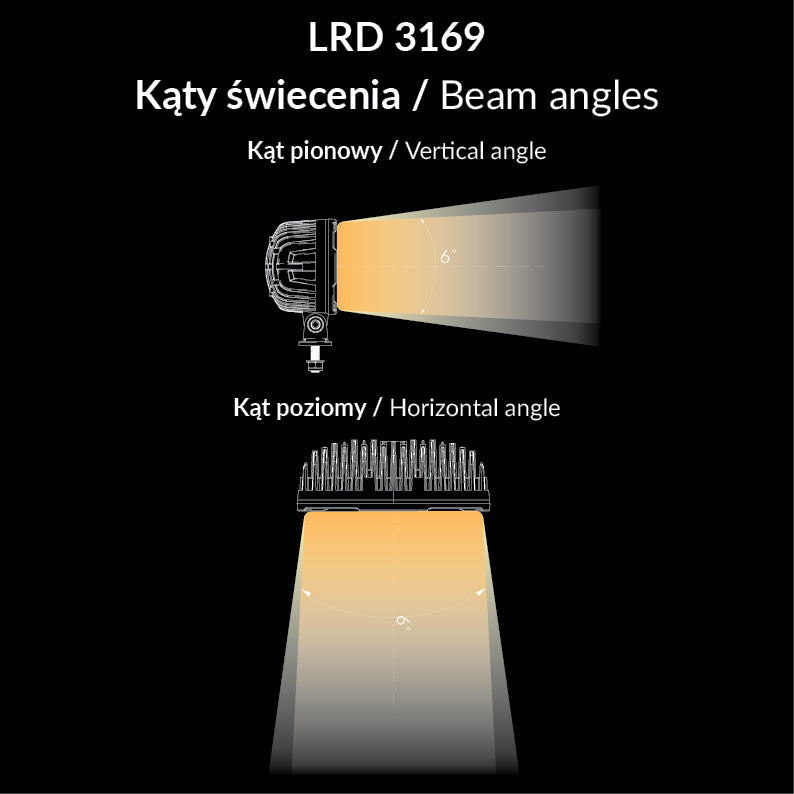

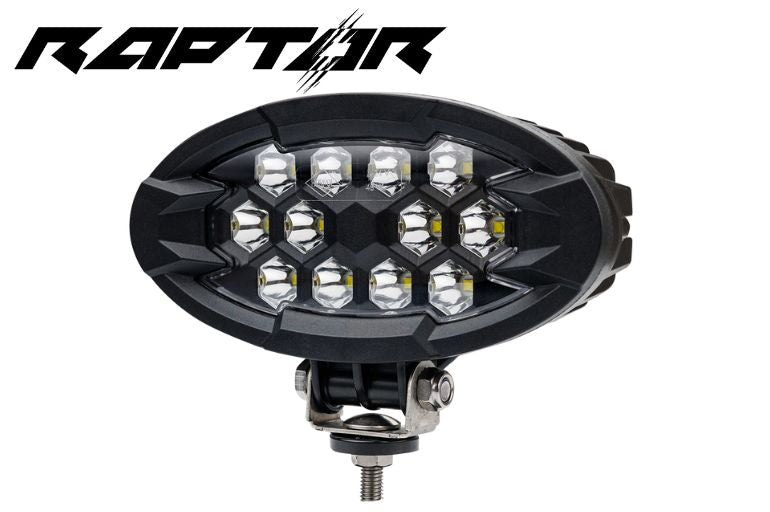

Its oval housing with a distinctive black grille creates a focused, concentrated beam pattern that illuminates the work area with precision while minimizing glare for the operator. Whether operating in the field, on-site, or roadside, the LRD 3169 ensures superior visibility exactly where it’s needed.

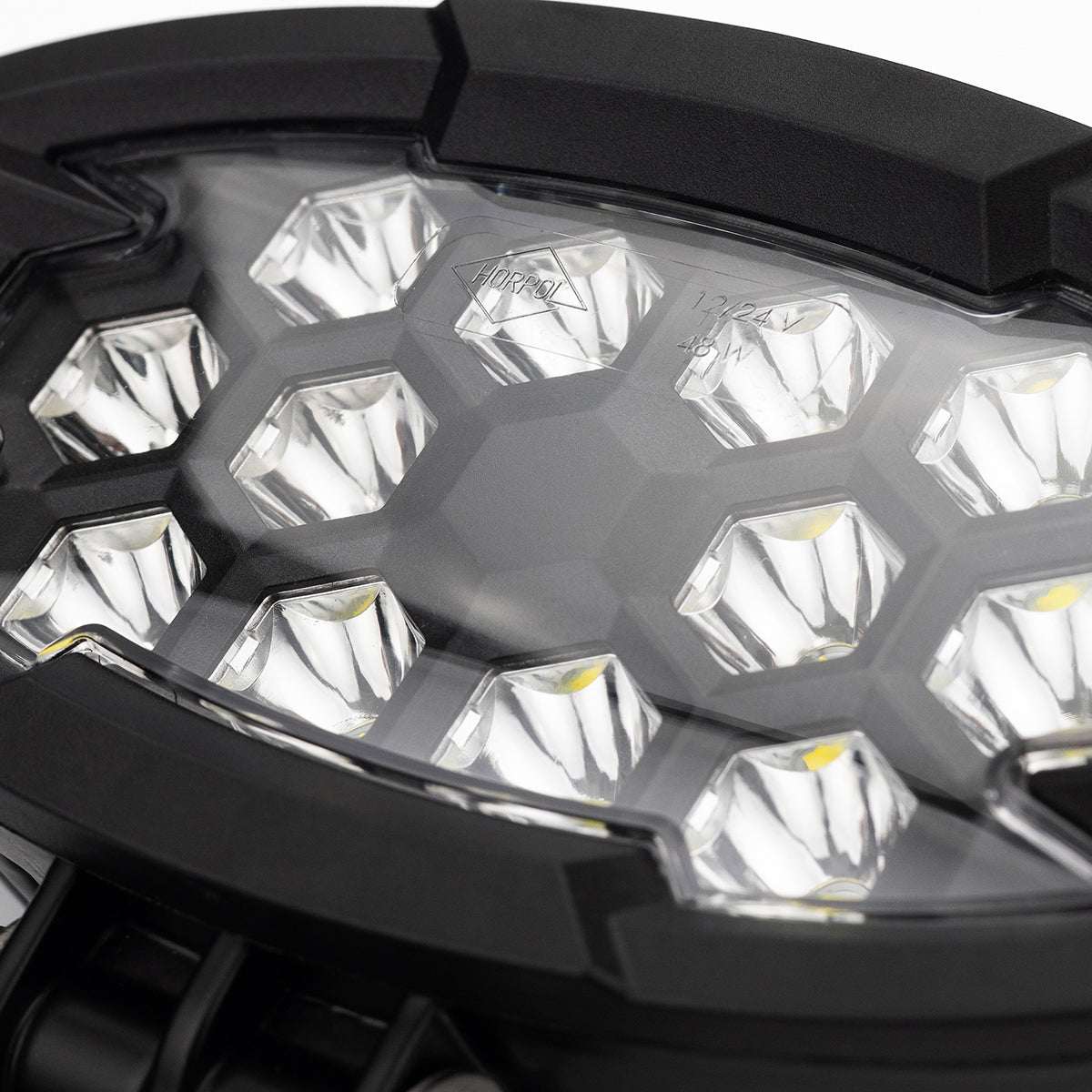

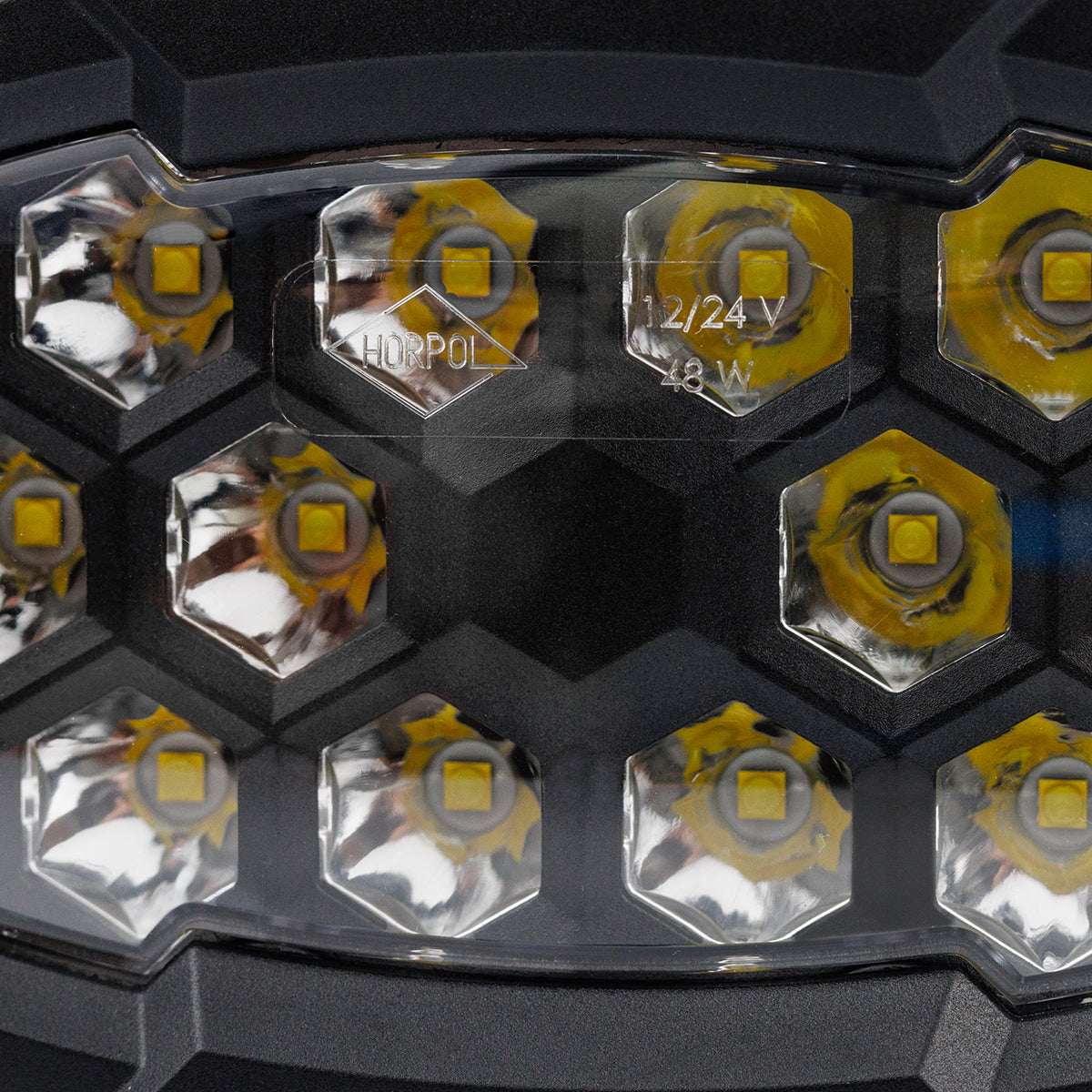

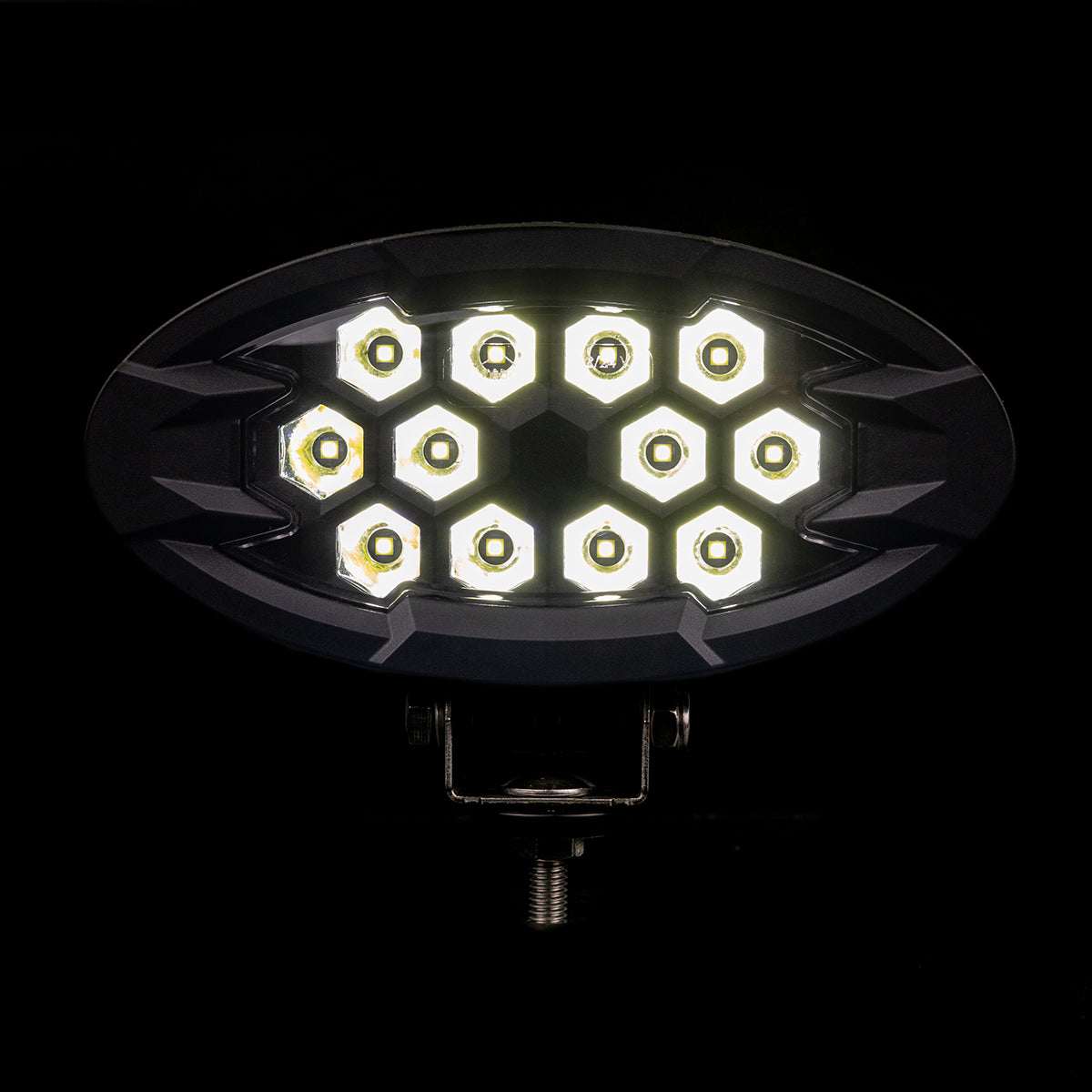

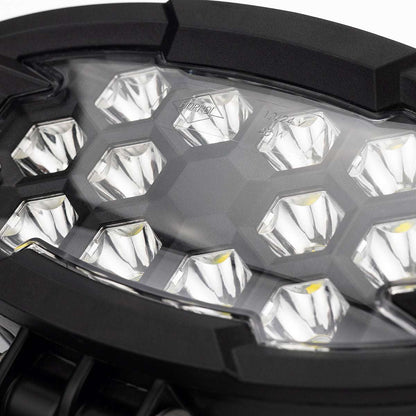

Powered by 12 high-performance LEDs, this work light produces an impressive 5500 lumens of crisp 6500 K cool white light, closely resembling natural daylight. The enhanced brightness improves precision, reduces fatigue, and increases safety — even in total darkness and extreme weather conditions.

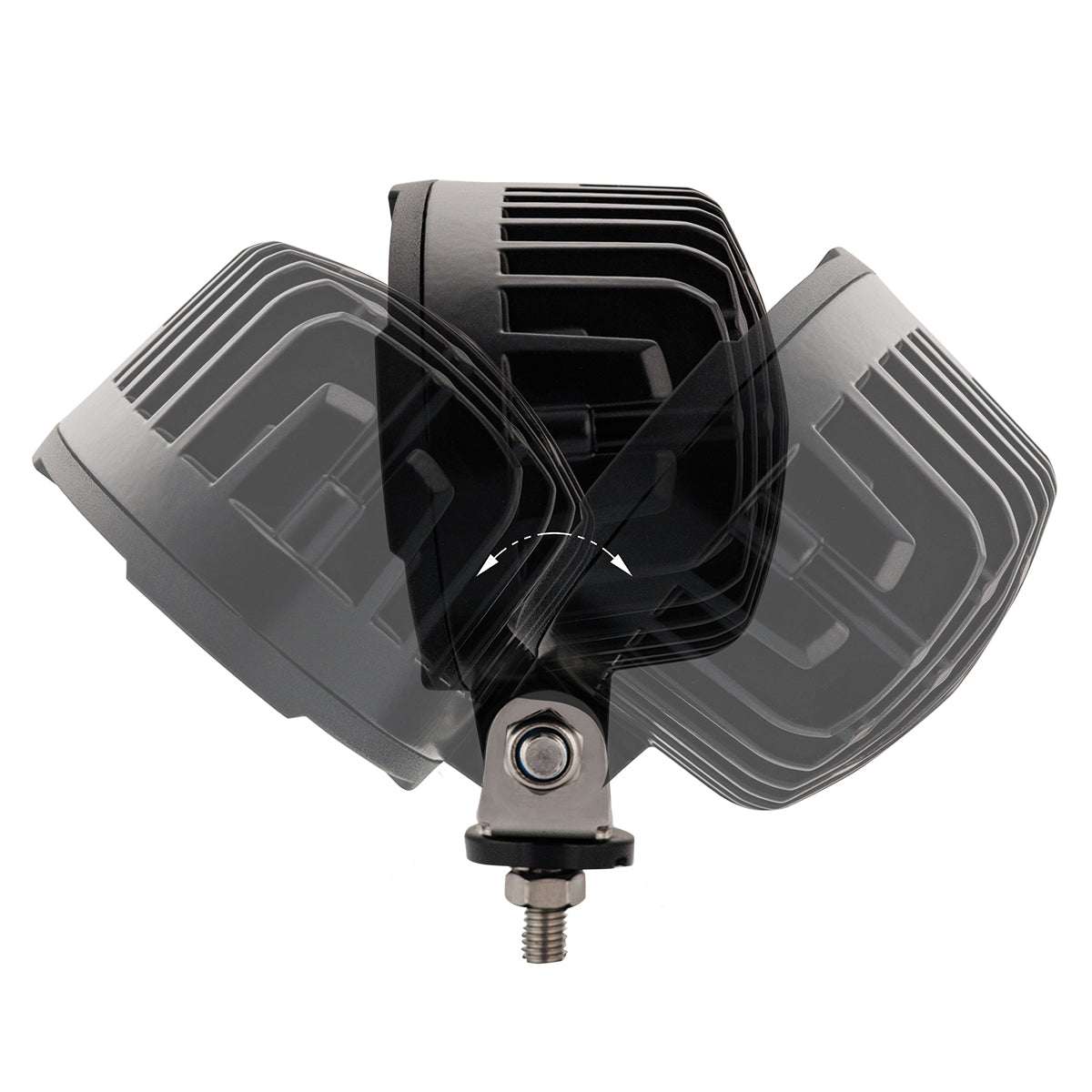

Compatible with both 12 V and 24 V electrical systems, and mountable on either side of the vehicle, the RAPTOR LRD 3169 offers outstanding versatility. The adjustable mounting bracket allows precise control of the beam angle, ensuring optimal illumination for any task.

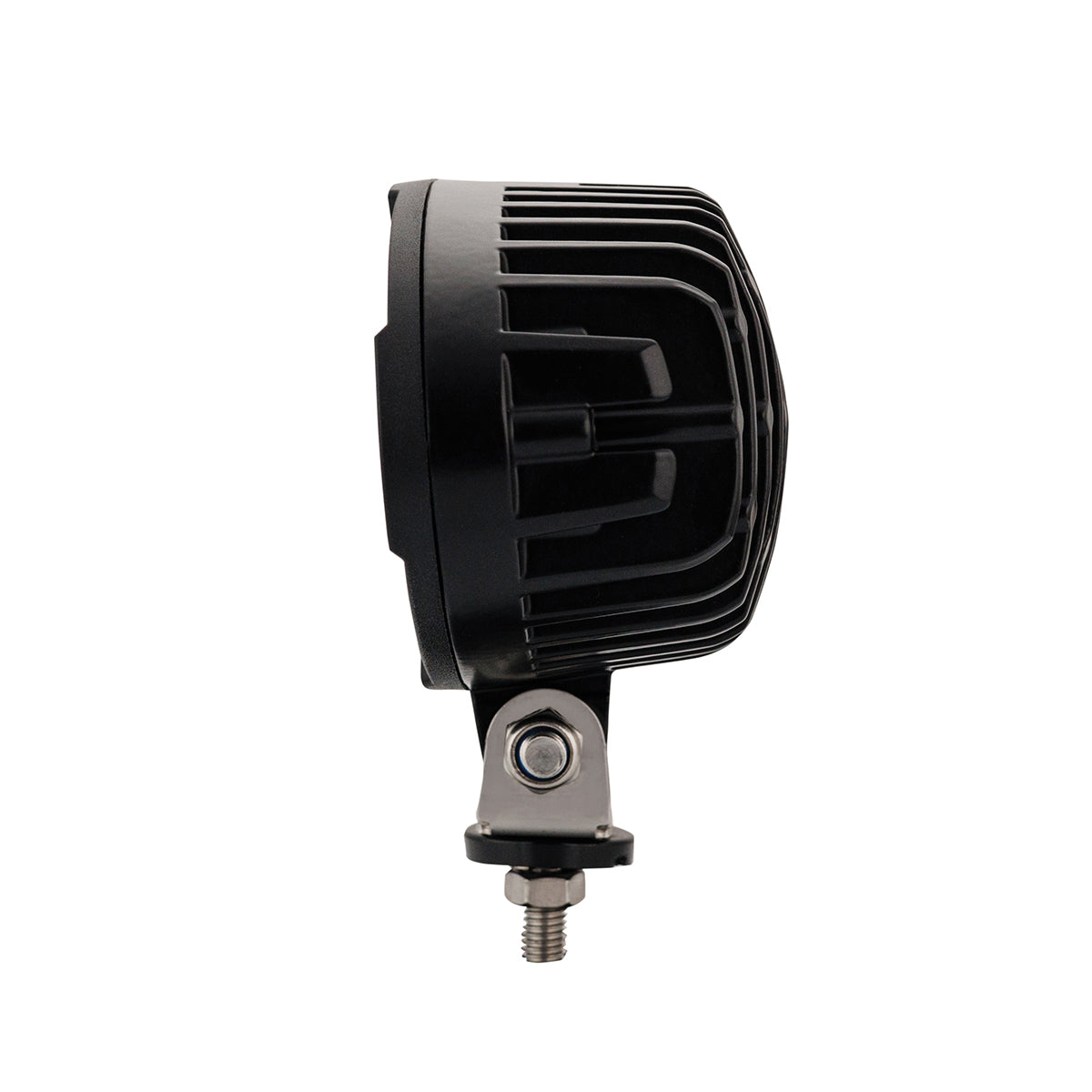

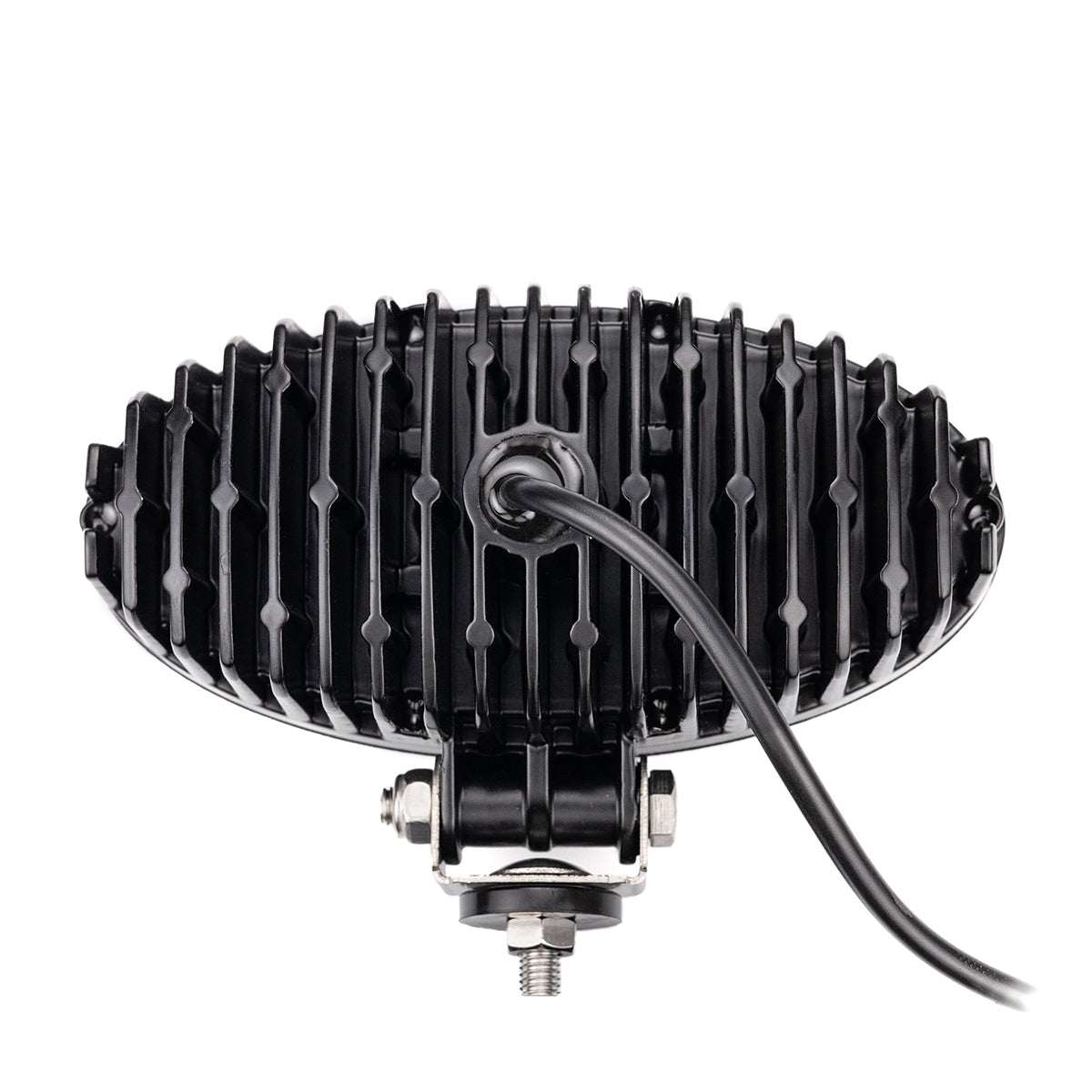

Engineered for durability, the rugged housing protects against mechanical damage, while the rear aluminum heat sink efficiently dissipates heat for stable, long-term performance. The impact-resistant polycarbonate lens ensures reliability in harsh environments, and the integrated pressure-equalizing membrane prevents condensation and internal fogging.

With IP68 protection and R10 approval, the LRD 3169 guarantees full resistance to dust and moisture, reliable operation in temperatures from -22°F to +122°F, and electromagnetic compatibility with other onboard electronics.

When only maximum lighting power will do, the LRD 3169 RAPTOR delivers unmatched performance and reliability.

Key Features:

• 12 high-performance LEDs delivering 5500 lm output

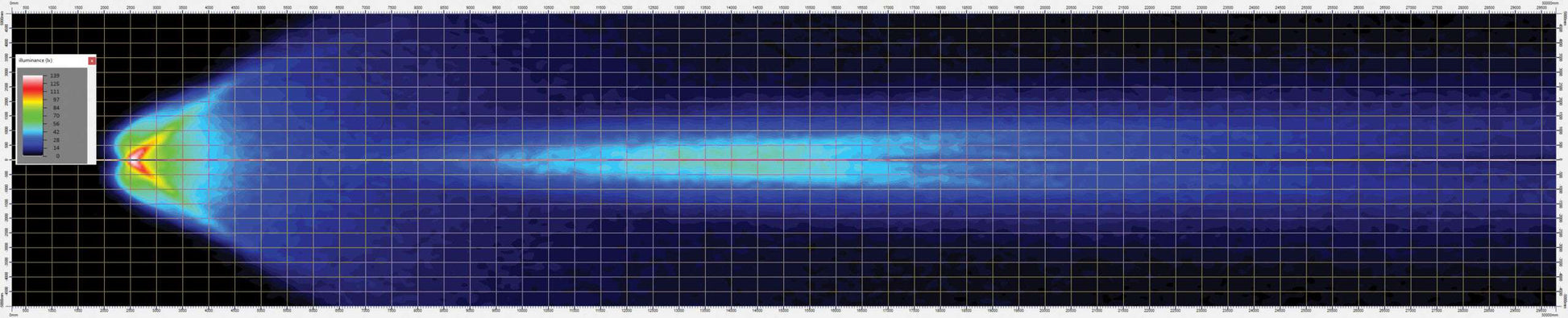

• Focused beam pattern for powerful, long-range illumination
• Bright 6500 K cool white light (daylight-like visibility)
• Compatible with 12 V and 24 V systems
• Adjustable mounting bracket for precise beam positioning
• Durable housing with protective black grille
• Rear aluminum heat sink for efficient thermal management

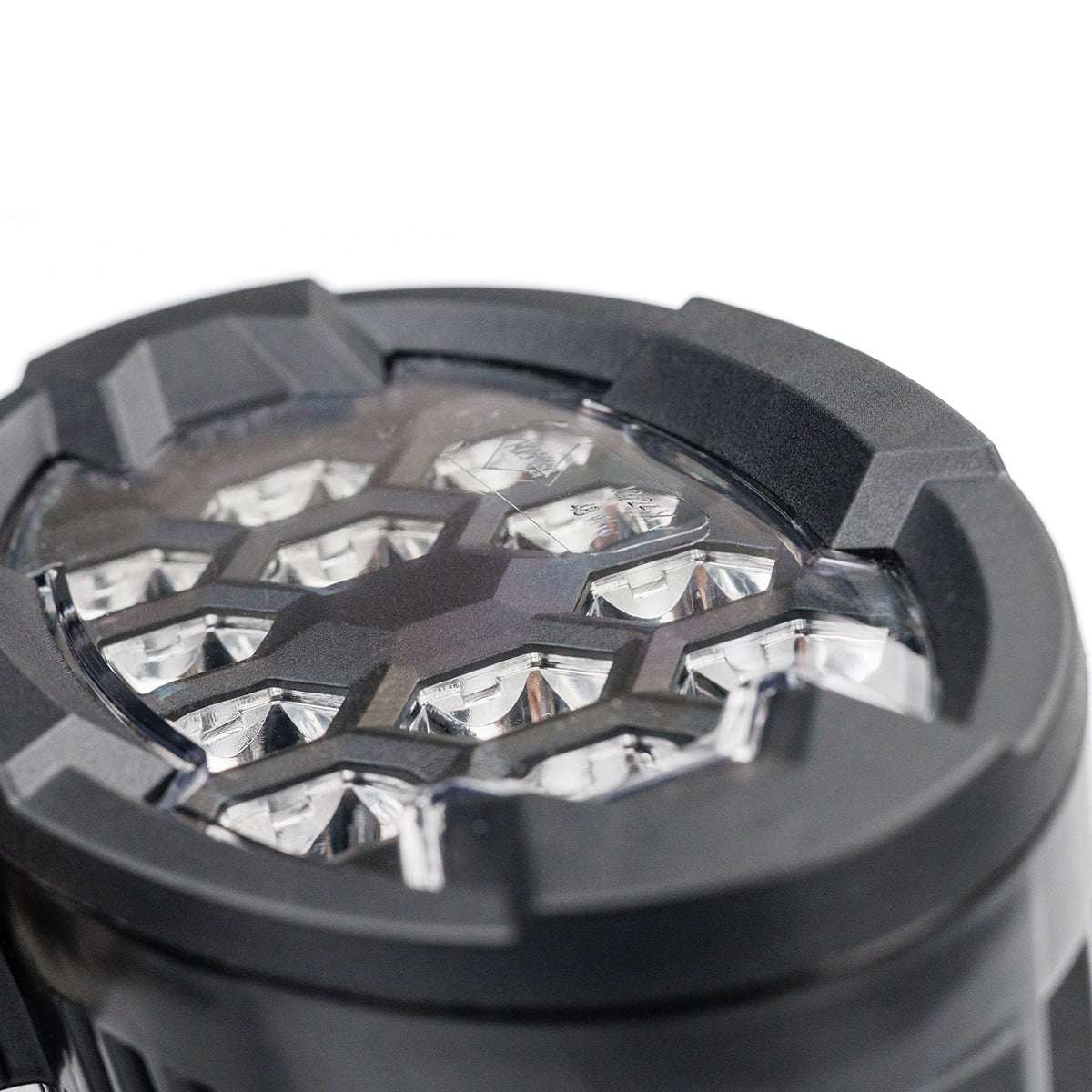

• Impact-resistant polycarbonate lens
• Pressure-equalizing membrane to prevent condensation
• IP68-rated – fully dustproof and waterproof
• R10-approved for electromagnetic compatibility

Specifications:

• Light category: Working light
• Light source: LED
• LED quantity: 12
• Luminous flux: 5500 lm
• Power rating: 48 W
• Supply voltage: 12/24 V
• Light colour: White
• Colour temperature: 6500 K
• Beam type: Focused
• Ingress protection rating: IP68
• Operating temperature range: -22°F to +122°F
• Cable: 2 × 0.75 mm²
• Cable length: 1.5 m
• Mounting side: Universal
• Light group: HOR 150

Applications:

• Agricultural and construction machinery
• Trailers and semi-trailers
• Trucks and transport vehicles
• Recovery trucks and roadside assistance vehicles
• Specialist and service vehicles
