Work Light RAPTOR (focused light, 2600 lm) LRD 3189

The LRD 3189 RAPTOR LED work light is engineered for demanding field operations where durability, brightness, and reliability are essential. Designed to perform in harsh terrain and extreme weather conditions, this powerful work lamp ensures optimal visibility for agricultural, construction, and heavy-duty vehicle applications.

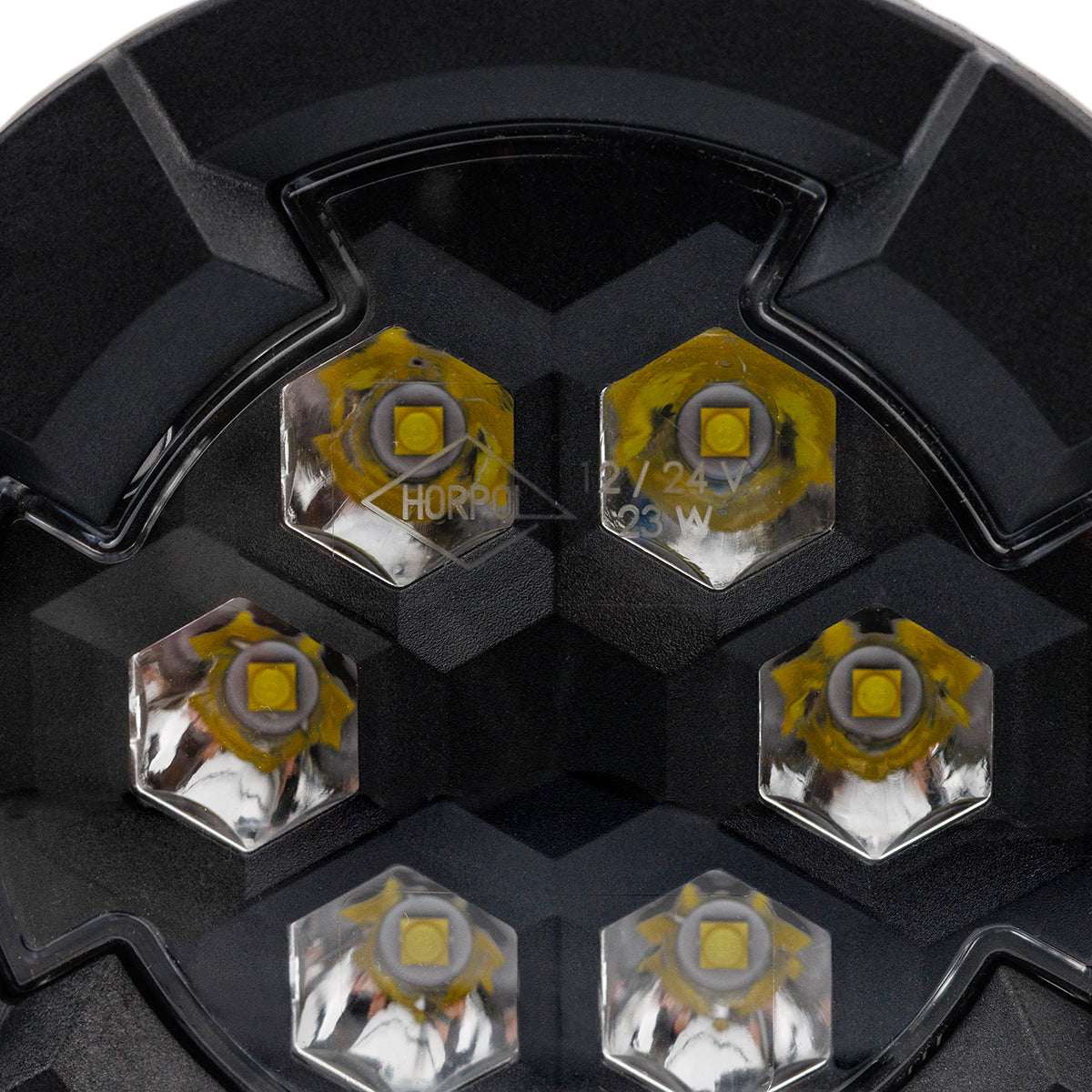

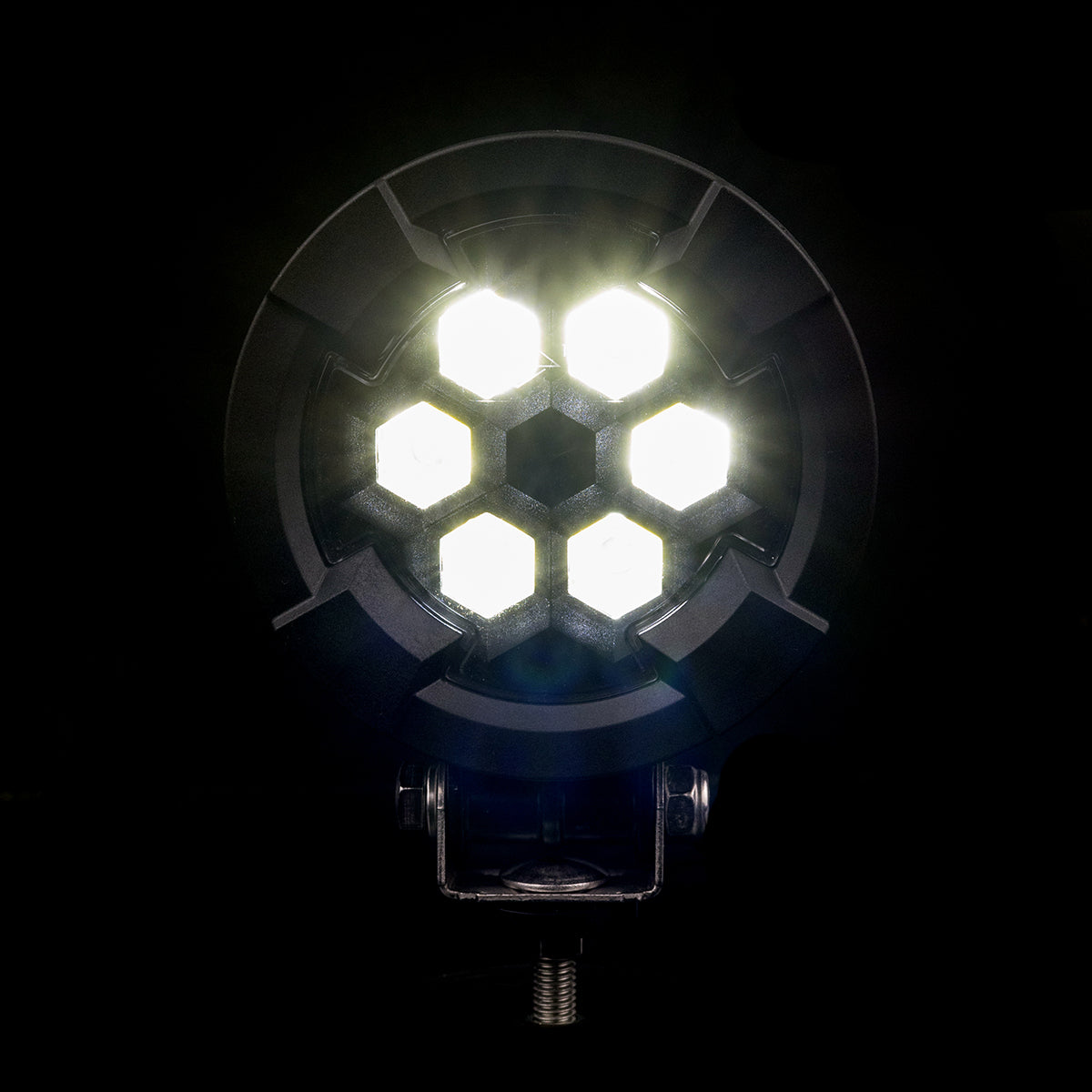

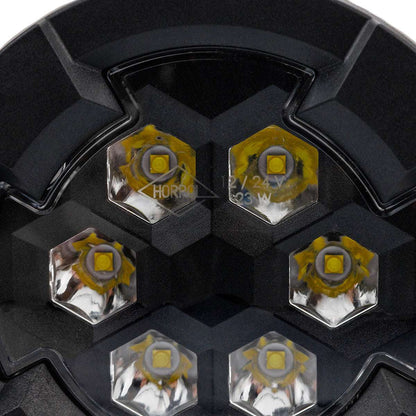

Equipped with 6 high-performance LEDs and a total power output of 23 W, the LRD 3189 generates an impressive 2600 lumens of focused illumination. The 6500 K cool daylight color temperature provides bright, clear lighting that enhances visibility, improves precision, and increases safety — even in complete darkness.

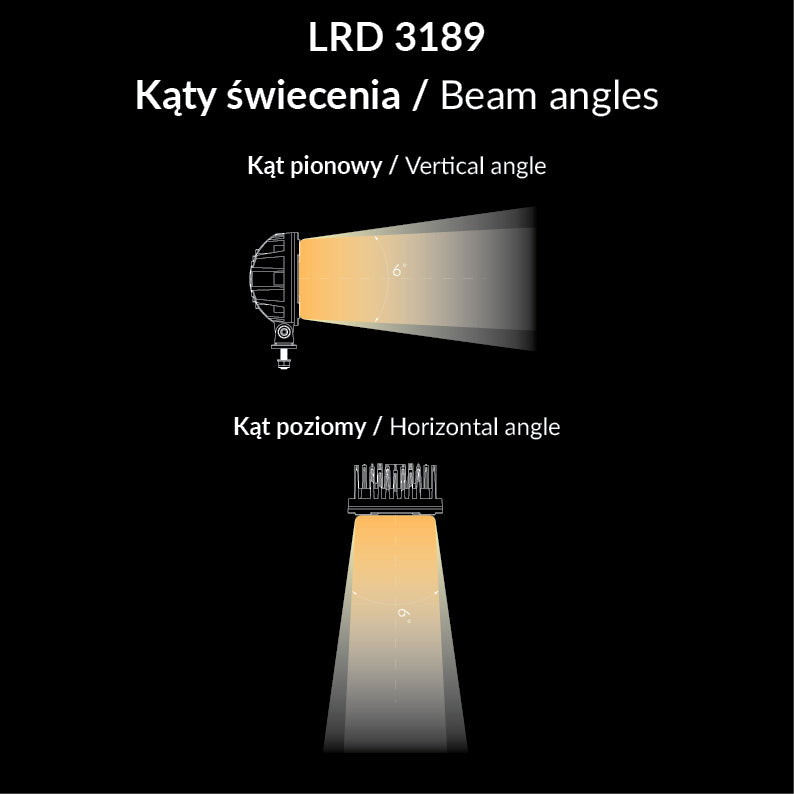

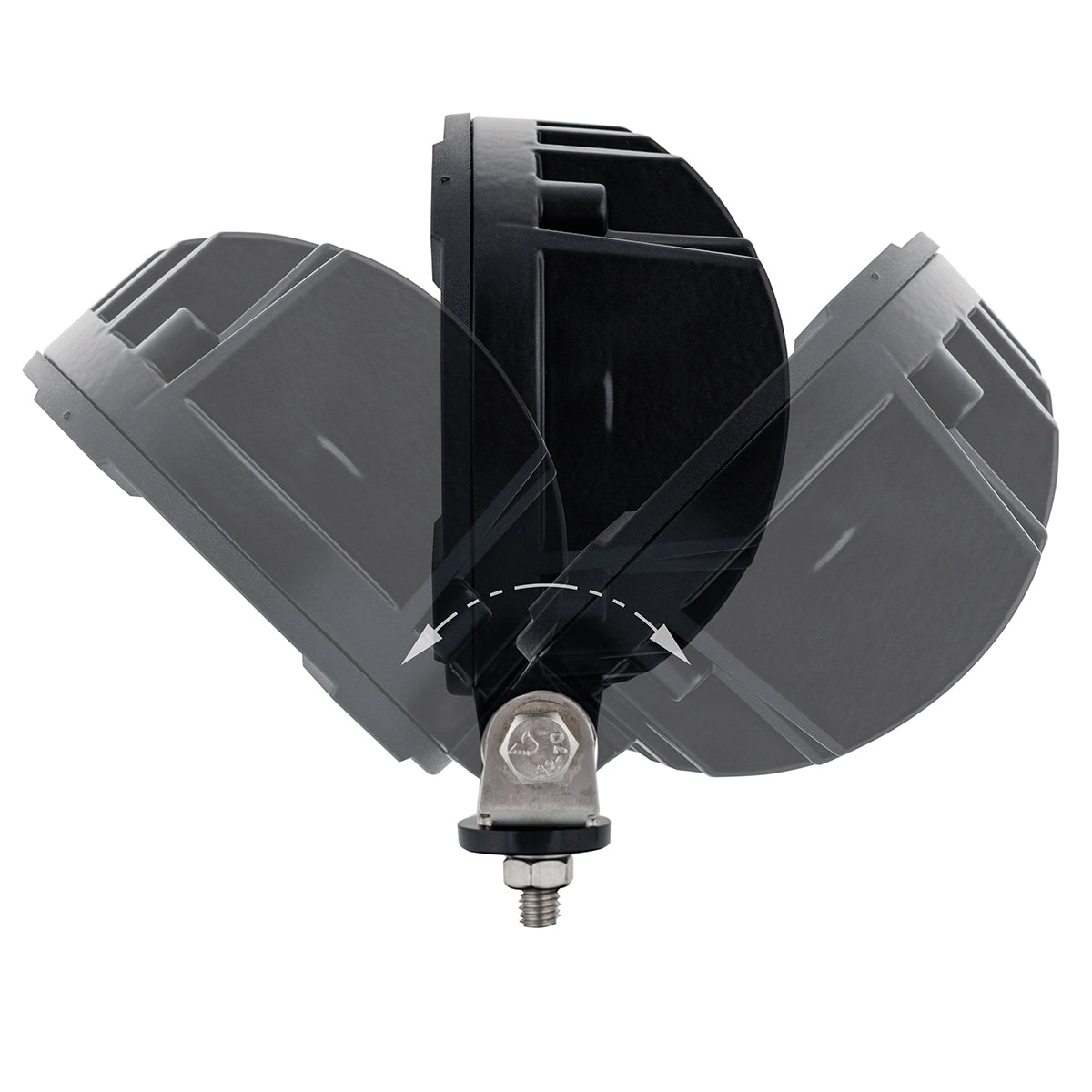

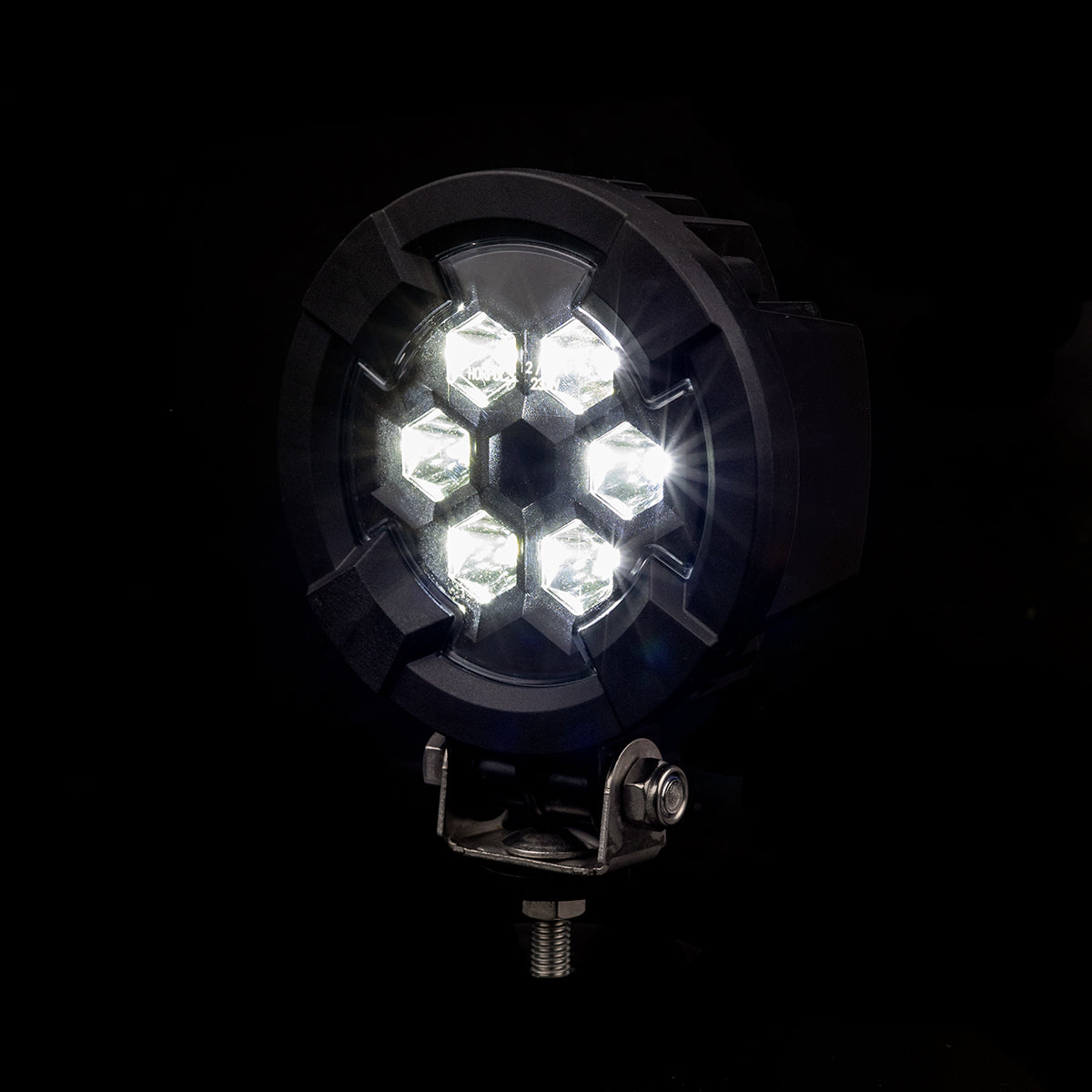

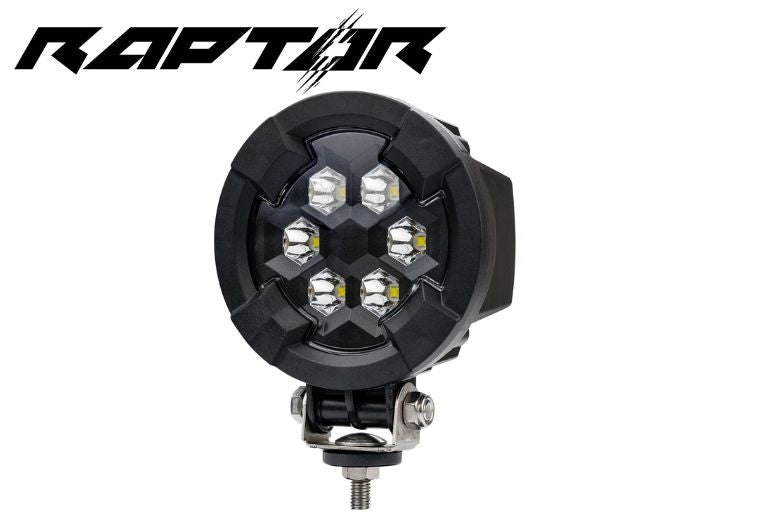

The durable round housing with a protective black grille creates a focused beam pattern, directing light exactly where it’s needed while minimizing glare for the operator. The adjustable mounting bracket allows smooth and precise angle adjustment, adapting the beam to specific tasks and working environments.

Compatible with both 12 V and 24 V electrical systems, and mountable on either side of the vehicle, the LRD 3189 offers universal installation flexibility across a wide range of machinery and vehicles.

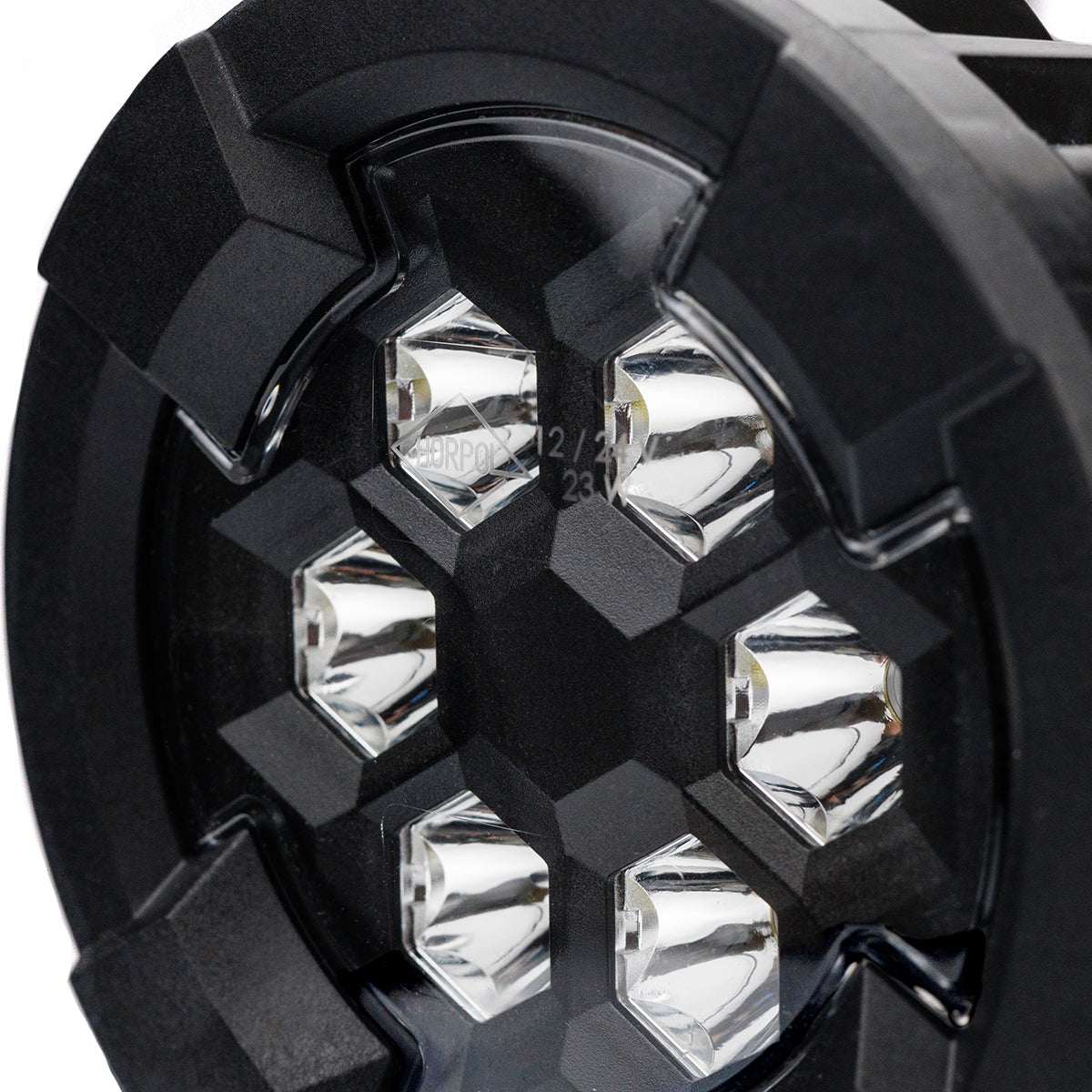

Built for longevity, the robust housing protects against mechanical damage, while the rear aluminum heat sink ensures efficient heat dissipation. The impact-resistant polycarbonate lens enhances durability, and the integrated pressure-equalizing membrane prevents condensation and internal fogging.

With a certified IP68 protection rating, the LRD 3189 is fully resistant to dust and water and operates reliably in temperatures from –22°F to +122°F. R10 approval confirms electromagnetic compatibility, ensuring interference-free operation alongside other onboard electronics.

When reliable lighting is critical for fieldwork, the LRD 3189 RAPTOR delivers the performance professionals depend on.

Key Features:

• 6 high-performance LEDs delivering 2600 lm output
• Focused beam pattern for precise illumination
• Bright 6500 K cool white daylight colour
• Compatible with 12 V and 24 V systems
• Adjustable mounting bracket for accurate beam positioning
• Durable housing with protective black grille
• Rear aluminum heat sink for efficient thermal management
• Impact-resistant polycarbonate lens
• Pressure-equalizing membrane to prevent condensation
• IP68-rated – fully dustproof and waterproof
• R10-approved for electromagnetic compatibility

Specifications:

• Light category: Working light
• Light source: LED
• LED quantity: 6
• Luminous flux: 2600 lm
• Power rating: 23 W
• Supply voltage: 12/24 V
• Light colour: White
• Colour temperature: 6500 K
• Beam type: Focused
• Ingress protection rating: IP68
• Operating temperature range: -22°F to +122°F
• Cable: 2 × 0.75 mm²
• Cable length: 1.5 m
• Mounting side: Universal
• Light group: HOR 156

Ideal Applications:

• Agricultural and construction machinery
• Trailers and semi-trailers
• Trucks, specialist vehicles, and service vehicles
• Recovery trucks and roadside assistance vehicles
