Work Light RAPTOR (dispersed light, 2600 lm) LRD 3180

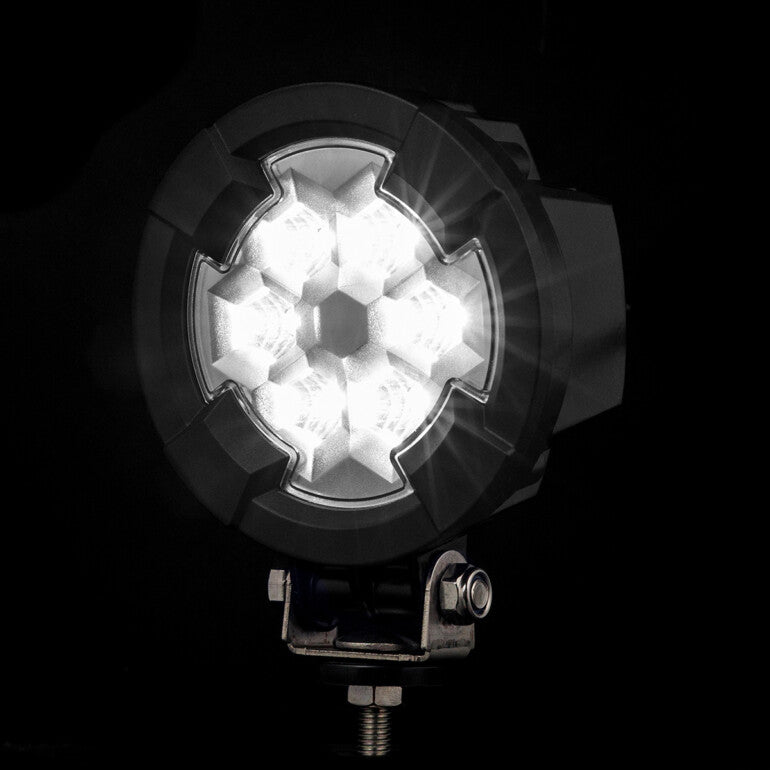

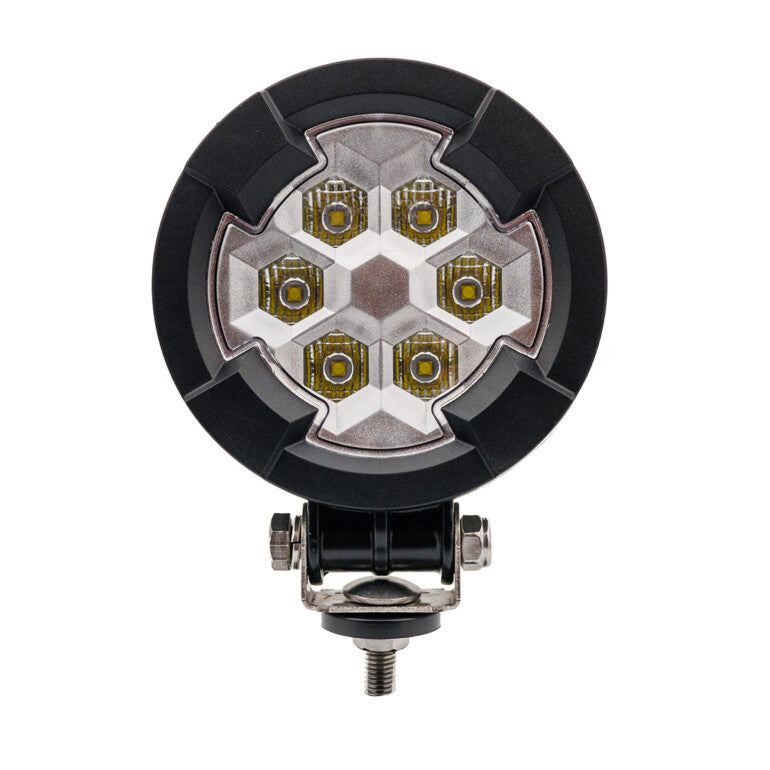

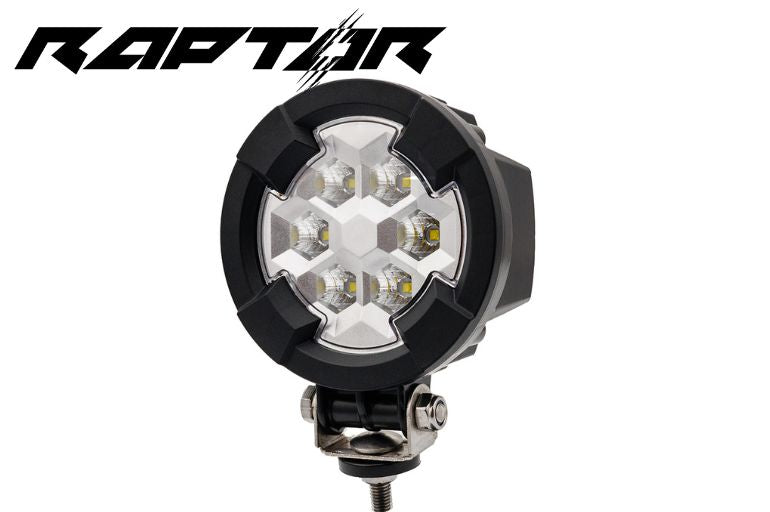

The RAPTOR LRD 3180 work lamp is a high-performance, round LED work light engineered for intensive fieldwork and harsh operating conditions. Designed to deliver powerful and uniform illumination, it’s the ideal solution for agricultural, construction, transport, and specialist vehicles that demand reliable lighting day after day.

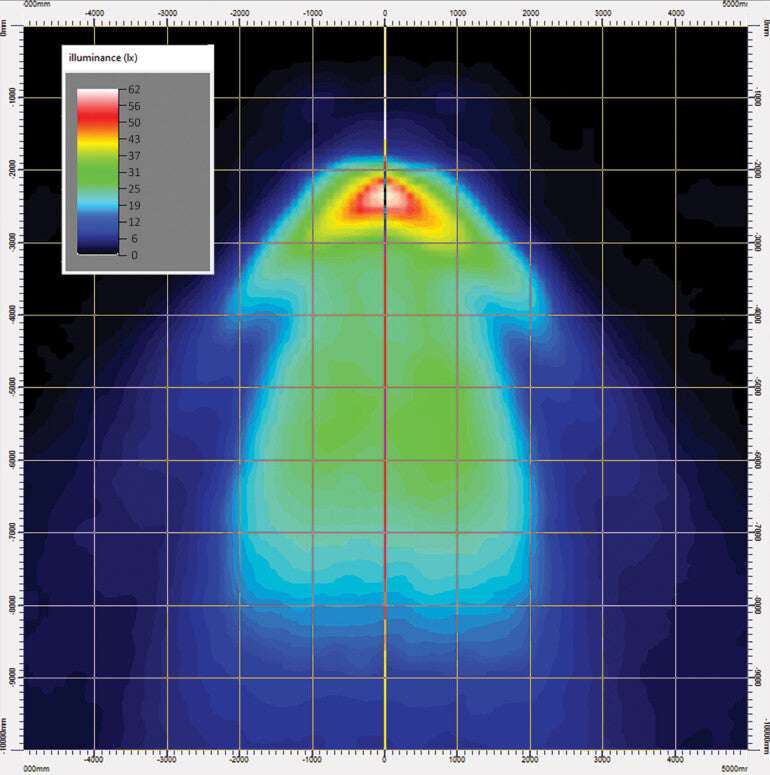

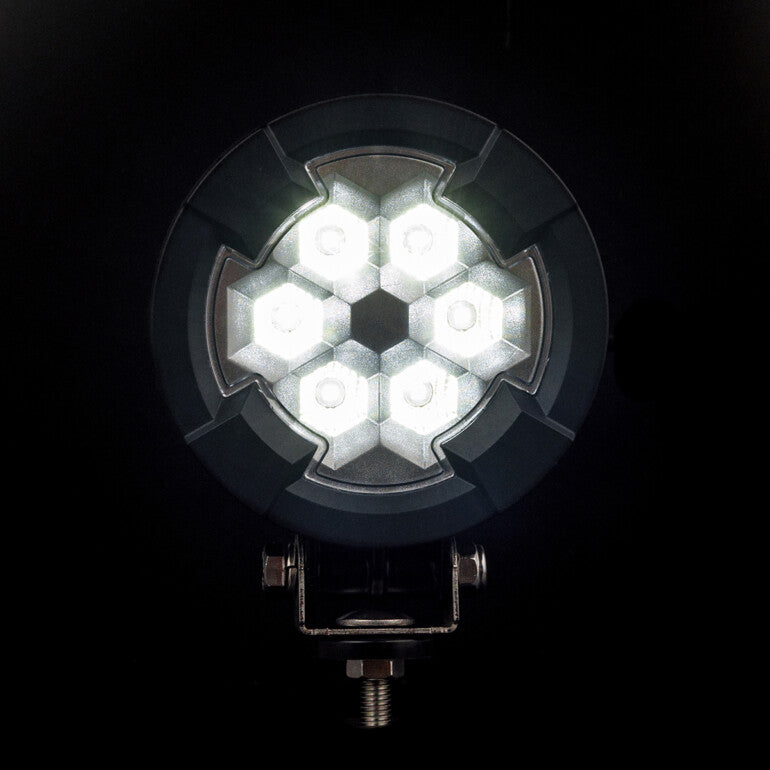

Equipped with 6 high-efficiency LEDs and a total power output of 23 W, the LRD 3180 produces an impressive 2600 lumens of bright, cool white light (6500 K). Its diffused beam pattern ensures even, glare-free illumination of the workspace, improving safety, precision, and operator comfort when working after dark.

Built for durability, the lamp features a rugged housing that protects against mechanical damage. The integrated rear aluminum heat sink provides effective thermal management, while the pressure equalizing membrane prevents condensation and helps regulate internal temperature. The impact-resistant polycarbonate diffuser ensures long-lasting performance even in the toughest environments.

With an IP68 protection rating, the RAPTOR LRD 3180 is fully sealed against dust and water and operates reliably in extreme temperatures ranging from -22°F to +122°F. R10 certification guarantees electromagnetic compatibility, ensuring the lamp does not interfere with onboard electronics such as radios.

Compact, powerful, and dependable — the RAPTOR LRD 3180 is built to perform wherever reliable work lighting is essential.

Key Features:

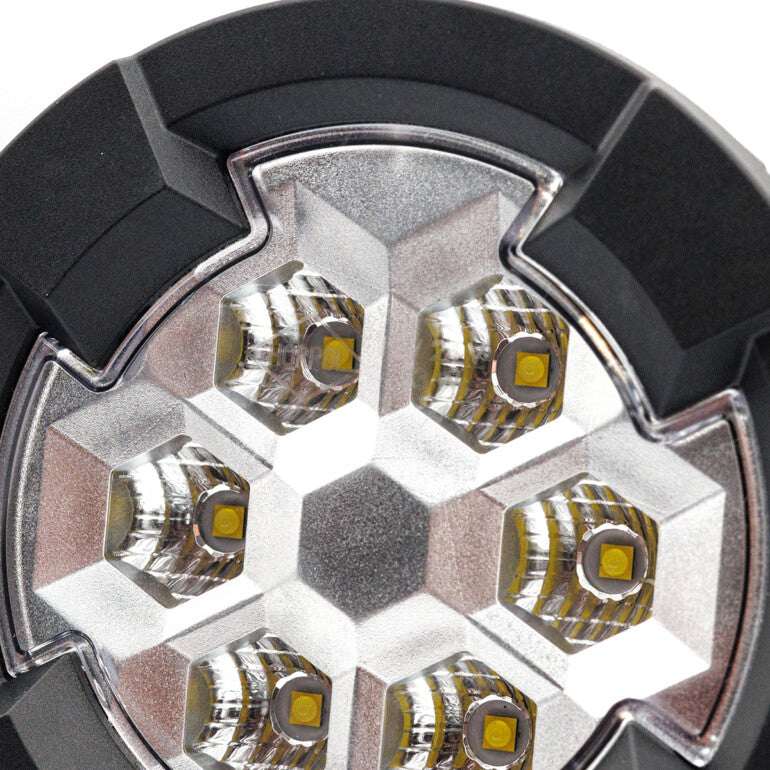

• 6 high-efficiency LEDs delivering 2600 lm output
• Bright 6500 K cool white light for maximum visibility
• Diffused beam for wide, uniform illumination
• Compatible with 12 V and 24 V electrical systems

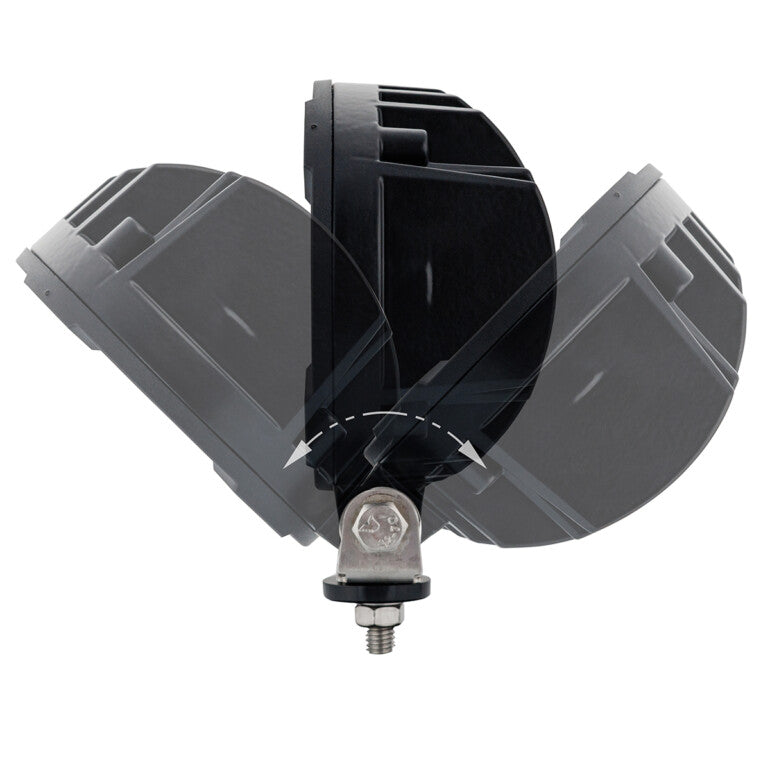

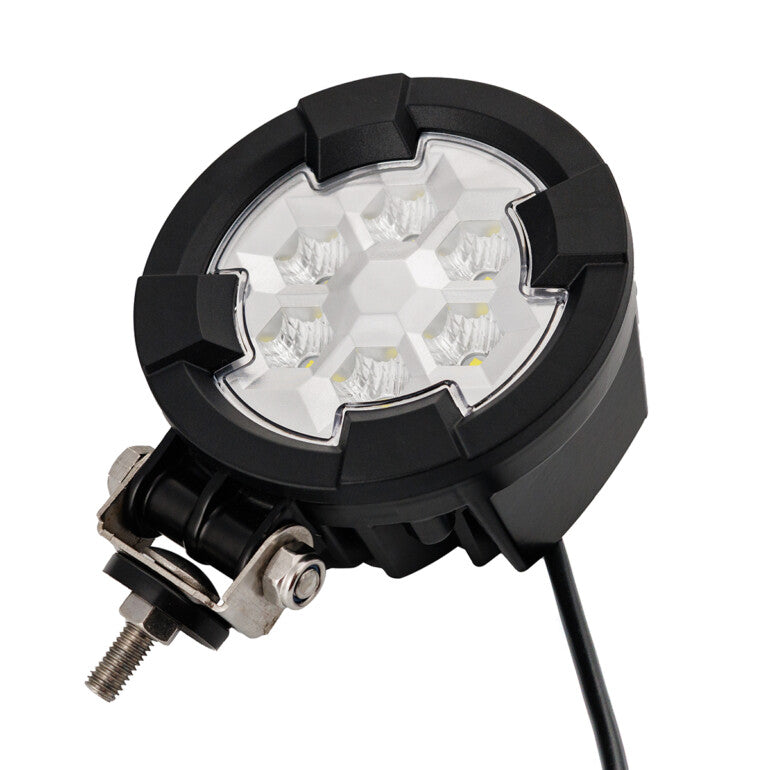

• Adjustable tiltable mounting bracket for precise beam direction
• Durable housing resistant to mechanical damage
• Rear aluminum heat sink for efficient heat dissipation
• Pressure equalizing membrane to prevent condensation

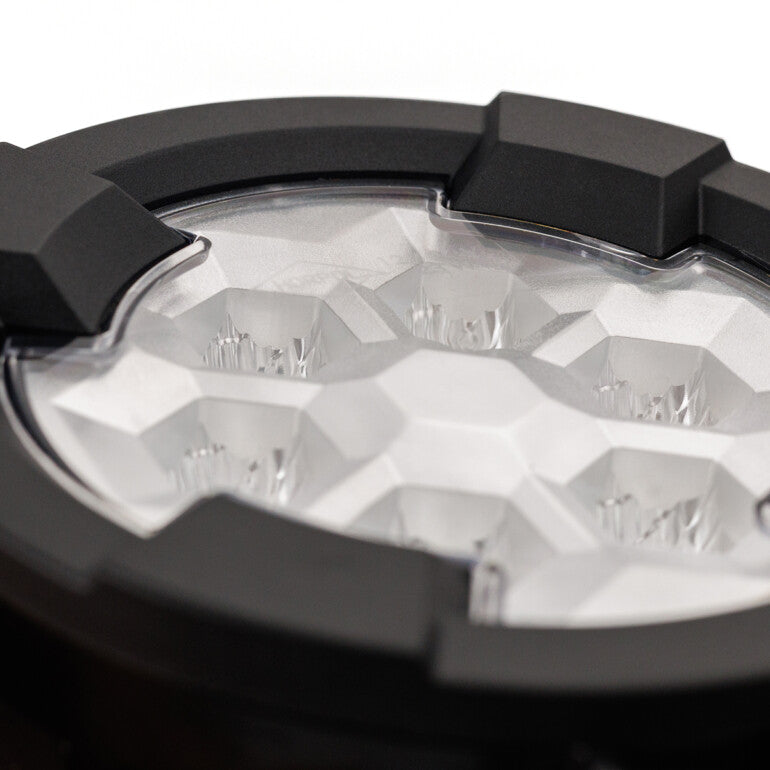

• Impact-resistant polycarbonate diffuser
• IP68-rated – fully dustproof and waterproof
• R10-certified for electromagnetic compatibility

Specifications:

• Light category: Working light
• Light source: LED
• LED quantity: 6
• Luminous flux: 2600 lm
• Power rating: 23 W
• Supply voltage: 12/24 V
• Light colour: White
• Colour temperature: 6500 K

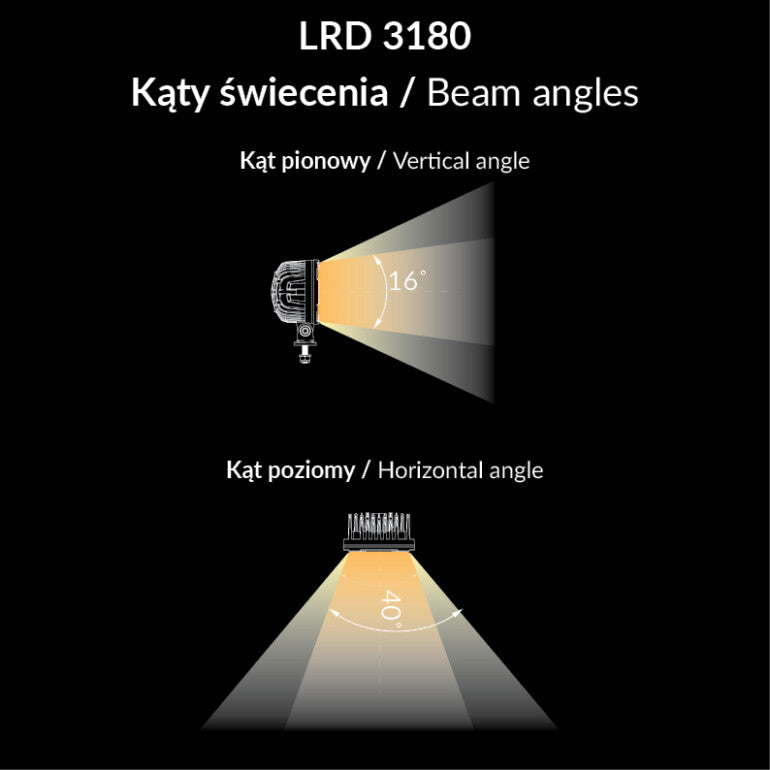

• Beam type: Diffused
• Ingress protection rating: IP68
• Operating temperature range: -22°F to +122°F
• Cable: 2 × 0.75 mm²
• Cable length: 1.5 m
• Mounting side: Universal
• Light group: HOR 156

Applications:

• Agricultural and construction machinery
• Trailers and semi-trailers
• Trucks and transport vehicles
• Tow trucks and roadside assistance vehicles
• Specialized and service vehicles
