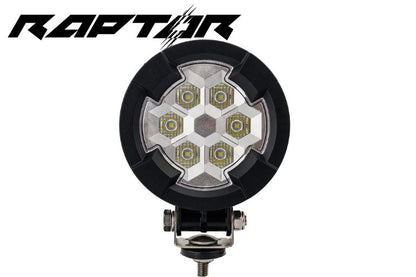

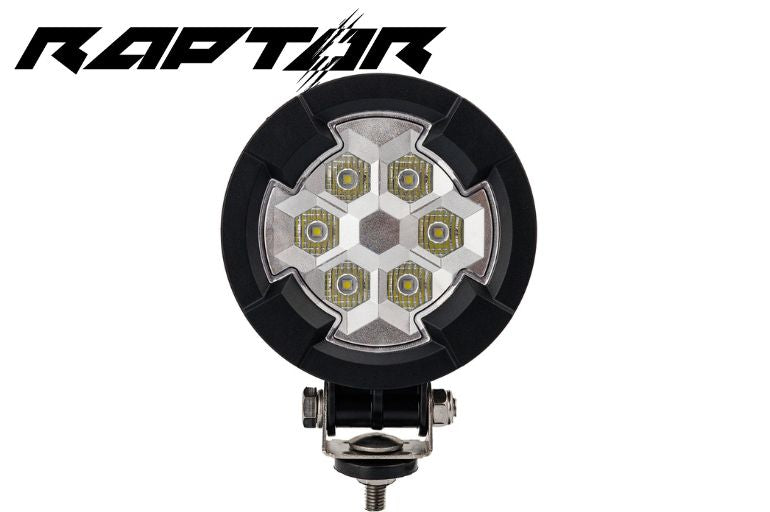

Work Light RAPTOR (dispersed light, 1600 lm) LRD 3182

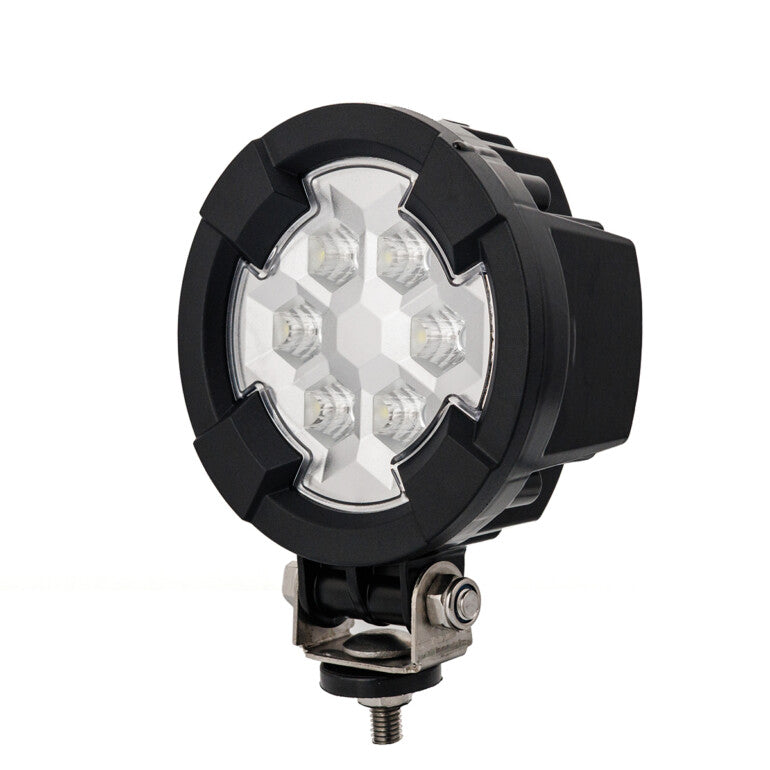

The RAPTOR LRD 3182 work lamp is a modern and reliable LED lighting solution designed for demanding working environments. Engineered for durability and consistent performance, this compact round work light ensures dependable illumination wherever precision and safety are essential.

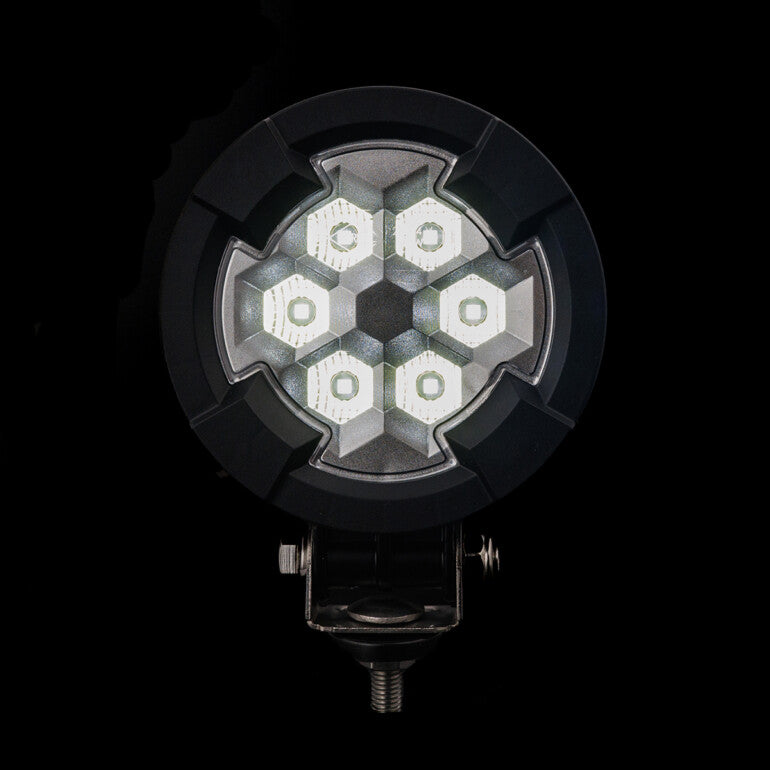

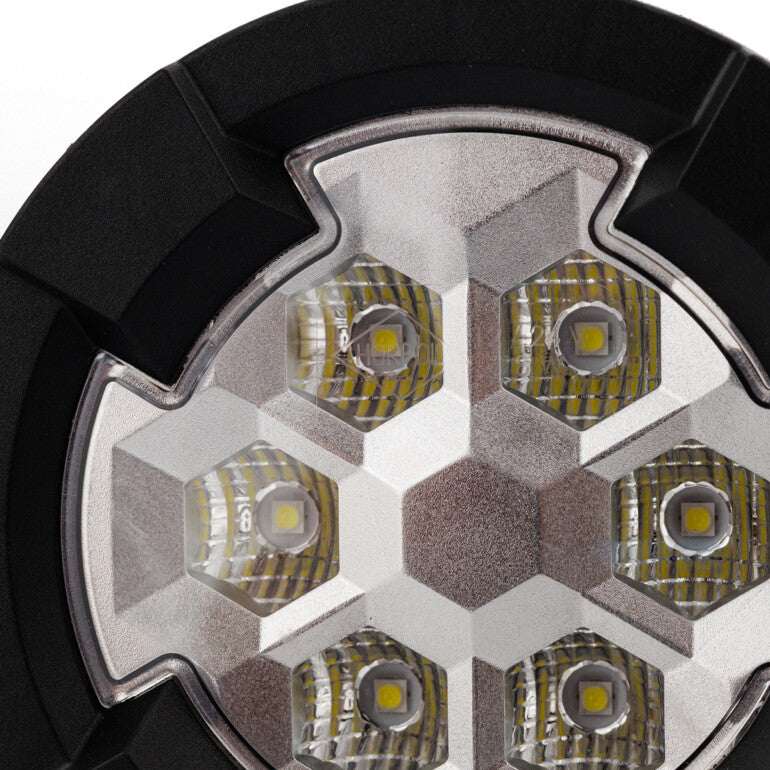

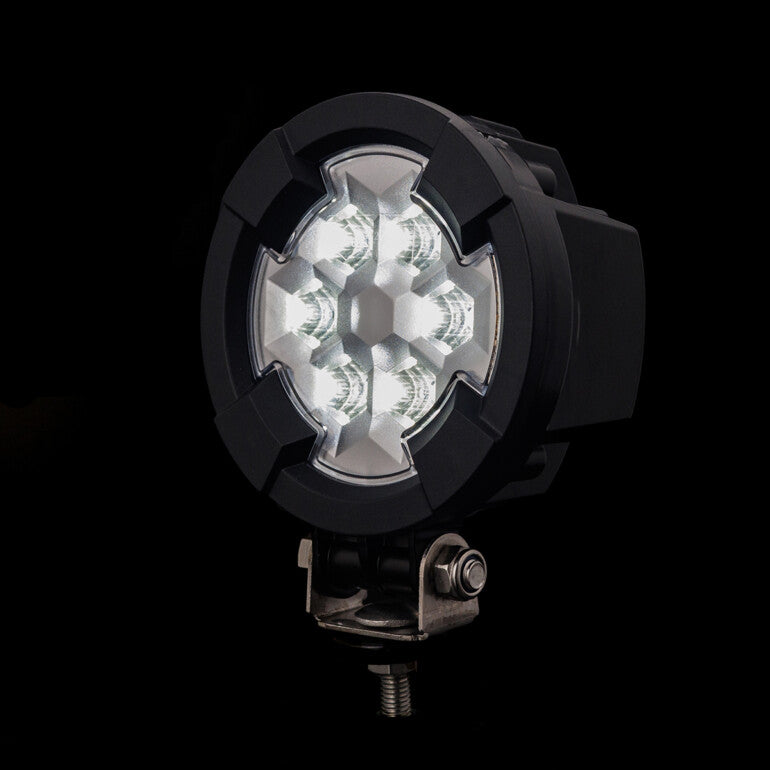

Equipped with 6 high-efficiency LEDs and a total power of 18 W, the LRD 3182 delivers a strong 1600-lumen output with a crisp 6500 K cool white light. This daylight-like illumination enhances visibility and reduces eye strain, making nighttime and low-light operations significantly safer and more comfortable.

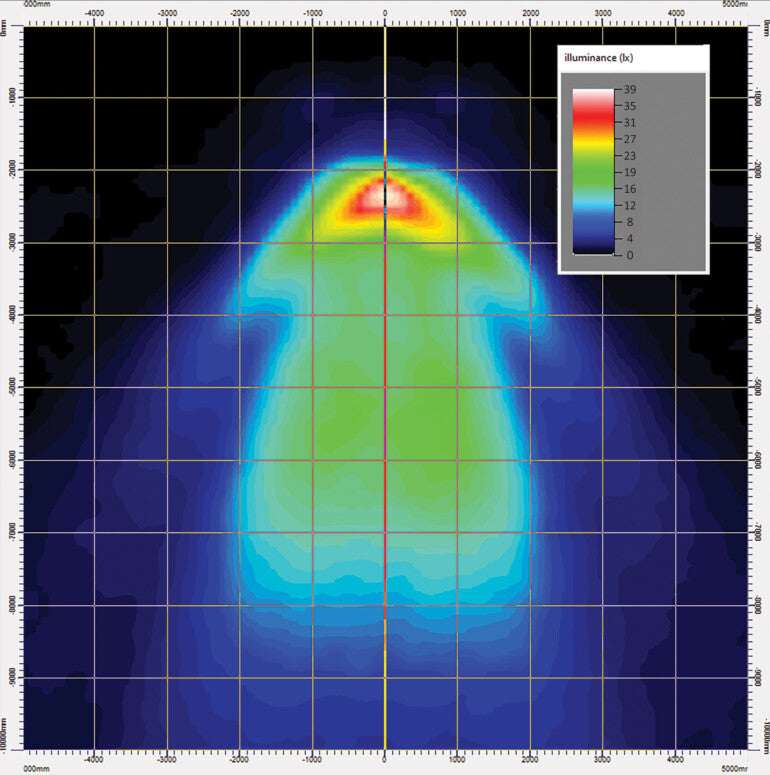

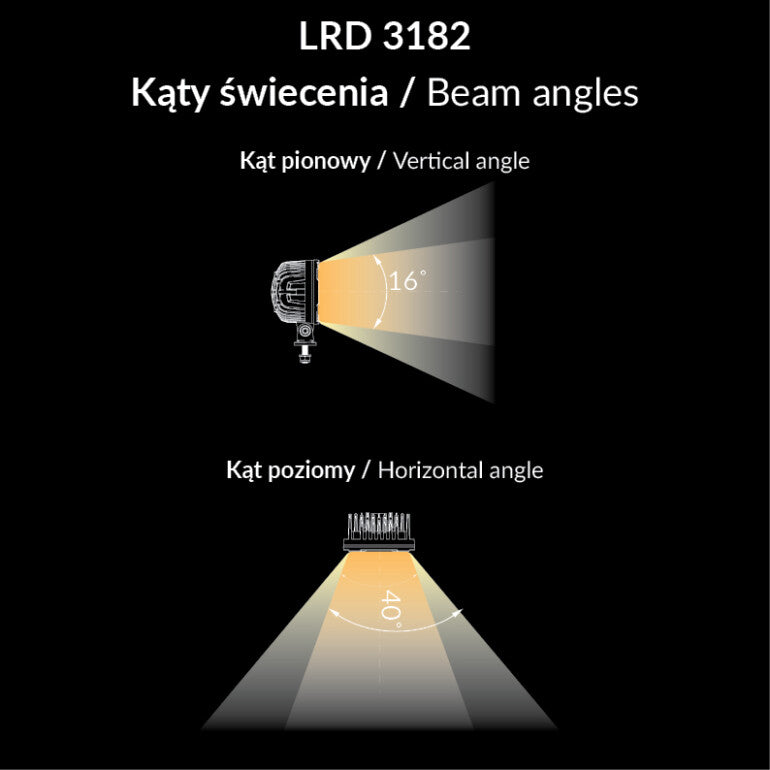

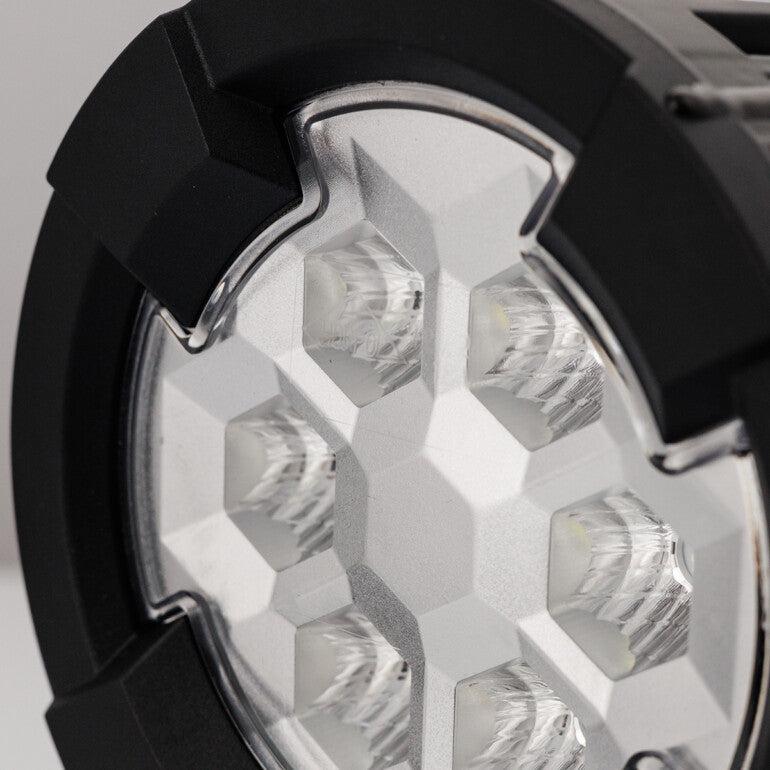

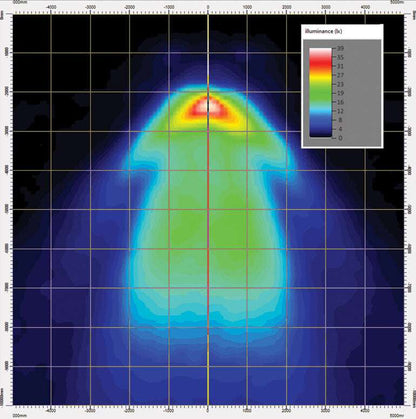

Its precision reflector and diffused beam pattern provide wide, evenly distributed lighting without glare. The adjustable tilting mount allows accurate beam positioning, ensuring light is directed exactly where it’s needed.

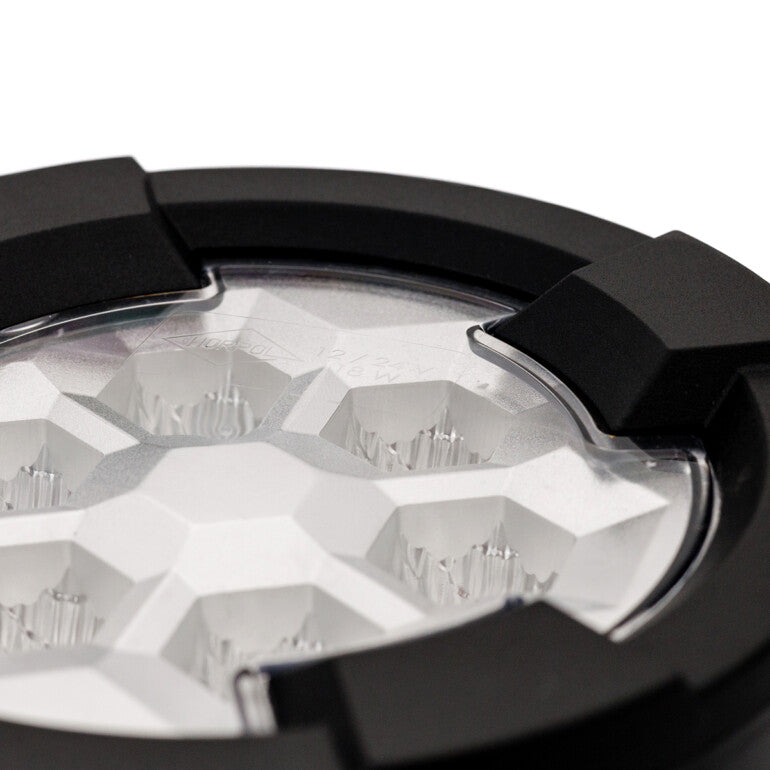

Built for tough conditions, the robust housing protects against mechanical damage, while the rear aluminum heat sink efficiently dissipates heat for stable long-term performance. A pressure equalizing membrane prevents internal condensation and helps regulate temperature. The impact-resistant polycarbonate diffuser ensures durability even in harsh environments.

With a full IP68 protection rating, the RAPTOR LRD 3182 is completely sealed against dust and moisture and operates reliably in temperatures from -22°F to +122°F. R10 approval guarantees electromagnetic compatibility, preventing interference with other onboard electronics.

Compact, powerful, and dependable — the RAPTOR LRD 3182 is engineered to keep your workspace clearly illuminated in every condition.

Key Features:

• 6 high-efficiency LEDs delivering 1600 lm output
• Bright 6500 K cool white light for maximum visibility
• Wide, evenly diffused beam with precision reflector
• Compatible with 12 V and 24 V electrical systems

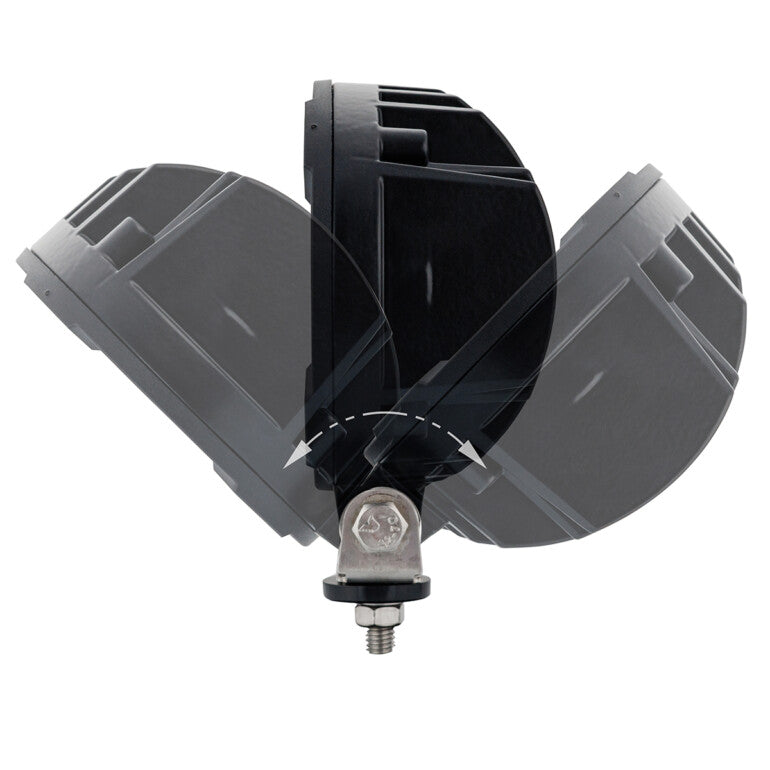

• Adjustable tilting mount for precise beam direction
• Durable housing resistant to mechanical damage
• Rear aluminum heat sink for effective heat dissipation
• Pressure equalizing membrane to prevent condensation
• Impact-resistant polycarbonate diffuser
• IP68-rated – fully dustproof and waterproof
• R10-approved for electromagnetic compatibility

Specifications:

• Light category: Working light
• Light source: LED
• LED quantity: 6
• Luminous flux: 1600 lm
• Power rating: 18 W
• Supply voltage: 12/24 V
• Light colour: White
• Colour temperature: 6500 K
• Beam type: Diffused
• Ingress protection rating: IP68
• Operating temperature range: -22°F to +122°F
• Cable: 2 × 0.75 mm²
• Cable length: 1.5 m
• Mounting side: Universal
• Light group: HOR 156

Ideal Applications:

• Agricultural and construction equipment
• Trailers and semi-trailers
• Trucks and transport vehicles
• Tow trucks and roadside assistance vehicles
• Service and specialist vehicles
