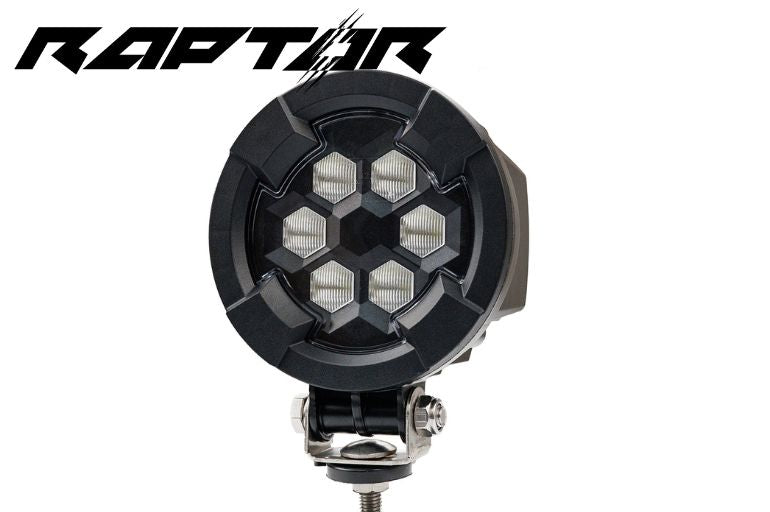

Work Light RAPTOR (dispersed light, 1600 lm) LRD 3181

The RAPTOR LRD 3181 work lamp is engineered for demanding tasks where dependable lighting is essential. Designed for agricultural, construction, transport, and specialist vehicles, this round LED work light delivers durability, efficiency, and consistent performance in even the harshest environments.

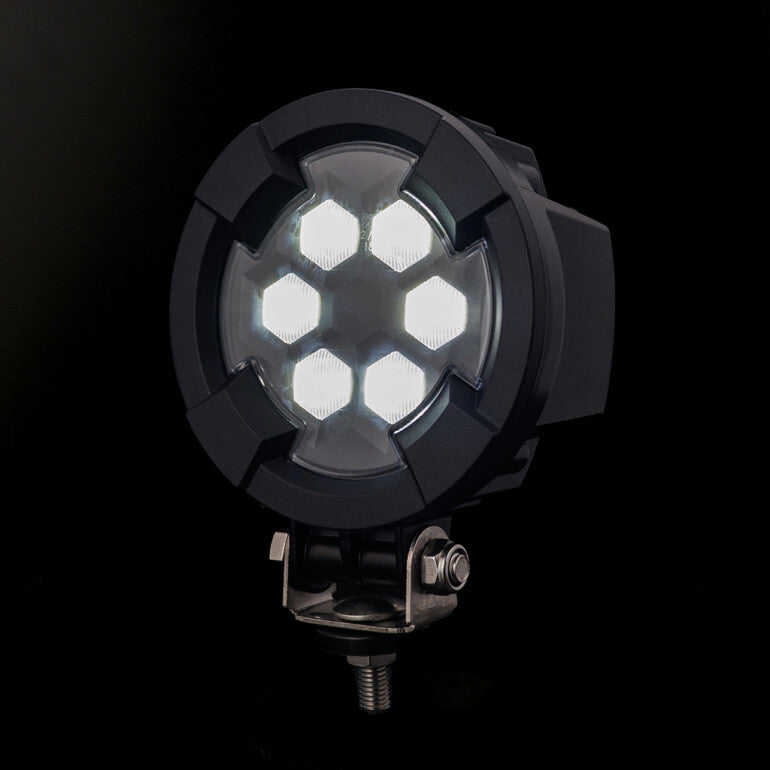

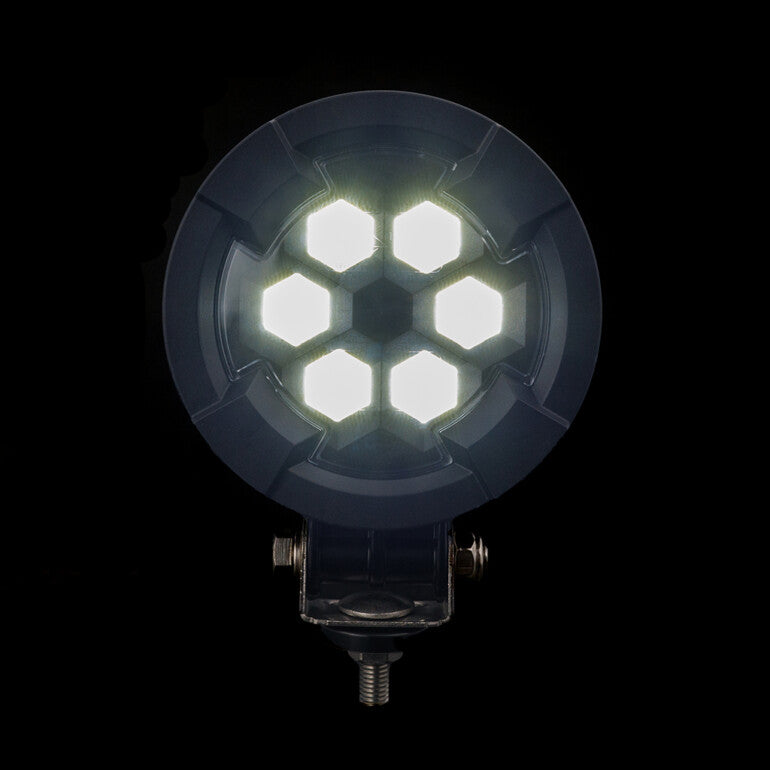

Equipped with 6 high-performance LEDs and a total power of 18 W, the LRD 3181 generates 1600 lumens of bright, cool white light at 6500 K. Its diffused beam pattern ensures even illumination across the workspace, reducing glare and improving visibility during night operations or low-light conditions.

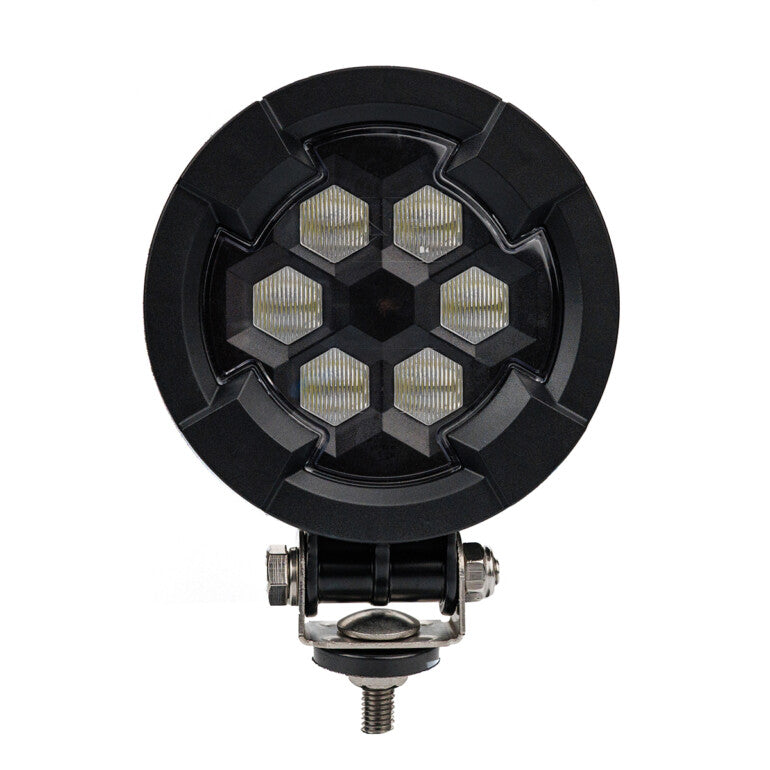

The round housing, enhanced with a protective black grille, offers increased durability and resistance to mechanical damage. An integrated aluminum heat sink efficiently dissipates heat, while the built-in pressure equalizing membrane prevents condensation and stabilizes internal temperature. The impact-resistant polycarbonate diffuser ensures long-lasting, trouble-free operation in demanding working environments.

With a full IP68 protection rating, the LRD 3181 is completely resistant to dust and moisture and operates reliably in temperatures ranging from -22°F to +122°F. R10 certification guarantees electromagnetic compatibility, ensuring interference-free operation with other onboard electronics.

Compact yet powerful, the RAPTOR LRD 3181 is a dependable lighting solution built for performance, safety, and longevity.

Key Features:

• 6 high-efficiency LEDs producing 1600 lm output
• Bright 6500 K cool white light for enhanced visibility

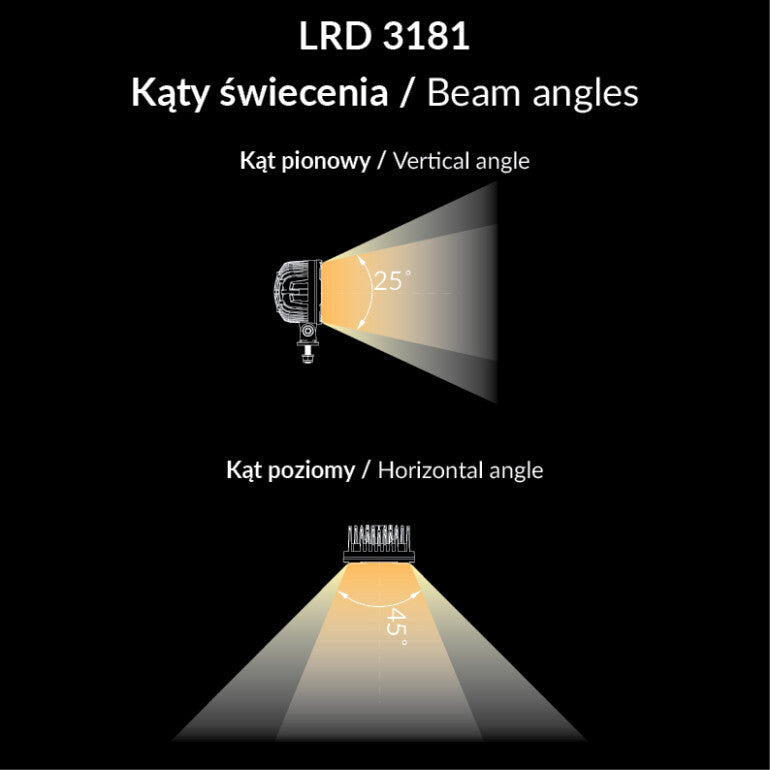

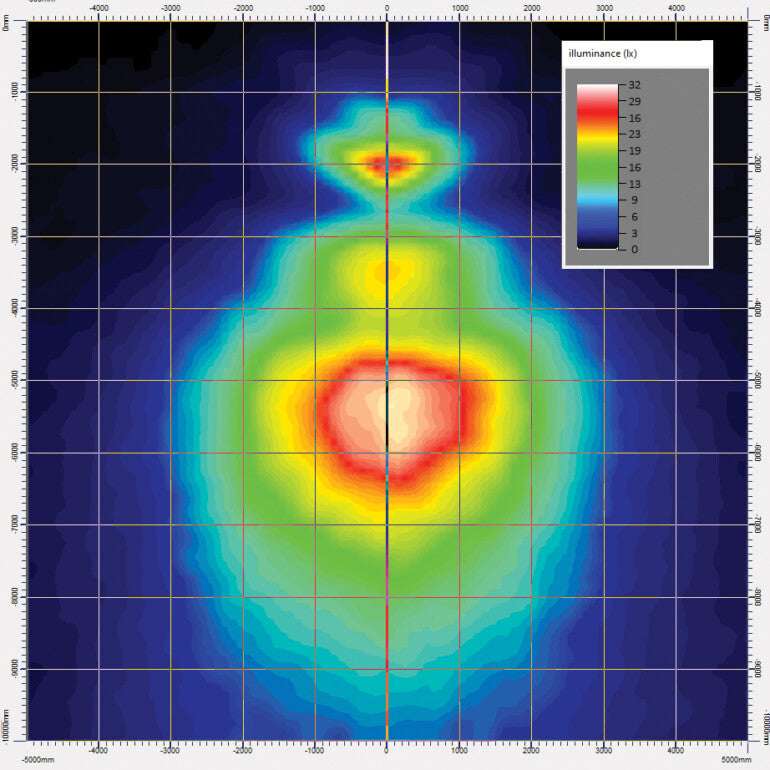

• Diffused beam pattern for wide, glare-free illumination
• Protective black grille for added durability
• Compatible with 12 V and 24 V electrical systems

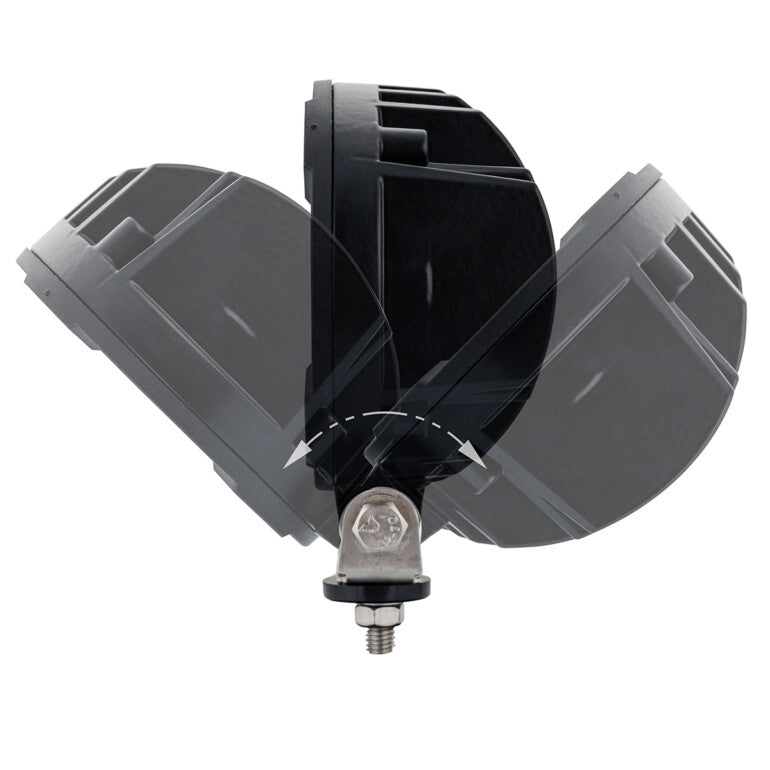

• Adjustable tilting base for precise beam direction
• Durable housing resistant to mechanical damage
• Rear aluminum heat sink for effective thermal management
• Pressure equalizing membrane to prevent condensation

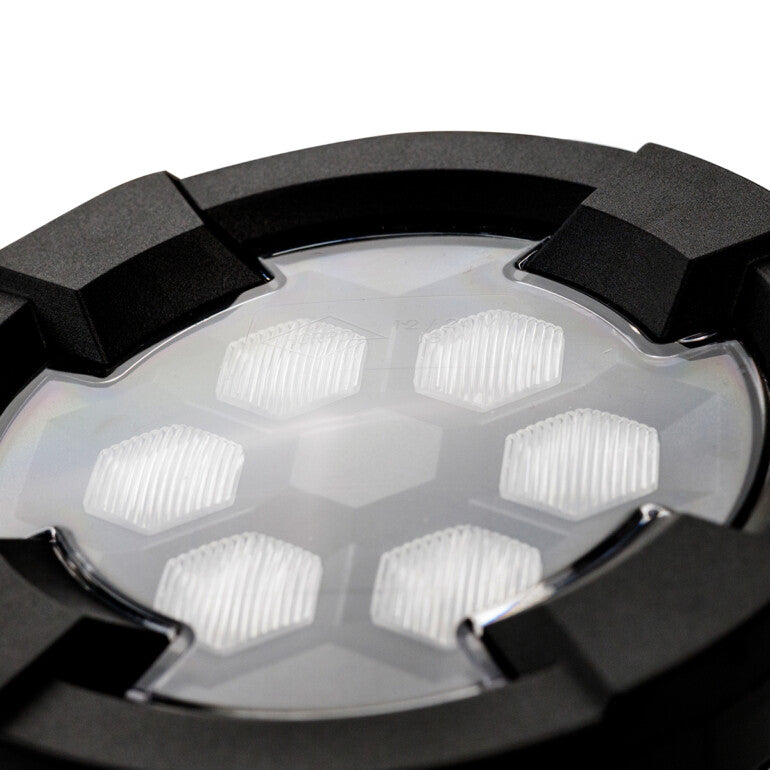

• Impact-resistant polycarbonate diffuser
• IP68-rated – fully dustproof and waterproof
• R10-approved for electromagnetic compatibility

Specifications:

• Light category: Working light
• Light source: LED
• LED quantity: 6
• Luminous flux: 1600 lm
• Power rating: 18 W
• Supply voltage: 12/24 V
• Light colour: White
• Colour temperature: 6500 K
• Beam type: Diffused
• Ingress protection rating: IP68
• Operating temperature range: -22°F to +122°F
• Cable: 2 × 0.75 mm²
• Cable length: 1.5 m
• Mounting side: Universal
• Light group: HOR 156

Applications:

• Agricultural and construction equipment
• Trailers and semi-trailers
• Trucks and transport vehicles
• Tow trucks and roadside assistance vehicles
• Service and specialist vehicles
