Work Lamp RAPTOR (focused light, 2500 lm) LRD 3167

The LRD 3167 RAPTOR LED work lamp is a high-performance lighting solution engineered for the most demanding working environments. Designed for agriculture, construction, heavy transport, and specialist vehicles, this durable lamp delivers powerful, focused illumination exactly where it’s needed.

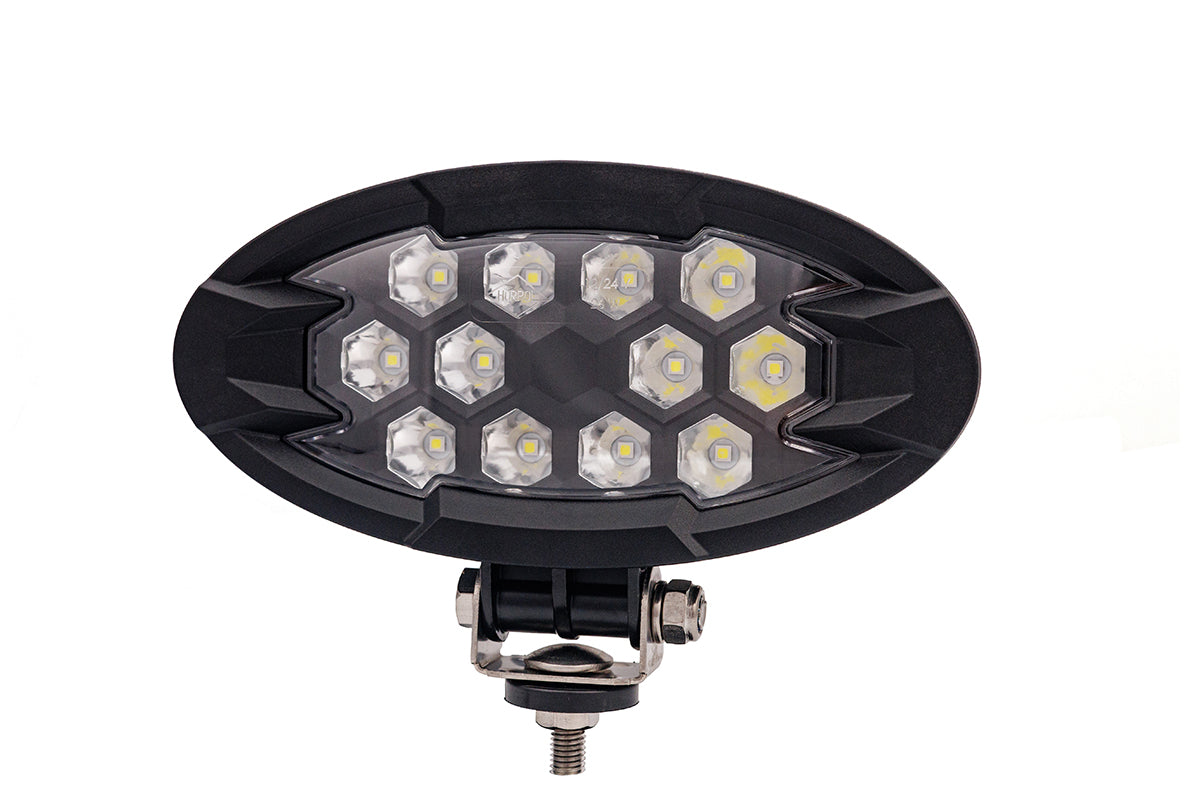

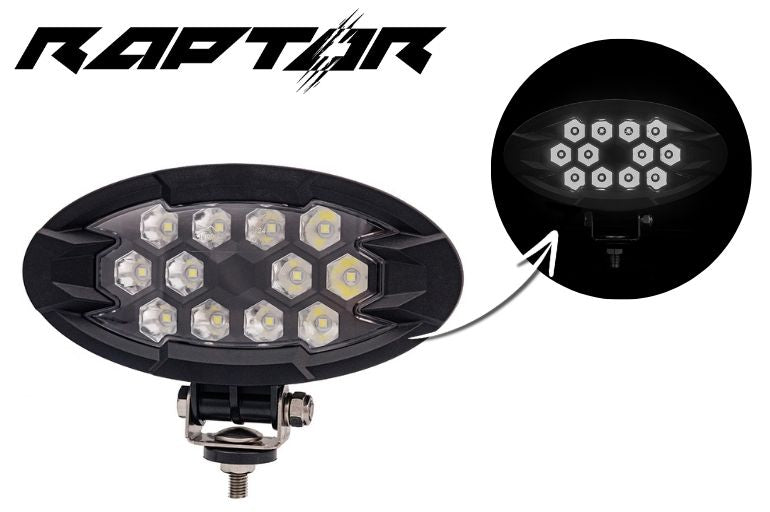

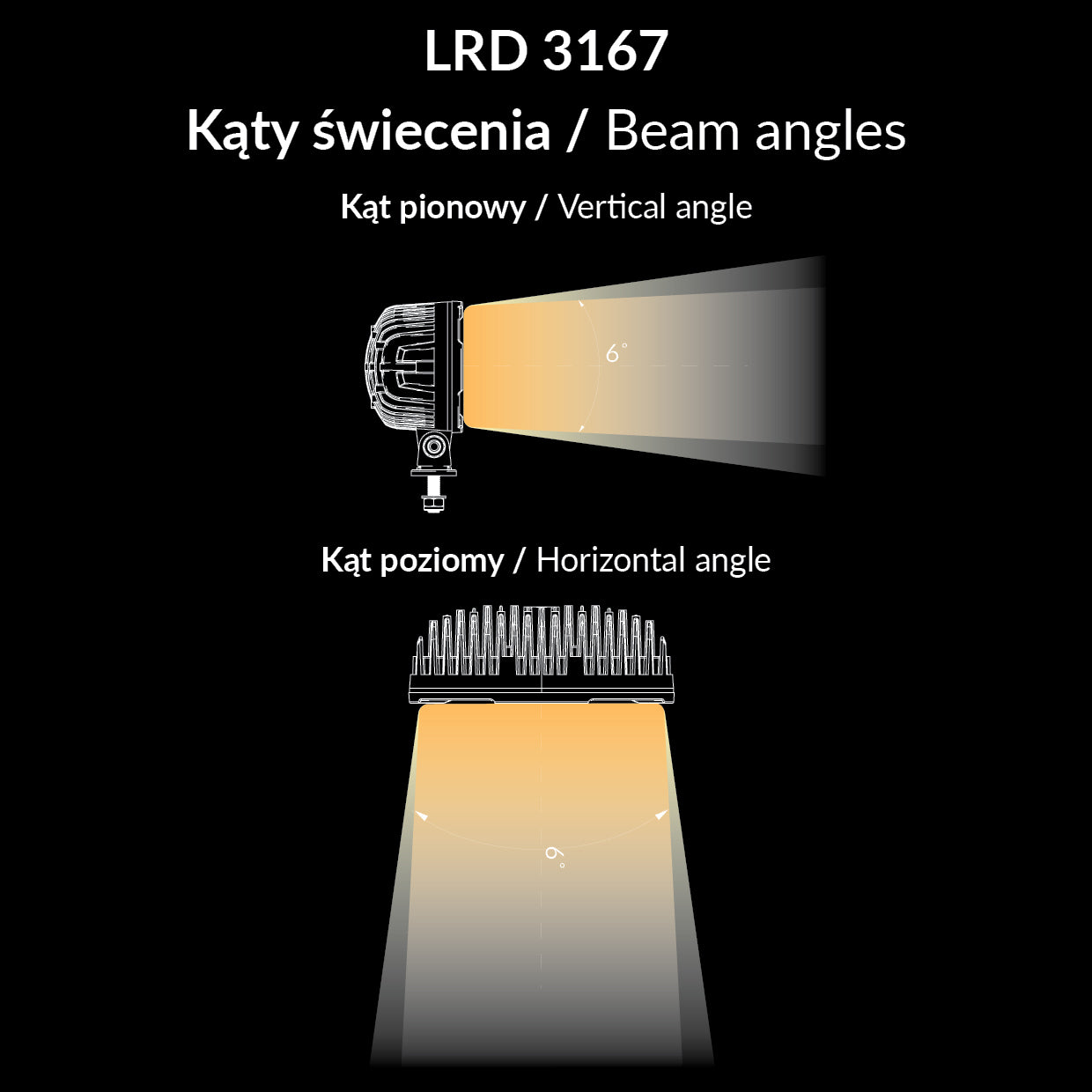

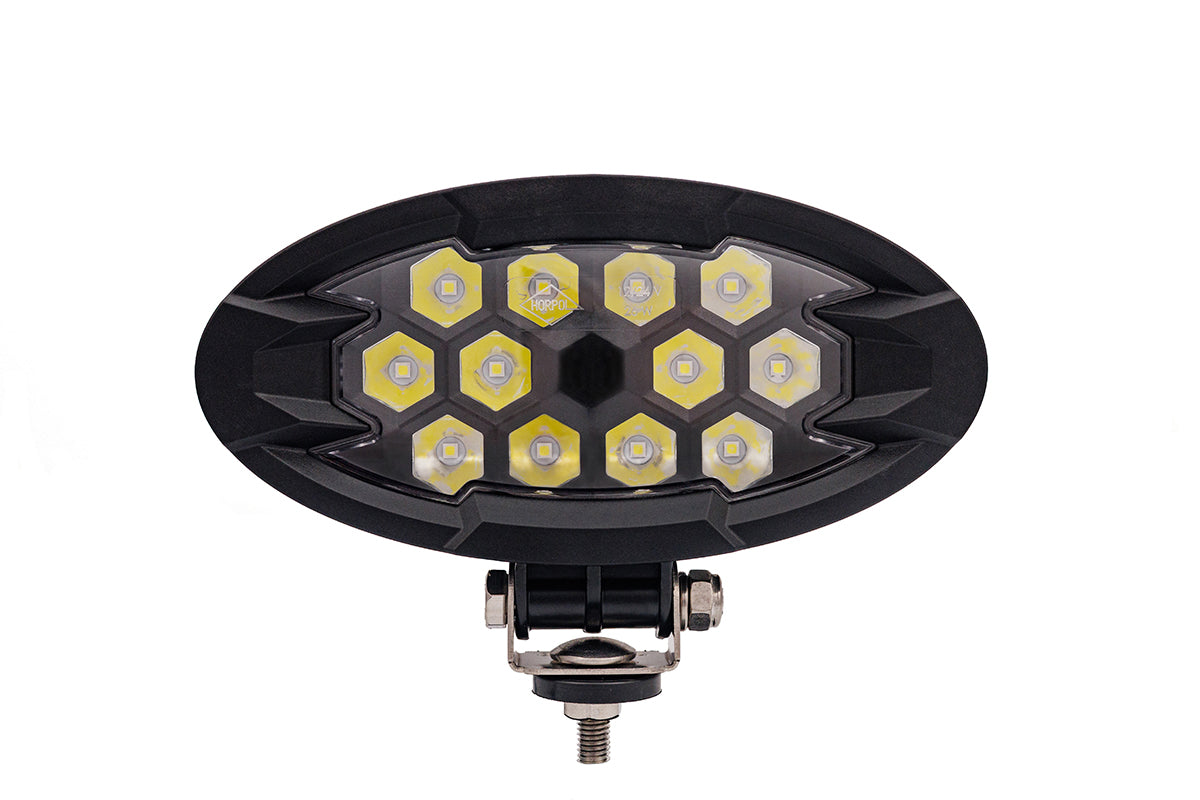

Its oval design combined with a distinctive black protective grille creates a precisely focused beam pattern, ensuring effective long-range visibility while minimizing glare for the operator. This makes it ideal for applications requiring targeted lighting and enhanced precision.

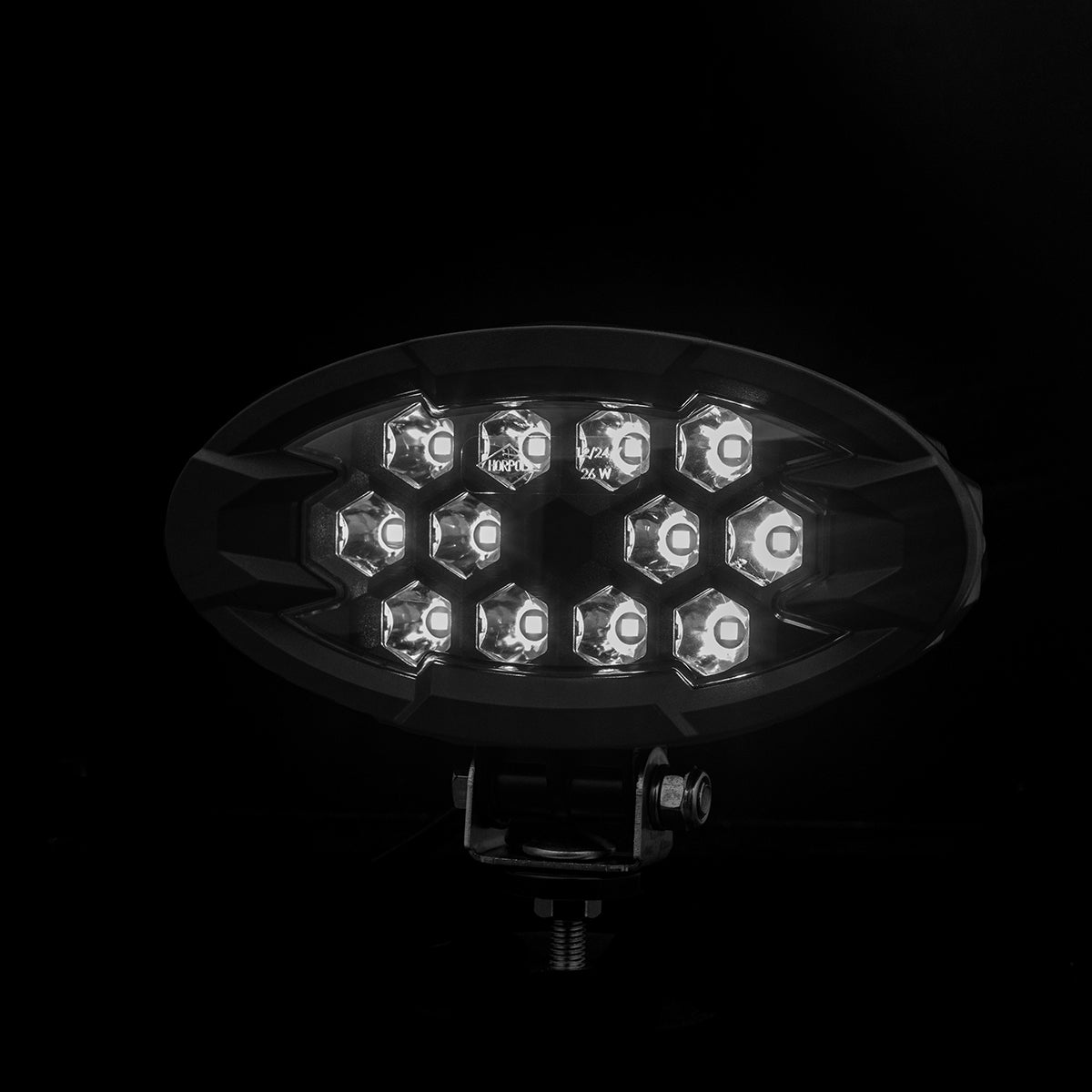

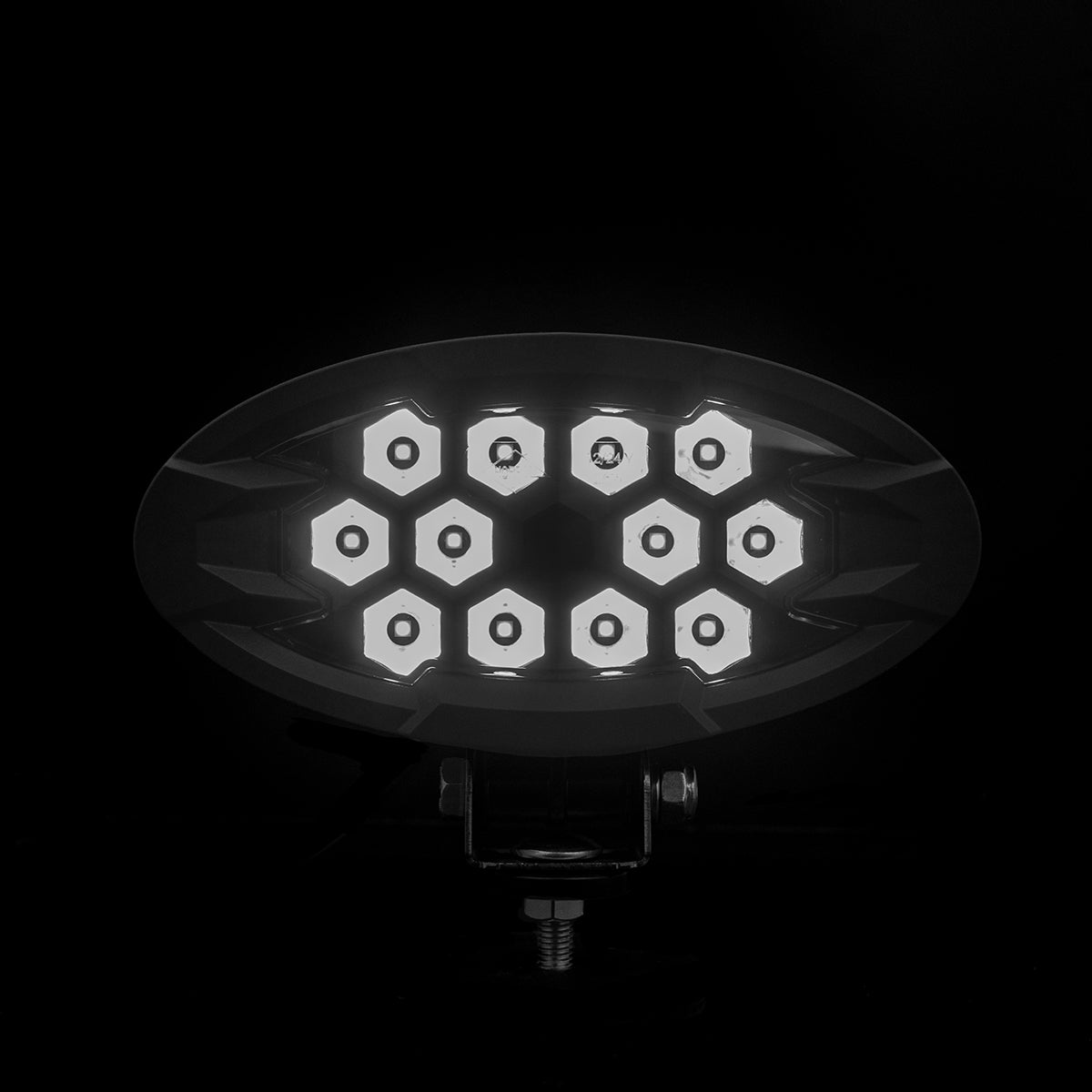

Equipped with 12 high-efficiency LEDs, the LRD 3167 produces an impressive 2500 lumens of output. The 6500 K cool white light, closely resembling natural daylight, improves visibility, reduces eye strain, and enhances safety – even in total darkness and harsh weather conditions.

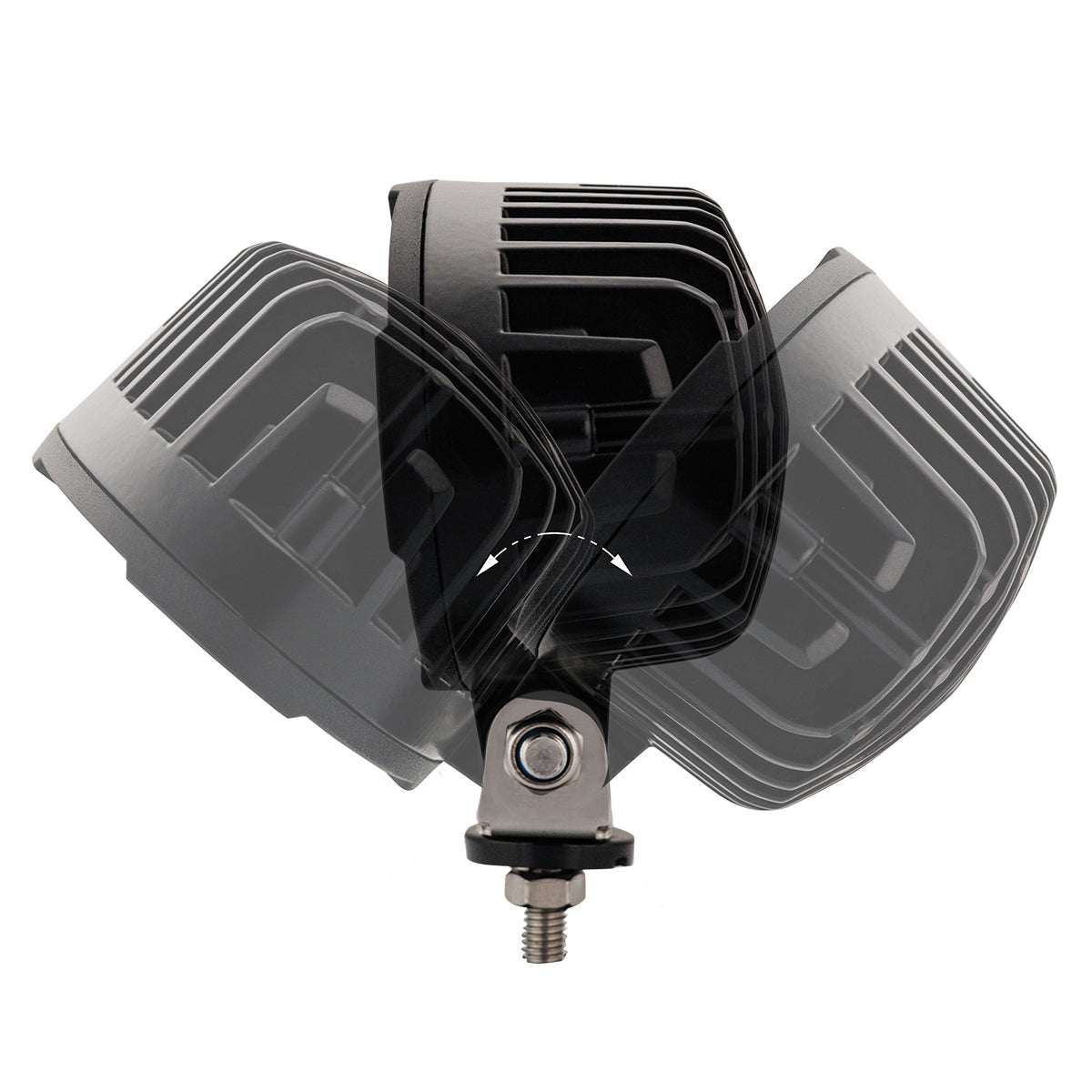

Compatible with both 12 V and 24 V systems, this versatile work lamp can be mounted on either side of a vehicle. The adjustable mounting bracket allows precise beam angle control, ensuring optimal lighting performance for any task.

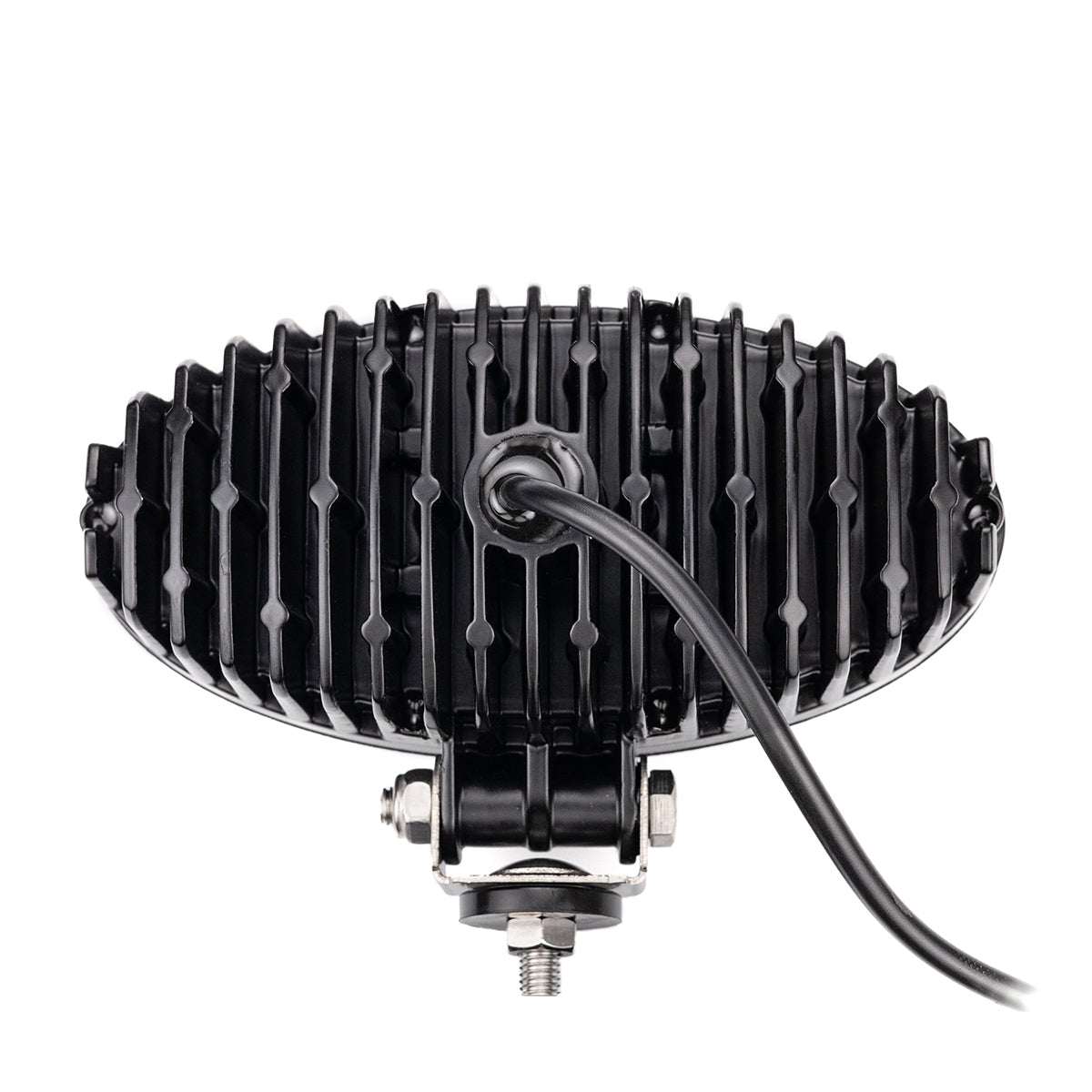

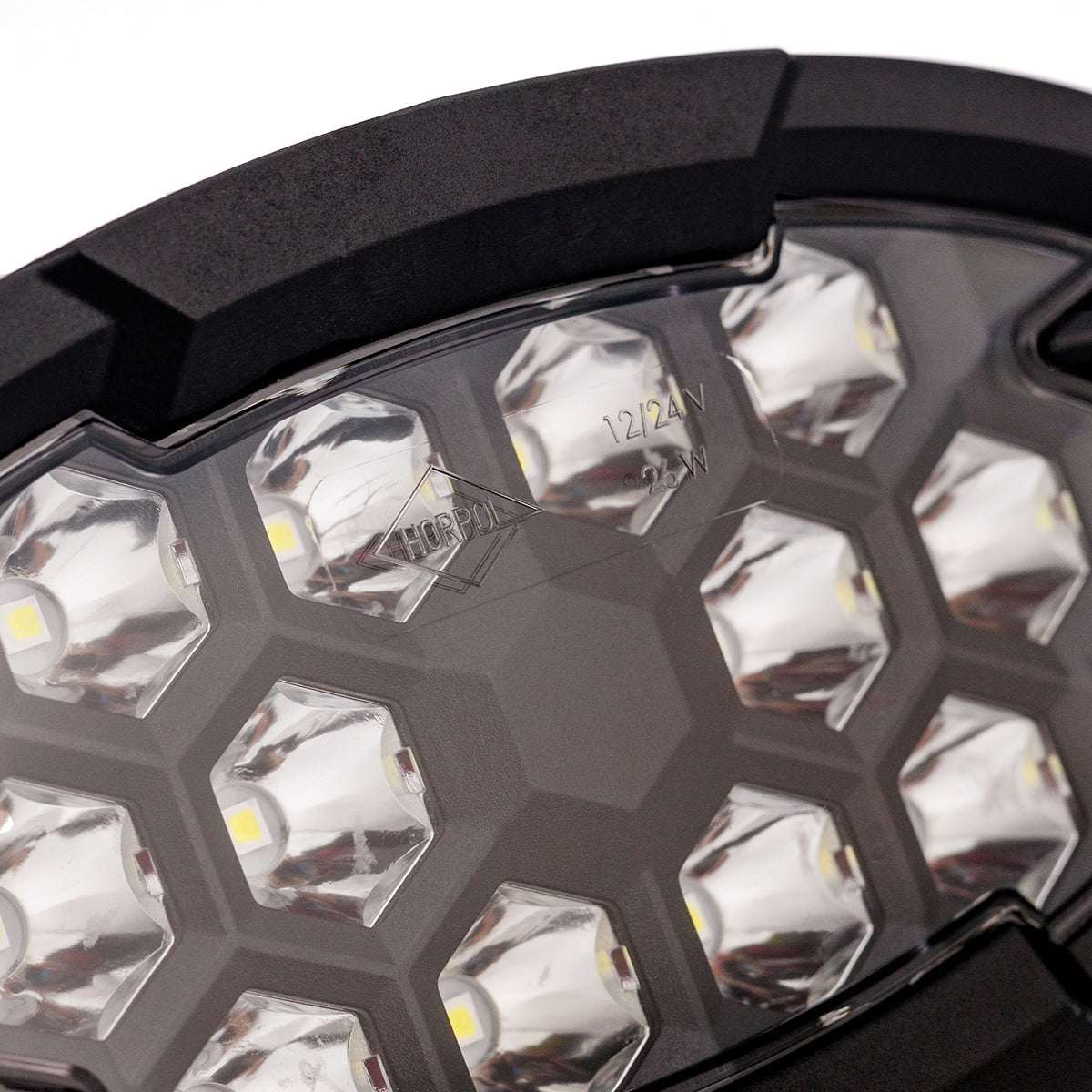

Built for durability, the robust housing protects against mechanical damage, while the rear aluminum heat sink ensures efficient thermal management. The high-quality polycarbonate lens provides excellent impact resistance, and the integrated pressure-equalizing membrane prevents condensation and internal fogging.

With IP68 ingress protection and ECE R10 approval, the LRD 3167 RAPTOR guarantees full resistance to dust and water, reliable operation in temperatures from –22°F to +122°F, and electromagnetic compatibility with other onboard electronics.

When reliability, precision, and performance matter most, the LRD 3167 RAPTOR delivers uncompromising lighting power.

Key Features:

• 12 high-efficiency LEDs delivering 2500 lm output

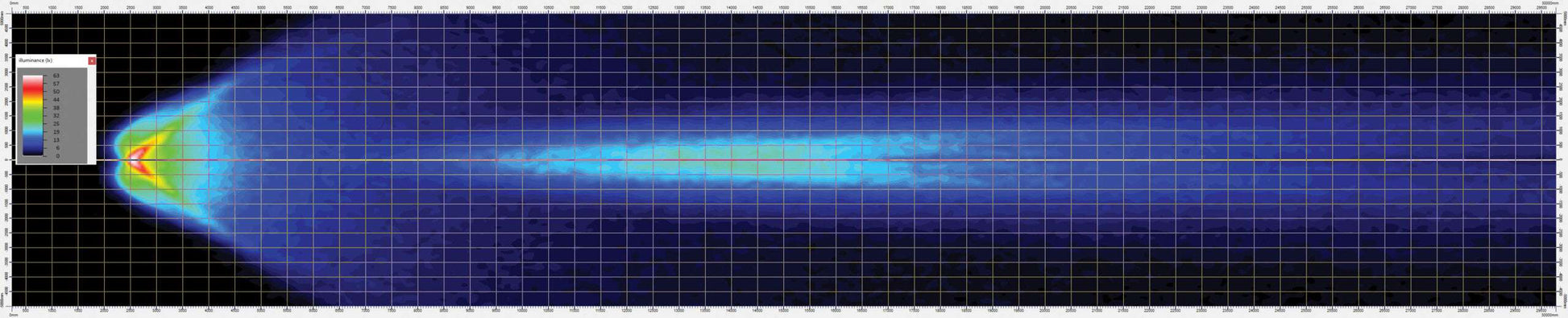

• Focused beam pattern for precise, long-range illumination
• Bright 6500 K cool white light (daylight-like visibility)
• Compatible with 12 V and 24 V electrical systems
• Adjustable mounting bracket for precise beam positioning
• Durable housing with protective black grille
• Rear aluminum heat sink for efficient heat dissipation
• Impact-resistant polycarbonate lens
• Pressure-equalizing membrane to prevent condensation
• IP68-rated – fully dustproof and waterproof
• ECE R10 approved for electromagnetic compatibility

Specifications:

• Light category: Working light
• Light source: LED
• LED quantity: 12
• Luminous flux: 2500 lm
• Power rating: 26 W
• Supply voltage: 12/24 V
• Light colour: White
• Colour temperature: 6500 K
• Beam type: Focused
• Ingress protection rating: IP68
• Operating temperature range: -22°F to +122°F
• Cable: 2 × 0.75 mm²
• Cable length: 1.5 m
• Mounting side: Universal
• Light group: HOR 150

Applications:

1. Agricultural and construction machinery
2. Trailers and semi-trailers
3. Trucks and transport vehicles
4. Recovery vehicles and roadside assistance trucks
5. Special-purpose and service vehicles
