Omega Trobucho Holder Bracket

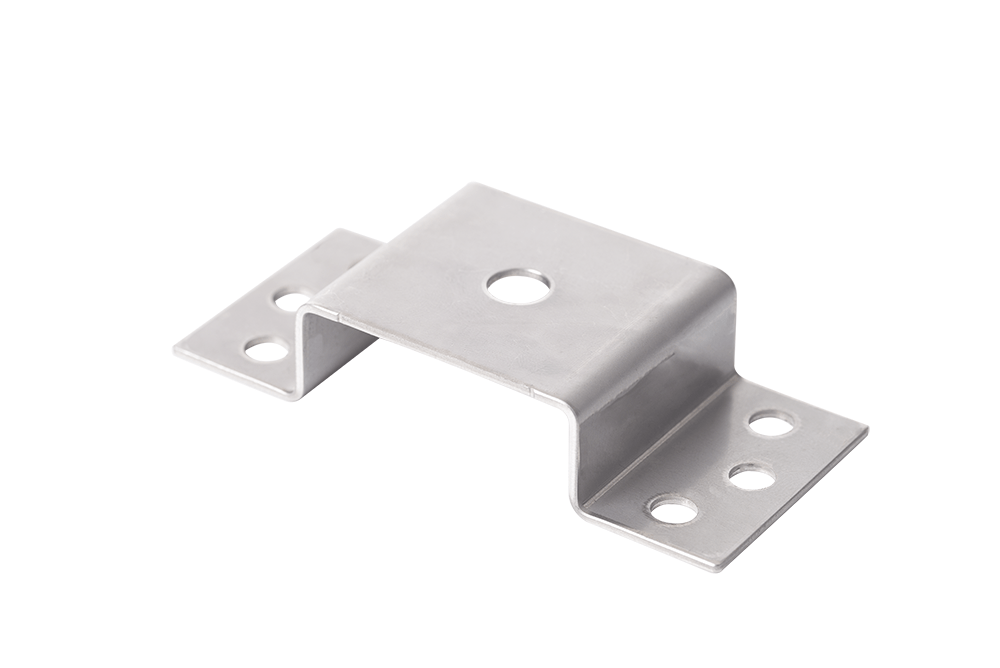

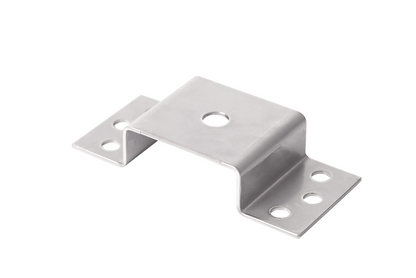

The Omega Trobucho Holder is a precision-engineered stainless steel bracket designed for secure and stable mounting of various components in automotive, industrial, or mechanical systems. With its omega-style profile, this bracket ensures strong structural support while allowing easy installation and alignment thanks to its multiple pre-drilled holes.

Built from high-quality steel and finished for corrosion resistance, the bracket features a central Ø8.5 mm hole and six Ø6.2 mm mounting holes, offering flexibility and compatibility with a wide range of hardware. Its 90 mm length, universal mounting layout, and 17.5 mm height profile make it ideal for heavy-duty and high-vibration environments.

Whether used in lighting systems, mechanical assemblies, or equipment mounts, the Omega Trobucho Holder delivers the durability and reliability you can trust.

Key Features:

• Omega-style mounting bracket for strong and stable support
• Constructed from durable, corrosion-resistant steel
• Central Ø8.5 mm hole for main mounting bolt
• Six additional Ø6.2 mm holes for flexible attachment
• Suitable for industrial, mechanical, and automotive applications
• Universal fitment with a compact, low-profile design
• Pre-drilled layout for quick and easy installation

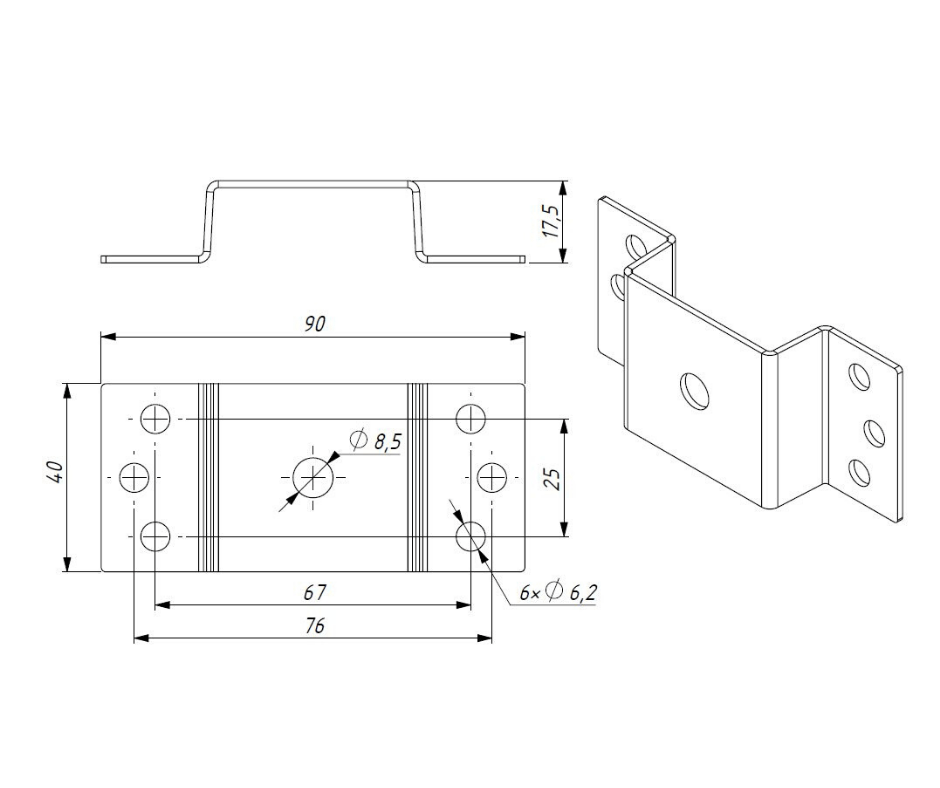

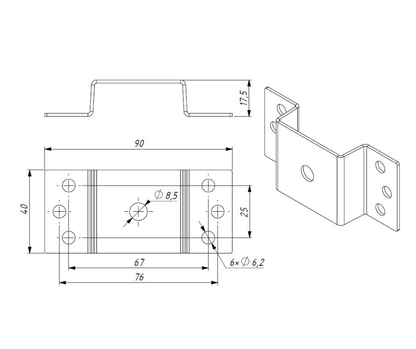

Specifications:

• Material: Steel (Corrosion-Resistant Finish)
• Overall Length: 3.54 in (90 mm)
• Overall Width: 1.57 in (40 mm)
• Overall Height: 0.69 in (17.5 mm)
• Mounting Hole Spacing (Outer Rows): 2.99 in (76 mm)
• Mounting Hole Spacing (Inner Rows): 2.64 in (67 mm)
• Mounting Hole Pitch (Per Foot): 0.98 in (25 mm)
• Center Hole Diameter: 0.33 in (Ø8.5 mm)
• Mounting Hole Diameter: 0.24 in (6 × Ø6.2 mm)
• Mounting Type: Omega profile with flat base
• Cable Management: No
• Application: Universal mounting bracket for mechanical and electrical systems
