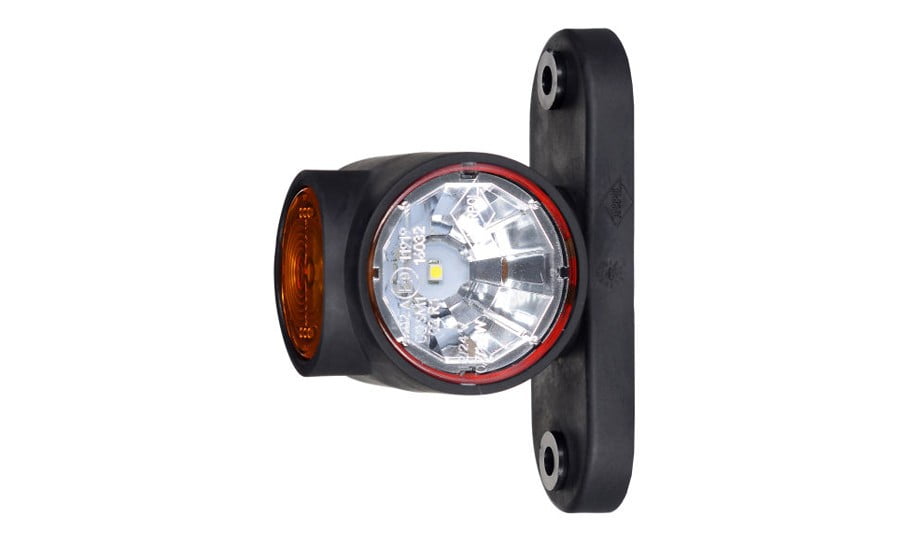

Short LED Side Outline Marker Light LD 2186

Upgrade your vehicle's visibility and safety with the Short LED Outline Marker Light LD 2186, a compact yet powerful three-function LED marker light. Designed with a short, straight arm and universal mounting side, this versatile lamp delivers clear front, side, and rear illumination in a single unit.

Perfect for trailers, trucks, agricultural machinery, and commercial vehicles, the LD 2186 operates on 12/24 V and uses branded high-efficiency LEDs to deliver bright light with minimal power draw. The integrated reflector and precision-engineered diodes enhance your vehicle's outline, increasing road safety and giving it a sharp, modern appearance.

Whether you're outfitting new equipment or replacing existing lights, the LD 2186 marker lamp is a reliable choice for professionals who demand both performance and durability.

Key Features:

• 3-in-1 lighting: front (white), side (amber), and rear (red) marker lights
• Universal 12/24 V compatibility for seamless installation
• Short, straight arm with 1.97 ft (0.6 m) cable for compact mounting
• Branded LEDs with integrated reflector for superior brightness and visibility
• Operates reliably in extreme temperatures: from -22°F to +122°F (-30°C to +50°C)
• Suitable for a wide range of vehicles: trailers, trucks, farm equipment & more
• Universal mounting side for flexible application
• Low power consumption with dependable performance

Specifications:

• Light Group: HOR 77
• Light Type: LED Marker Light
• Total LED Count: 4
• Voltage: 12/24 V
• Power Rating: 0.7 W / 1.4 W
• Ingress Protection: [Not specified – recommend confirming IP rating if available]
• Operating Temperature: -22°F to +122°F (-30°C to +50°C)
• Cable Specs: 1.97 ft (0.6 m) length

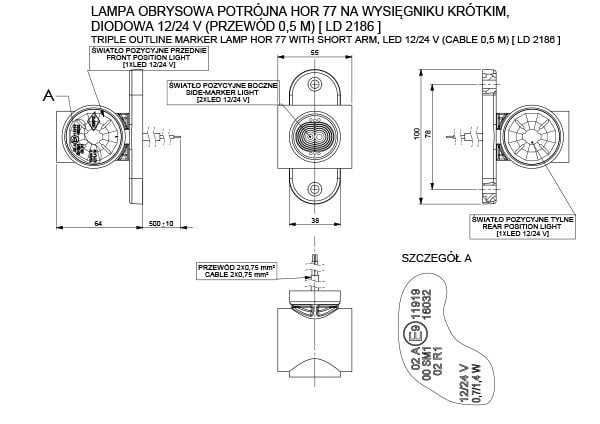

• Overall Height: 2.52 in (64 mm)
• Lamp Head Width: 2.17 in (55 mm)
• Mounting Base Length: 3.94 in (100 mm)
• Mounting Hole Spacing: 3.07 in (78 mm)
• Mounting Side: Universal
• Arm Type: Short, straight
• LED Light: Yes

Functions:

• Front position light (white)

• Side marker light (amber)

• Rear position light (red)
