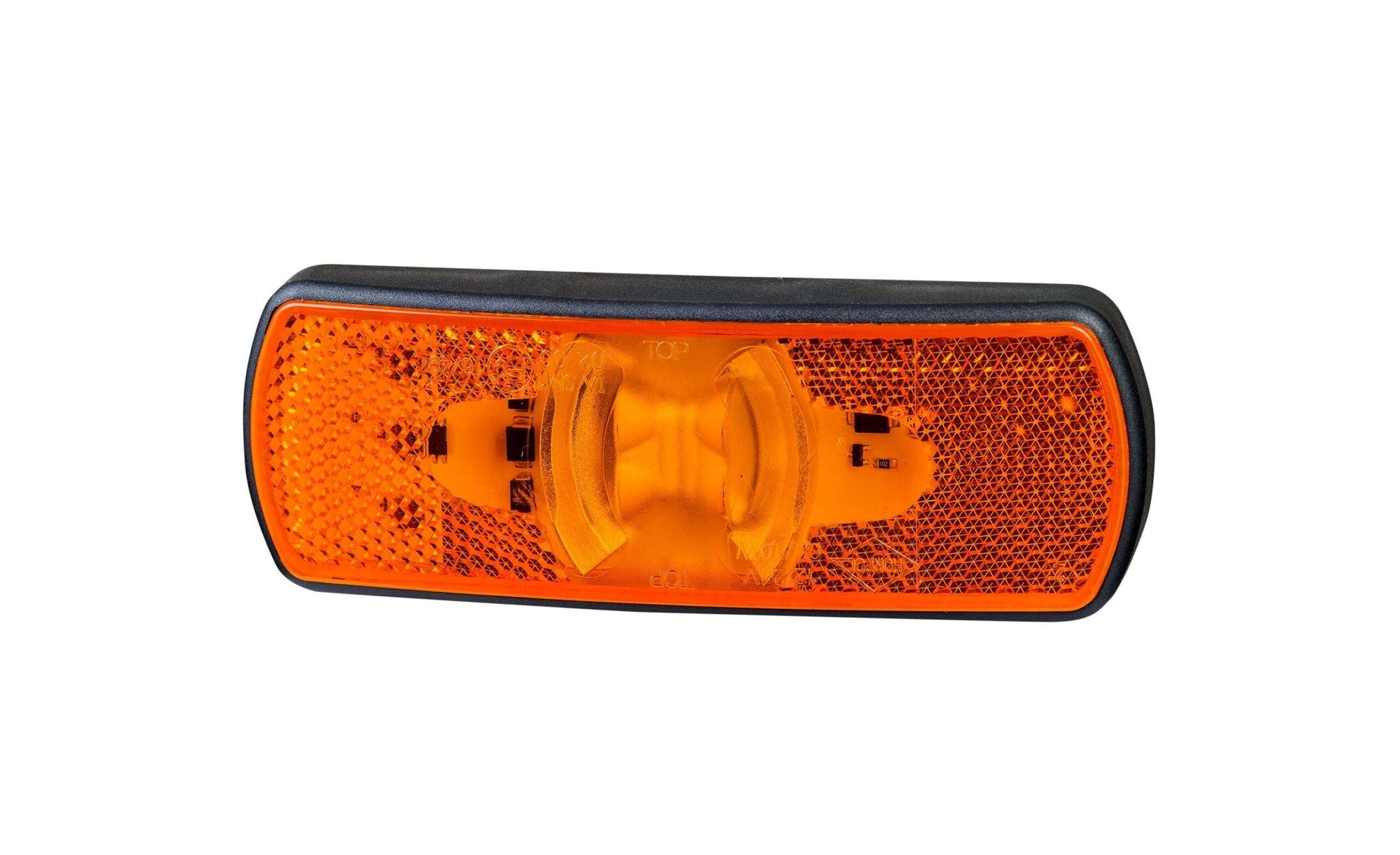

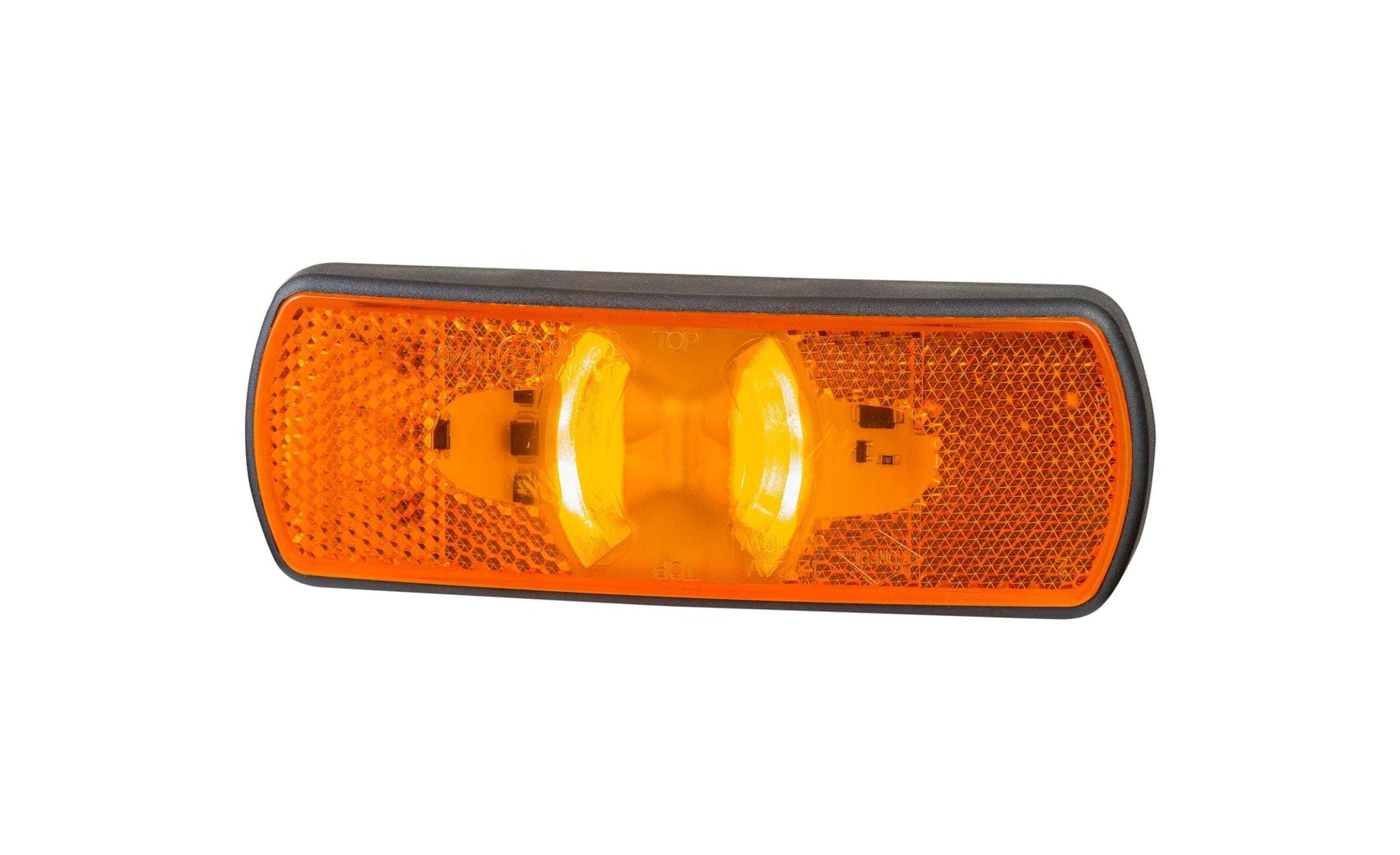

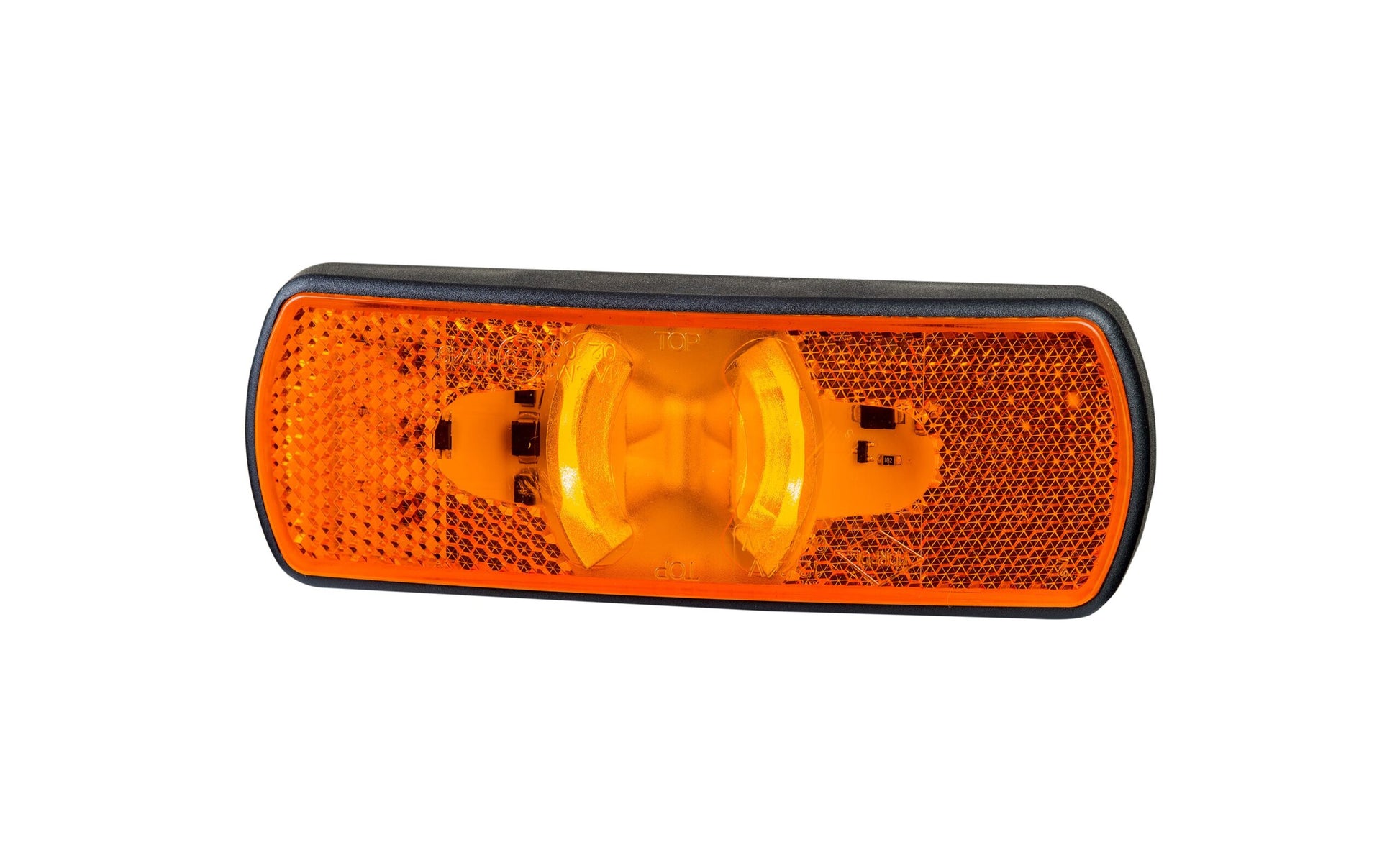

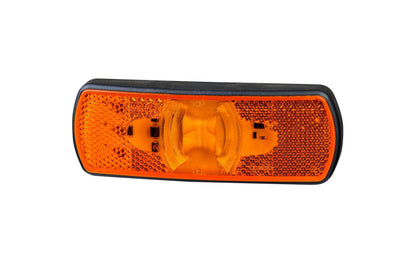

Marker lamp with indicator and reflector LKD 2218

The LKD 2218 Marker Lamp with Indicator and Reflector (Category 5) is a compact, multifunction LED lighting solution designed to improve vehicle visibility and safety. Manufactured by HORPOL, this outline lamp combines a bright side marker, integrated turn signal (cat. 5), and built-in reflector in one sleek, modern housing.

With its attractive low-profile design and concealed mounting system, the LKD 2218 delivers a clean, professional finish on trucks, trailers, and commercial vehicles. Advanced LED technology ensures strong, energy-efficient illumination with long service life. Built to perform in demanding environments, the lamp features a fully sealed IP68 construction and reliable operation across extreme temperatures.

Easy to install and engineered for durability, the LKD 2218 is an ideal upgrade for fleets and vehicle builders seeking dependable, compliant lighting in a compact form factor.

Key Features:

• Multifunction lamp: side marker, turn signal (cat. 5), and reflector
• Modern, attractive low-profile design

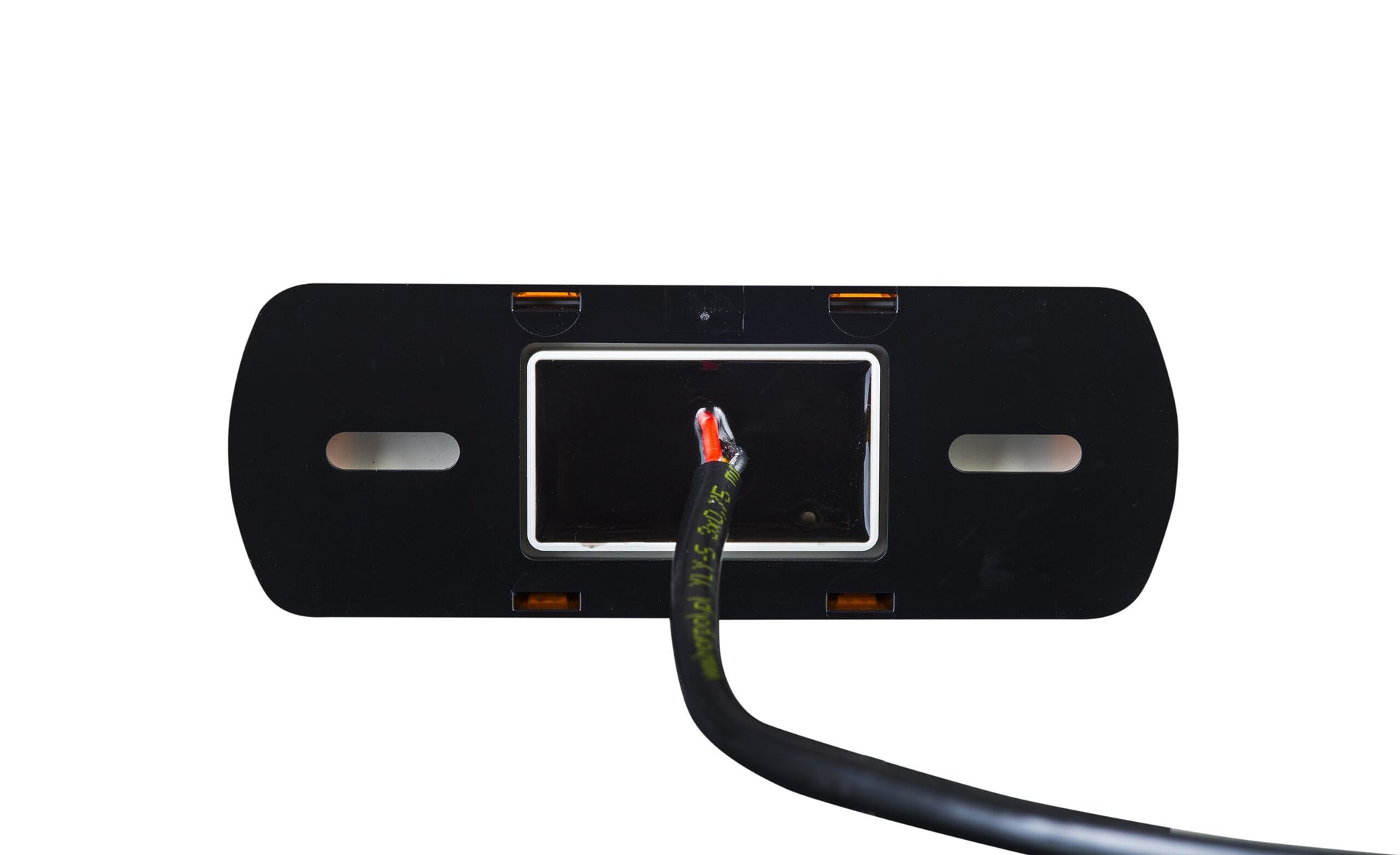

• Concealed fastening for a clean installation look
• High-efficiency LED technology with 4 LEDs
• Integrated reflector enhances passive safety
• Universal mounting for versatile vehicle fitment
• Fully sealed IP68 housing for water and dust resistance
• Designed for quick and easy installation
• Suitable for 12V and 24V systems
• Built for trucks, trailers, and commercial vehicles

Specifications:

• Model: LKD 2218
• Lamp group: HOR 85
• Lamp category: Outline
• Number of LEDs: 4
• Side marker light: Yes
• Side indicator: Yes (Turn signal cat. 5)
• Reflector: Yes
• Light source: LED (diode lamp)
• Supply voltage: 12/24V
• Operating temperature range: -30°C to +50°C
• Wire: 3 × 0.5 mm²
• Cable length: 0.5 m
• Mounting: Universal assembly
• Tightness class: IP68

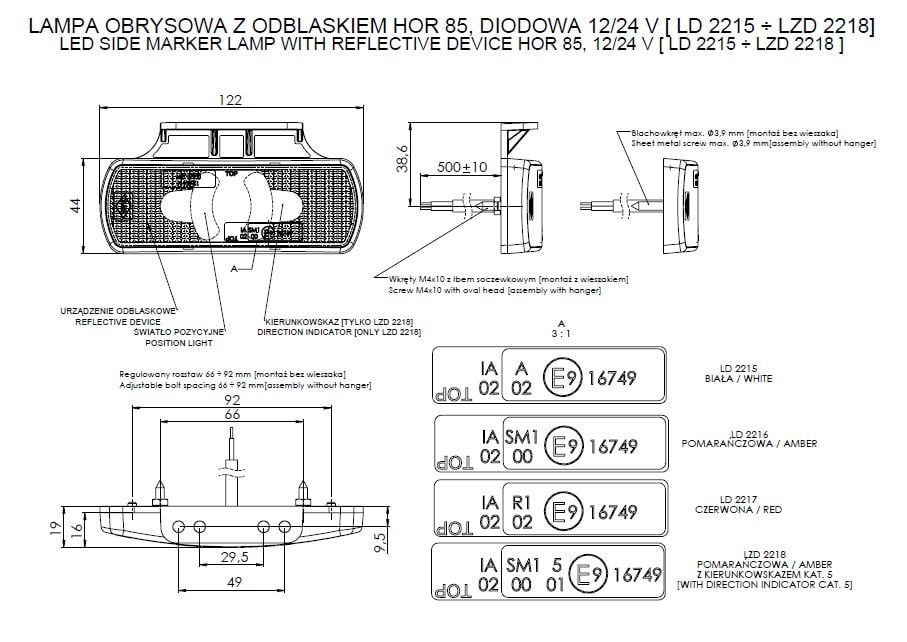

• Dimensions: 122 mm × 44 mm × 16 mm

Rated power:

• SM1: 1.2/2.4 W
• Cat. 5: 2/4.3 W
