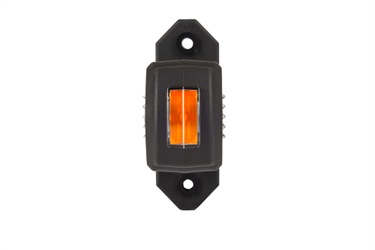

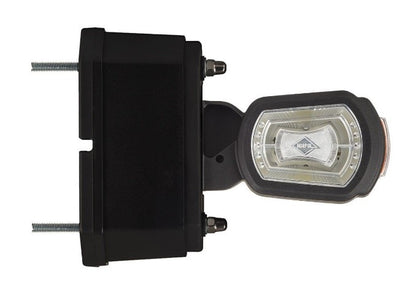

Short Side Arm Outline Marker Light with Reversing Sensor Module Set LDCC 2794 & LDCC 2795

Marker Light with Reversing Sensor Module:

Enhance your vehicle's safety and functionality with the Marker Light with Reversing Sensor Module LDCC 2794 and LDCC 2795. This innovative device combines high-visibility LED marker lights with an integrated ultrasonic reversing sensor, providing superior illumination and added security during reverse maneuvers.

Works on:

• Delivery Vans
• Sprinter Vans
• Straight Trucks
• Box Trucks
• Pick-Up Trucks
• Buses

DISCLAIMER: DOES NOT YET WORK ON SEMI TRUCKS OR ANY HEAVY DUTY TRUCK THAT DETACHES FROM A TRAILER Coming Soon to Semi-Trucks!

Key Features:

• Three-functional marker lamp with short straight arm (HOR 101), integrated with a reversing sensor module, diode 12/24 V.
• Front position light: 1 white LED (6500 K cool white)
• Rear position light: 4 red LEDs
• Comes with top mounting brackets as well

Side marker light: 2 white LEDs (2700 K warm white

Technical Specifications:

• Light Group: HOR 101
• LED Quantity: 7
• Light Category: Marker
• Supply Voltage: 12/24 V
• Front Clearance Light: Yes
• Light Color: White / Amber / Red
• Power Rating: 0.5/1 W
• Rear Clearance Light: Yes
• Operating Temperature Range: From -22°F to +122°F
• Cable Length: 6 FT
• Side Marker Light: Yes
• Side: Left
• Arm: Yes
• LED Light: Yes
• Ingress Protection Rating: IP 68
• Reversing Sensor Module: Yes

HOW IT WORKS: When the reverse gear is engaged, the sensor detects obstacles behind the vehicle and provides visual feedback via the marker light.

• No Obstacle: Light stays steady.
• Obstacle Detected: Light flashes, increasing in frequency as the vehicle gets closer, providing a visual cue to the driver in his mirrors.
• Critical Distance and Proximity (2.62 FT): Light stays steady again, signaling the need to stop to prevent collision.

This system ensures enhanced safety by alerting drivers to obstacles during reverse maneuvers.
