ROADLITES
Rear 3 Function LED Light LZD 2964
Rear 3 Function LED Light LZD 2964
Regular price
$44.75 USD
Regular price
Sale price
$44.75 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

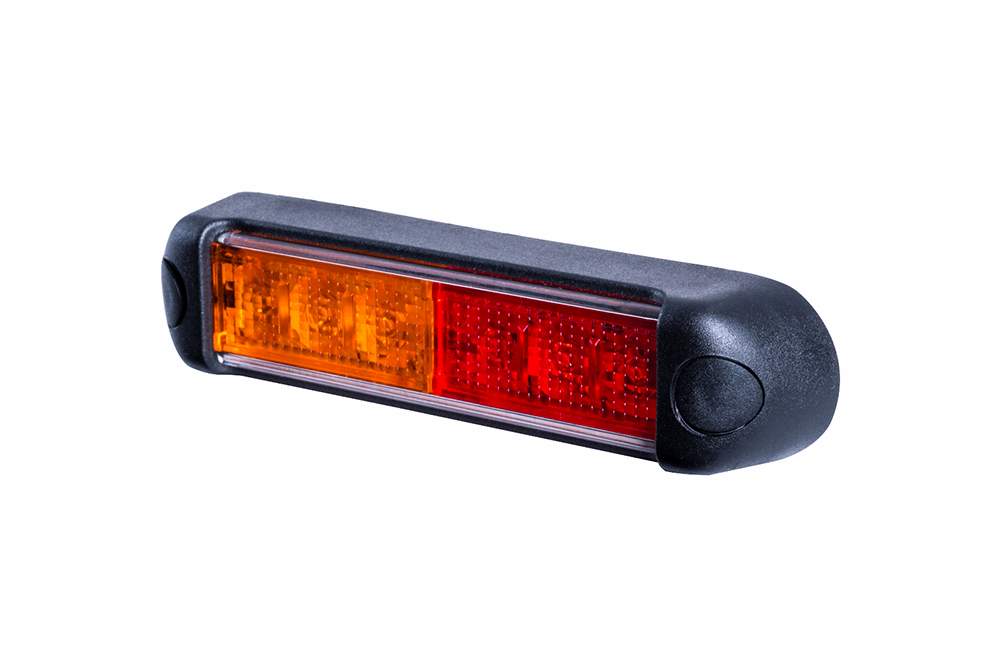

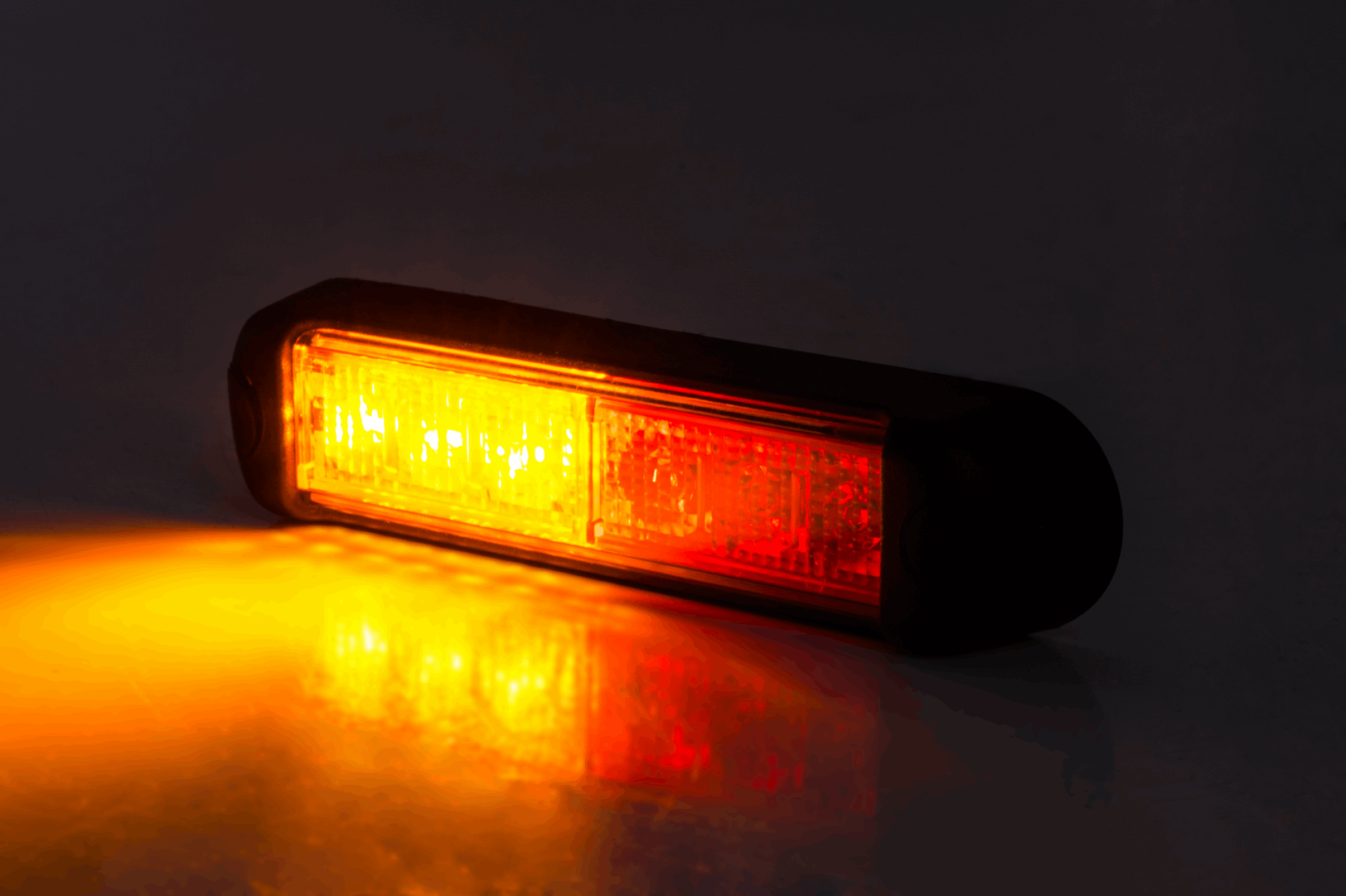

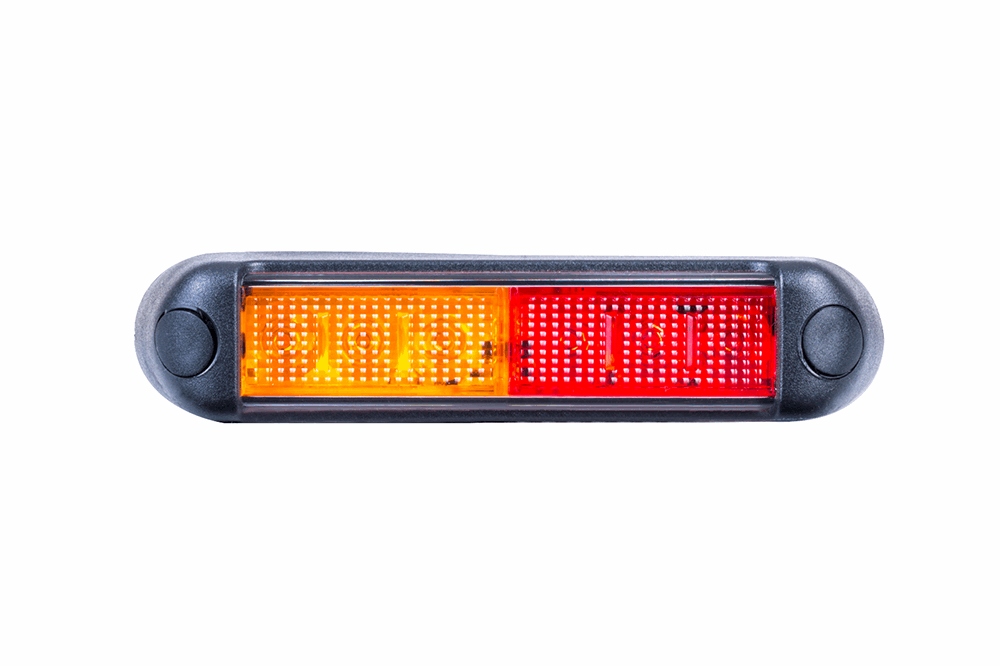

The RL 2964 Rear Multifunction LED Light is a small but powerful lighting solution designed for versatility and performance. Built to withstand the tough conditions of agricultural machinery, construction vehicles, trailers, quads, tow trucks, and special-purpose equipment, this lamp offers three essential rear lighting functions in one compact design: position light, brake light, and direction indicator.
Despite its minimal footprint, the RL 2964 emits bright and clear signals, meeting all safety and visibility requirements. It is certified for European road use and electromagnetic compatibility (EMC), ensuring worry-free operation. With universal mounting options (vertical or horizontal, flat-surface or holder-mounted), and 12/24V compatibility, it offers complete flexibility for installation in a wide variety of vehicle types.
Backed by IP68-rated protection, this lamp is fully sealed against dust and water, ensuring long-term durability in all weather conditions.
Key Features:
- 3-in-1 multifunction LED lamp: position, brake, and indicator
- Compact and space-saving design
- Suitable for construction vehicles, trailers, quads, and agri-machinery
- Mounts vertically or horizontally; surface or bracket mount
- Bright, clear light output with low energy consumption
- Dual voltage: works with 12V and 24V systems
- Fully sealed – IP68 rated for water and dust protection
- Certified for European use (ECE) and EMC-compliant
- Includes two-side mounting holder for added flexibility
Specifications:
- Model: RL 2964
- Light Functions: Position, Brake, Direction Indicator
- LED Quantity: 6
- Supply Voltage: 12/24 V
- Cable: 4×0.5 mm²; 1 m length
- Operating Temperature: -22°F to +122°F
- Ingress Protection: IP68

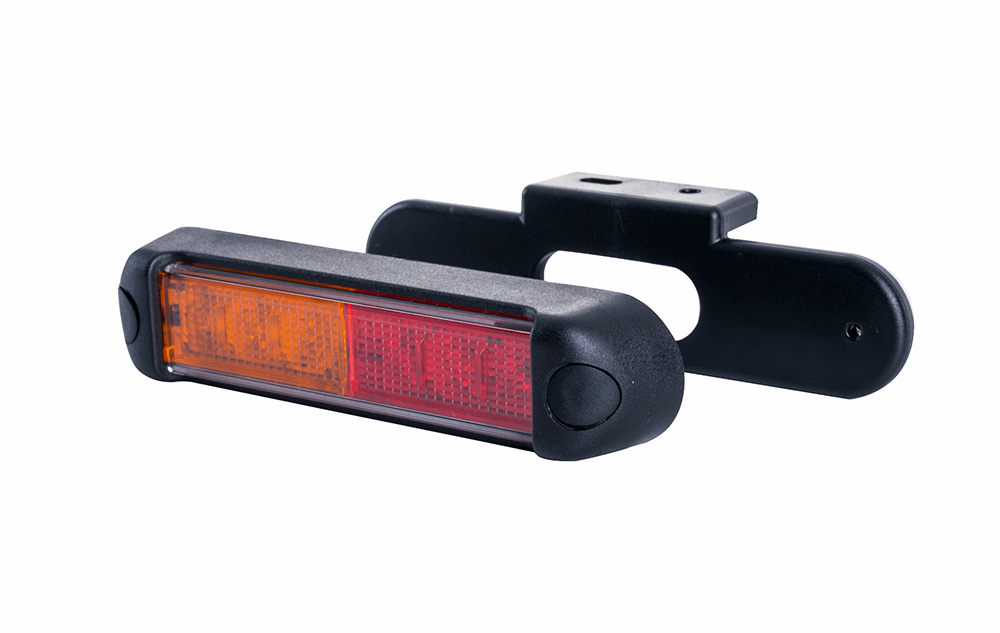

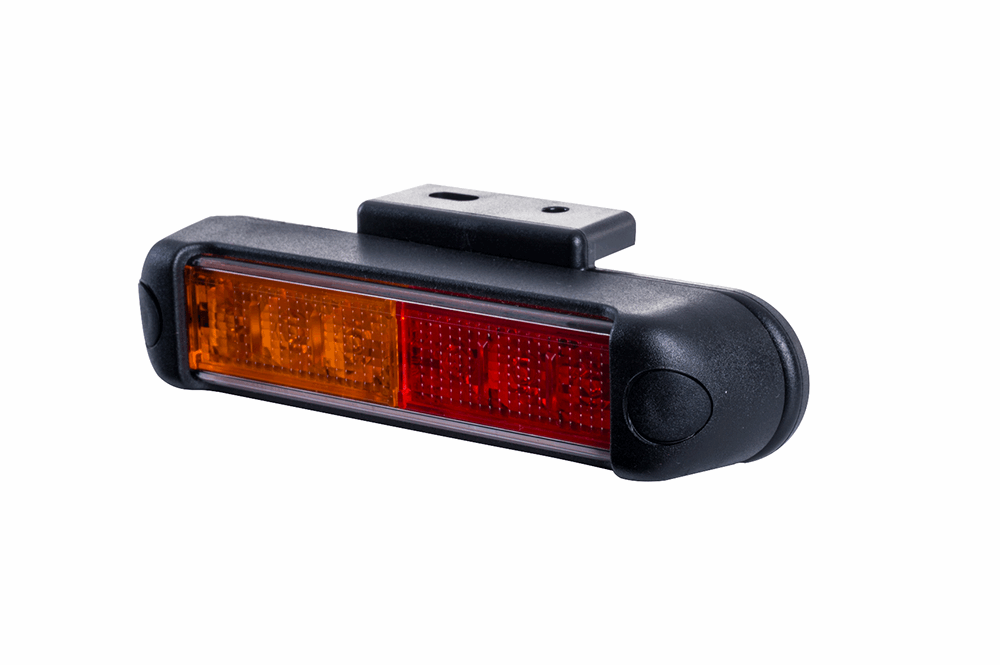

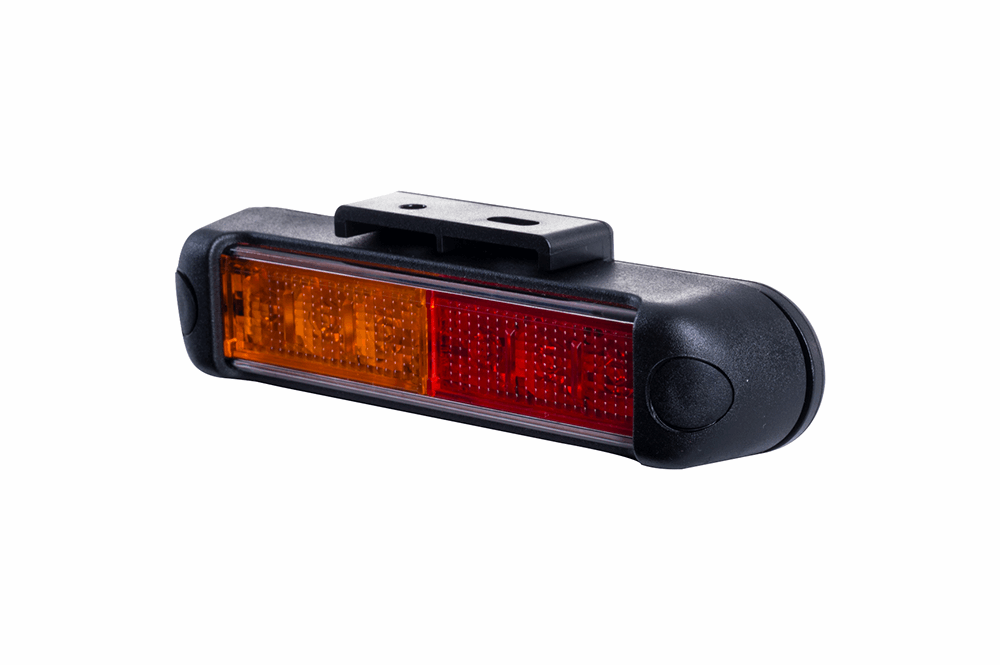

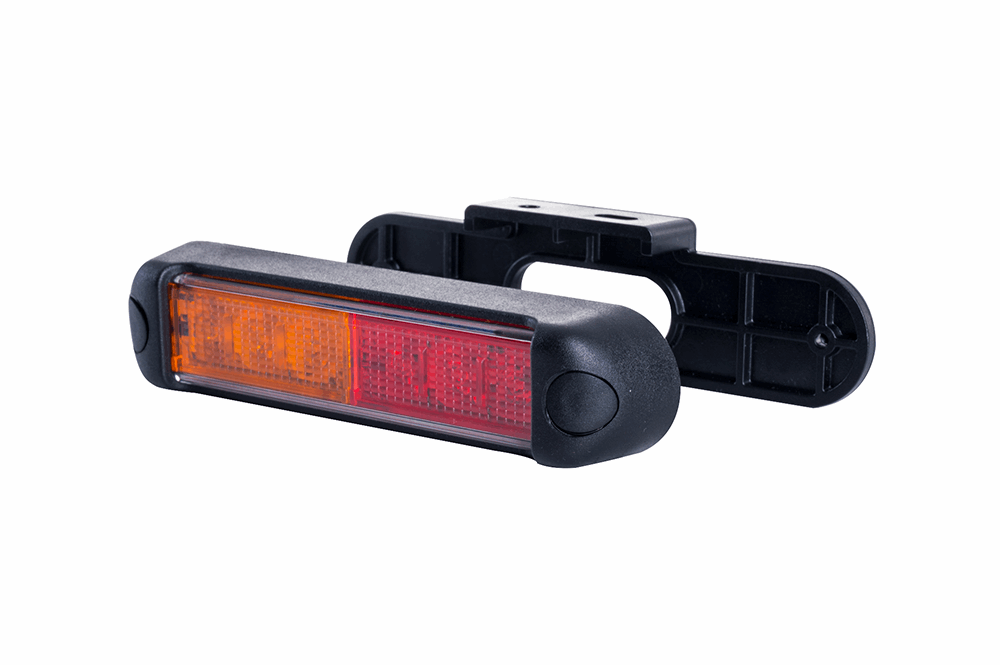

- Mounting Options: Flat surface or with included two-side holder
- Light Group: HOR 128
- Light Category: Multifunction Rear
- Lamp Type: LED
- Side: Universal
- Certifications: ECE Approved, EMC Compliant
Power Consumption at 12V:

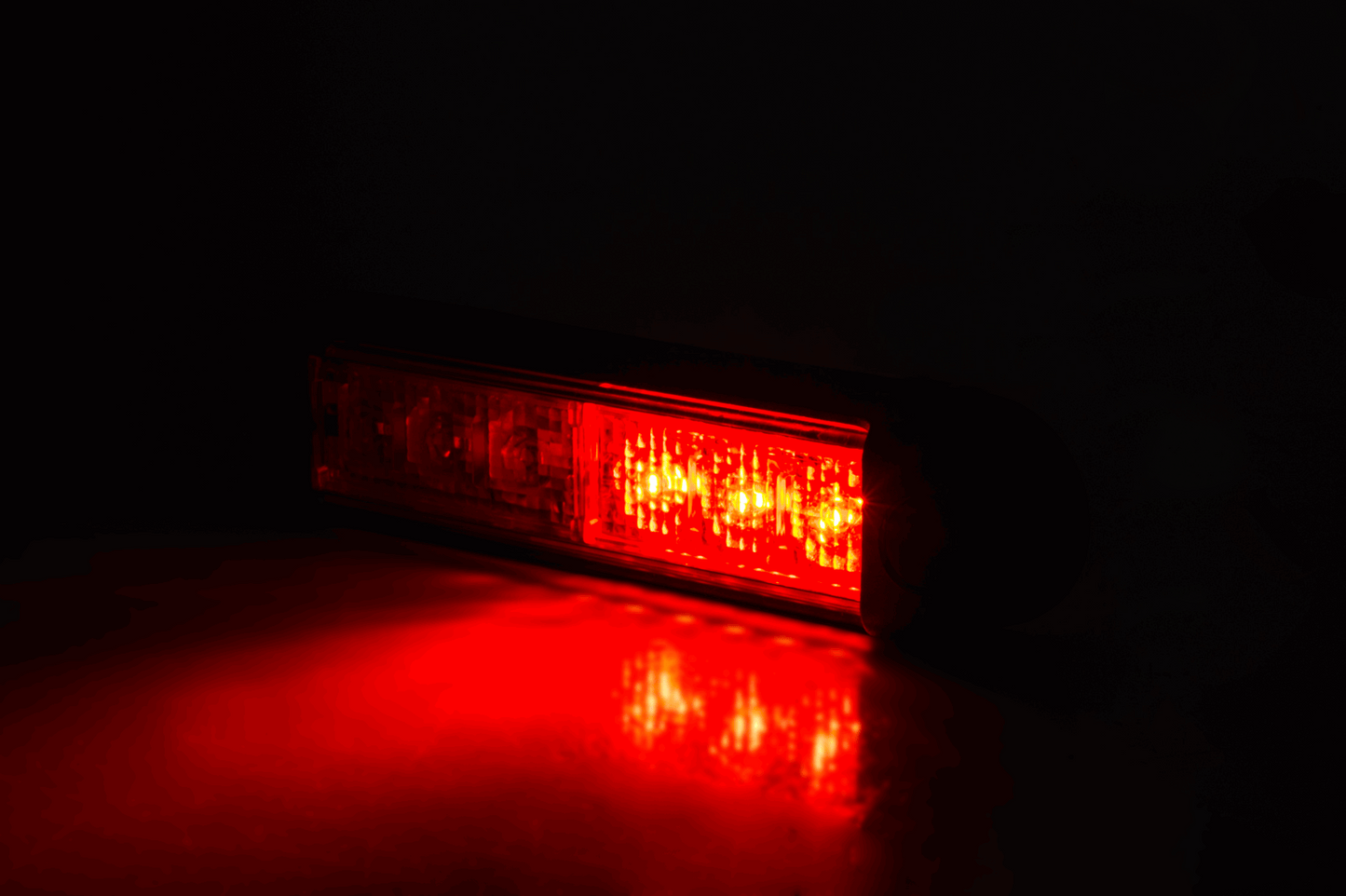

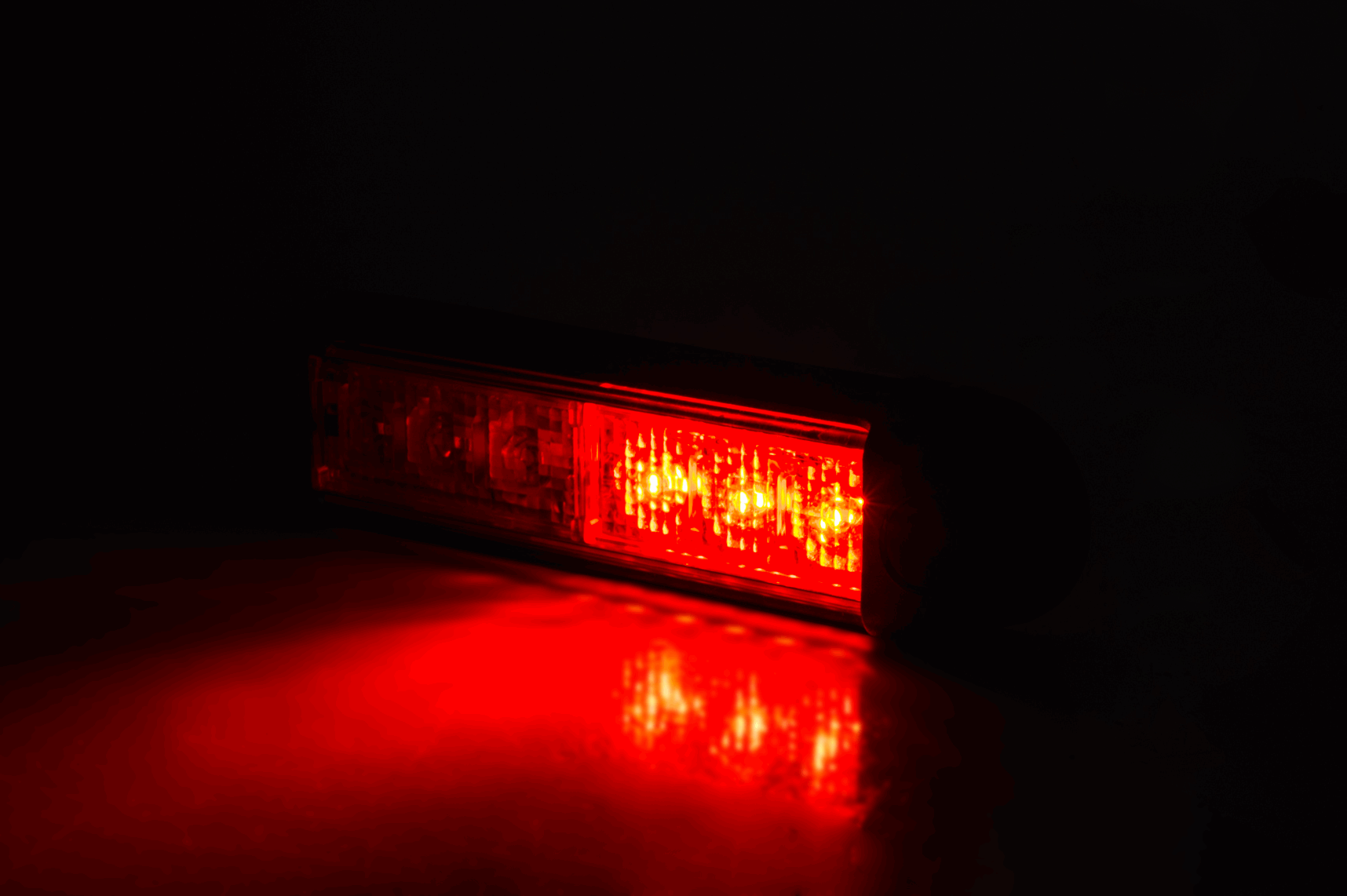

- Position: 0.4 W

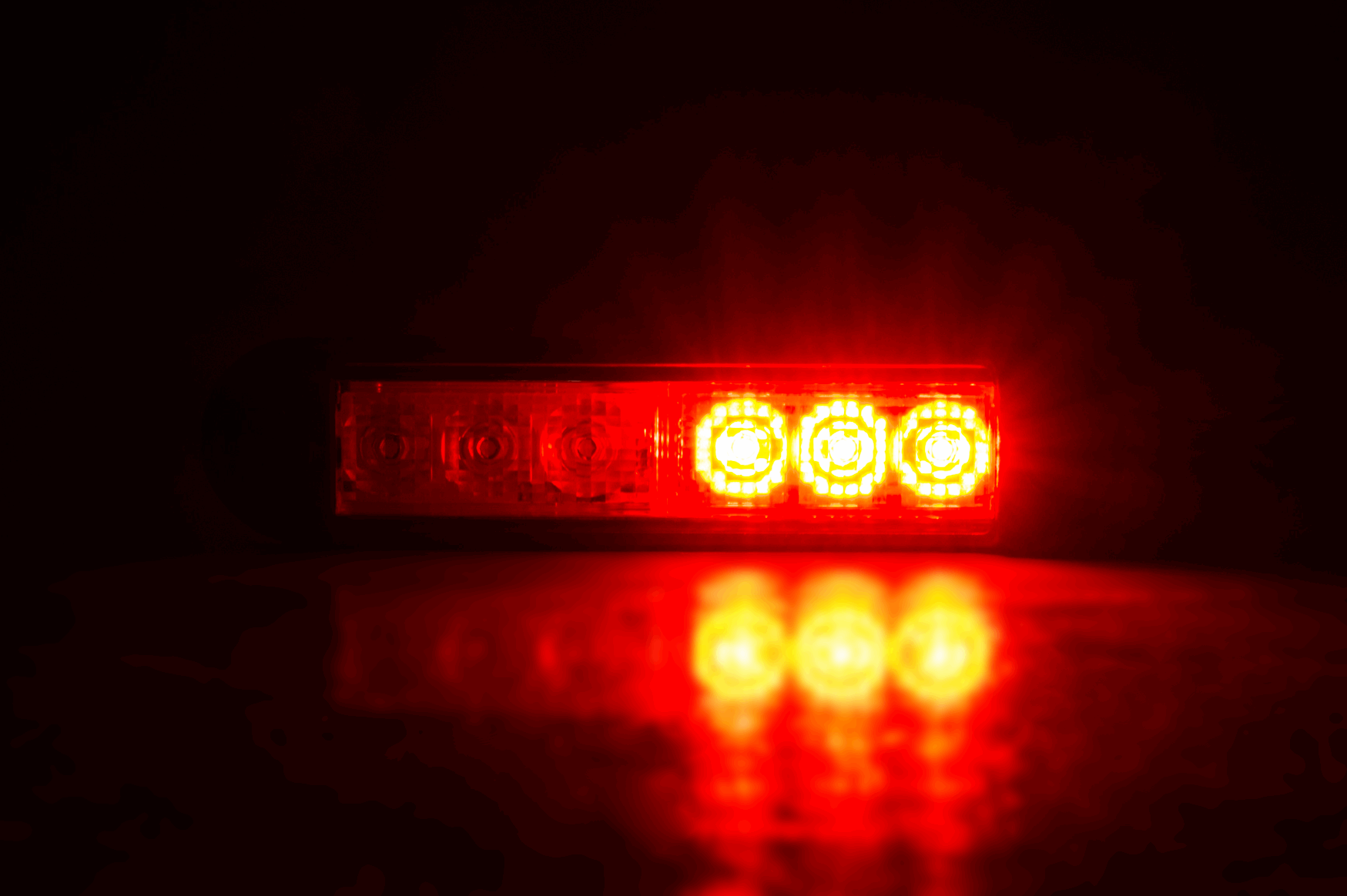

- Brake: 2.2 W

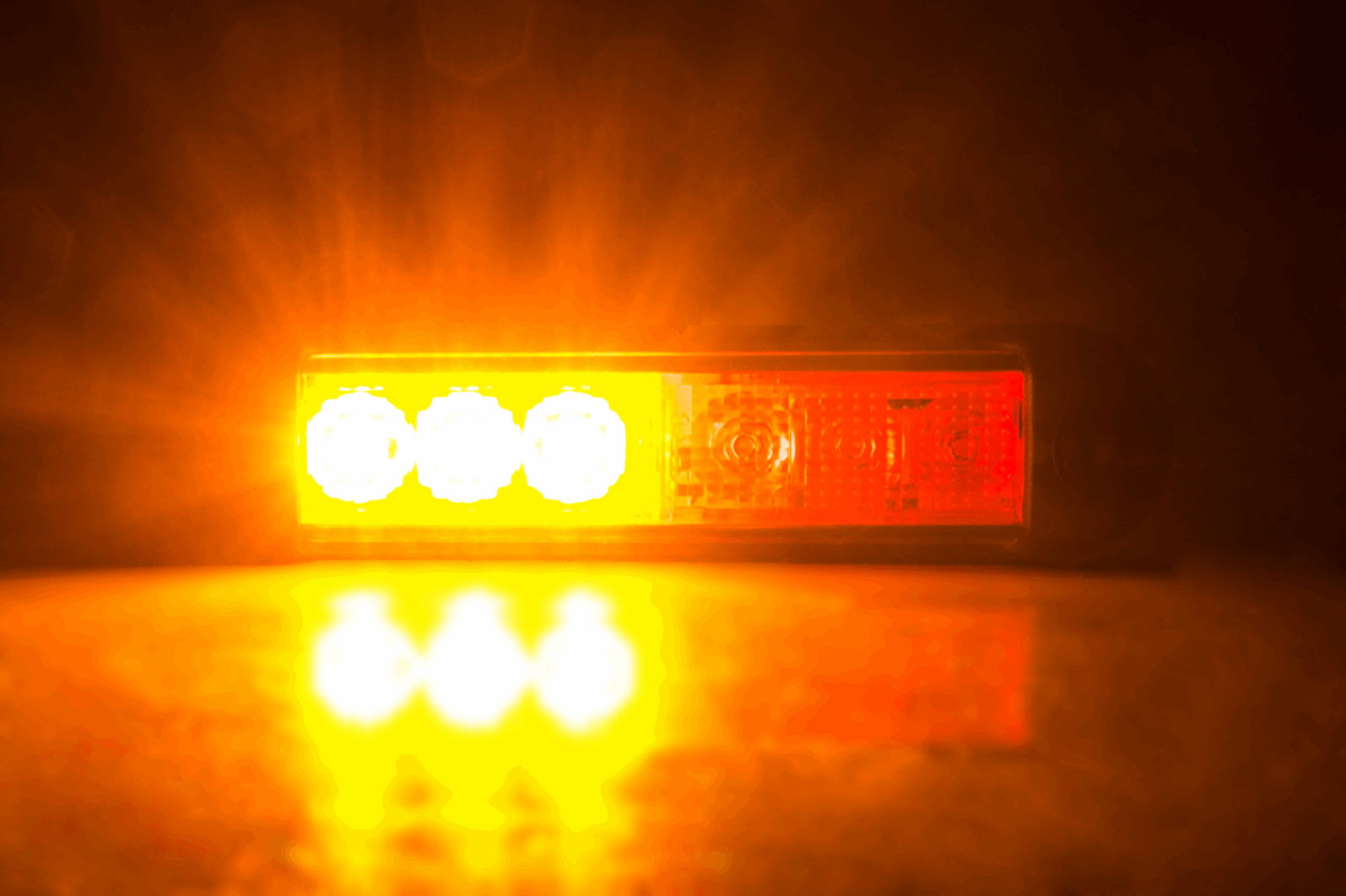

- Indicator: 2.0 W
Power Consumption at 24V:
- Position: 1.0 W
- Brake: 3.2 W
- Indicator: 2.5 W
