Multifunction Rear LED Lamp NAVIA LZD 2342

Elevate your vehicle’s safety and appearance with the NAVIA RL 2342 Multifunction Rear LED Lamp. Designed for performance, durability, and modern style, this lamp integrates multiple essential rear functions into one streamlined unit—position light, brake light, dynamic rear indicator, and number plate light.

Engineered with 61 high-efficiency LEDs, the RL 2342 delivers brilliant visibility in all conditions. The standout dynamic rear indicator adds a high-end, fluid lighting effect that enhances both safety and vehicle aesthetics. Built to perform in demanding environments, this lamp features an IP68 ingress protection rating, ensuring resistance to dust, water, and extreme temperatures.

Compatible with both 12V and 24V systems, the NAVIA RL 2342 is ideal for trailers, trucks, agricultural machinery, and special-purpose vehicles. Its universal side design and 1.5-meter cable make installation easy and versatile for a wide range of applications.

Key Features:

• 4-in-1 multifunction rear lamp: position, brake, dynamic indicator, and number plate light
• Equipped with 61 powerful, energy-efficient LEDs

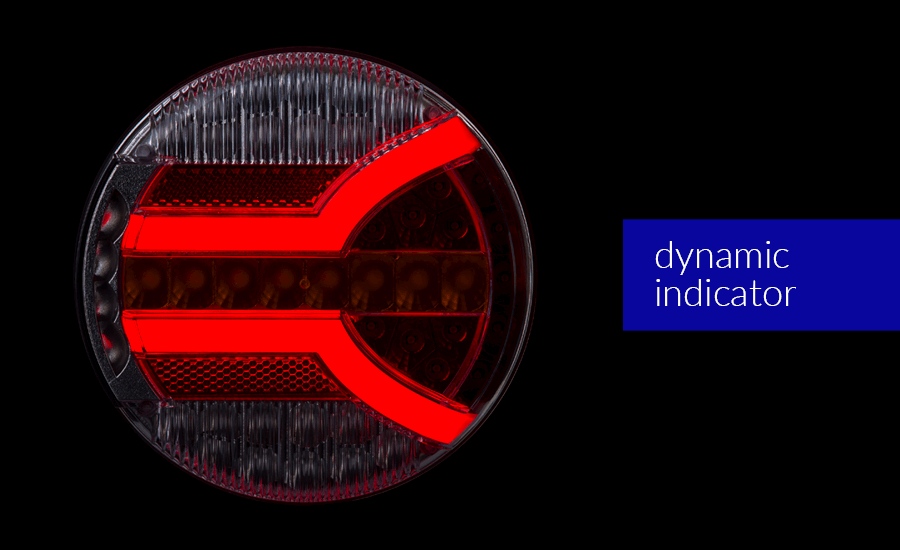

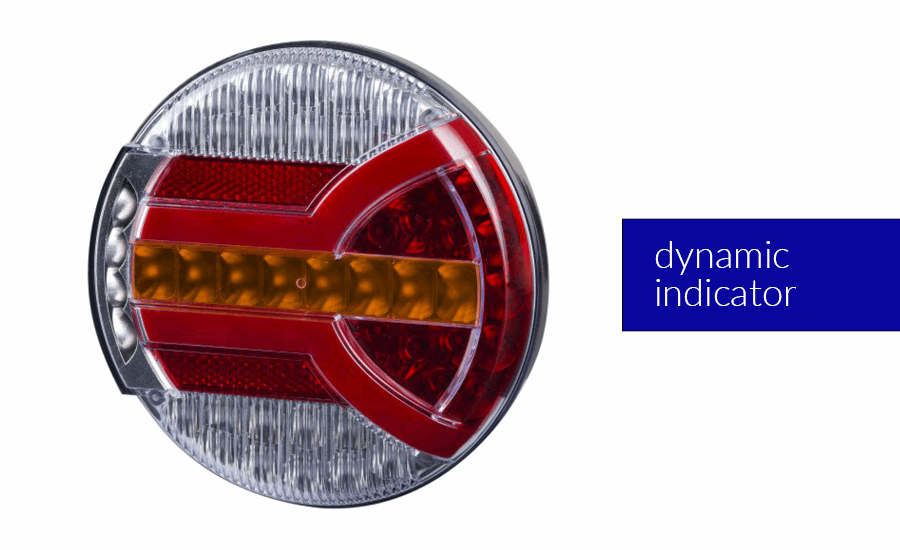

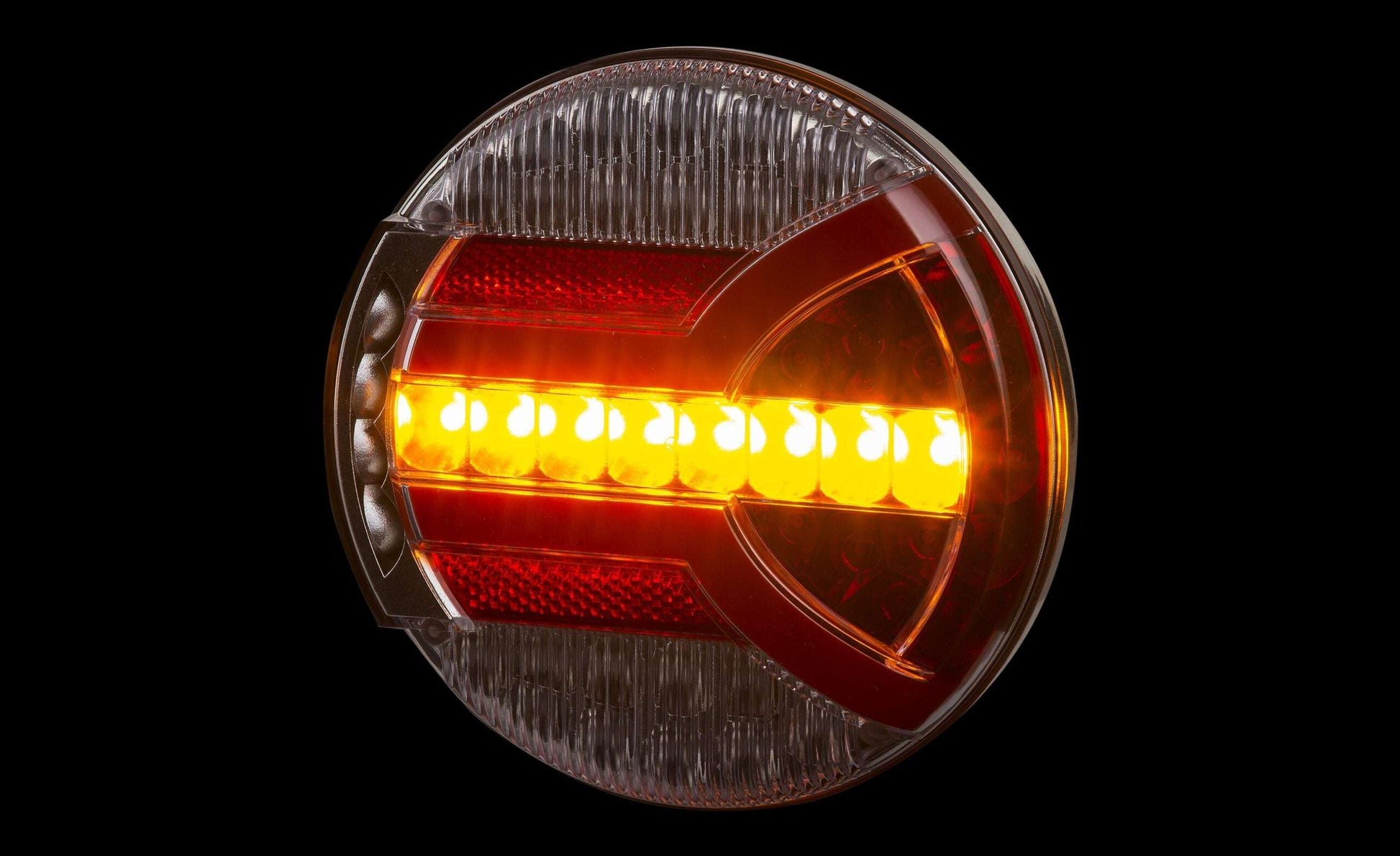

• Dynamic turn signal for a modern, sweeping lighting effect
• Integrated side number plate light
• Operates on both 12V and 24V electrical systems
• IP68-rated – waterproof, dustproof, and built for tough environments
• Long cable (1.5 m) for flexible installation
• Universal mounting (left/right side)
• Sleek, durable design for all vehicle types

Specifications:

• Model: NAVIA RL 2342
• Light Functions: Rear Position Light, Brake Light, Dynamic Rear Indicator, Number Plate Light
• LED Quantity: 61
• Supply Voltage: 12/24 V
• Cable: 5×0.5 mm²; 1.5 m length
• Operating Temperature: -22°F to +122°F
• Ingress Protection: IP68
• Light Group: HOR 94/B
• Light Category: Multifunction Rear
• Lamp Type: LED
• Side: Universal

Wire designations:

- white - ground

- black - rear position light

- red - stop light

- yellow - direction indicator light
