2 Function Brake & Positioning LED Lamp Slim Design LZD 2248

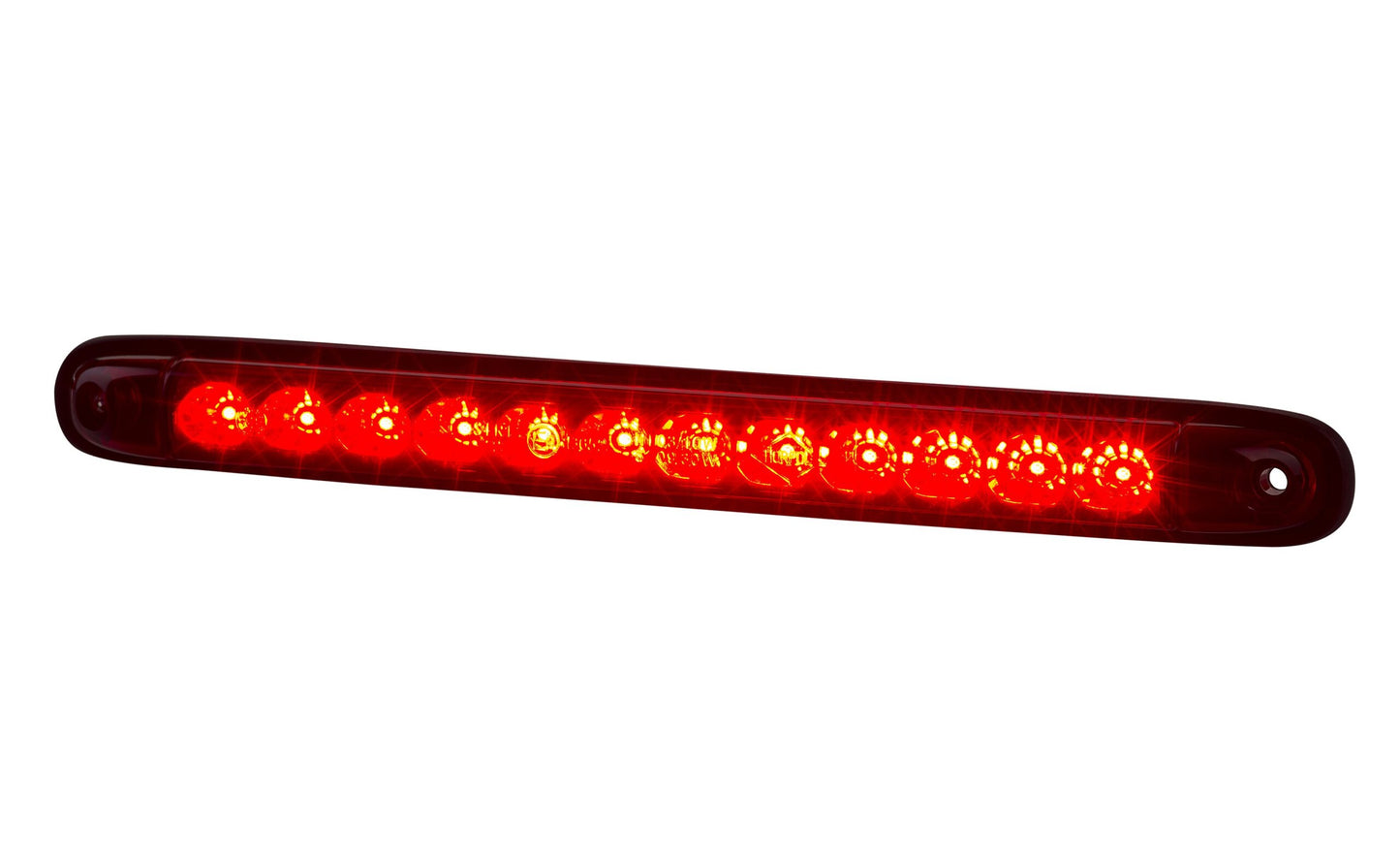

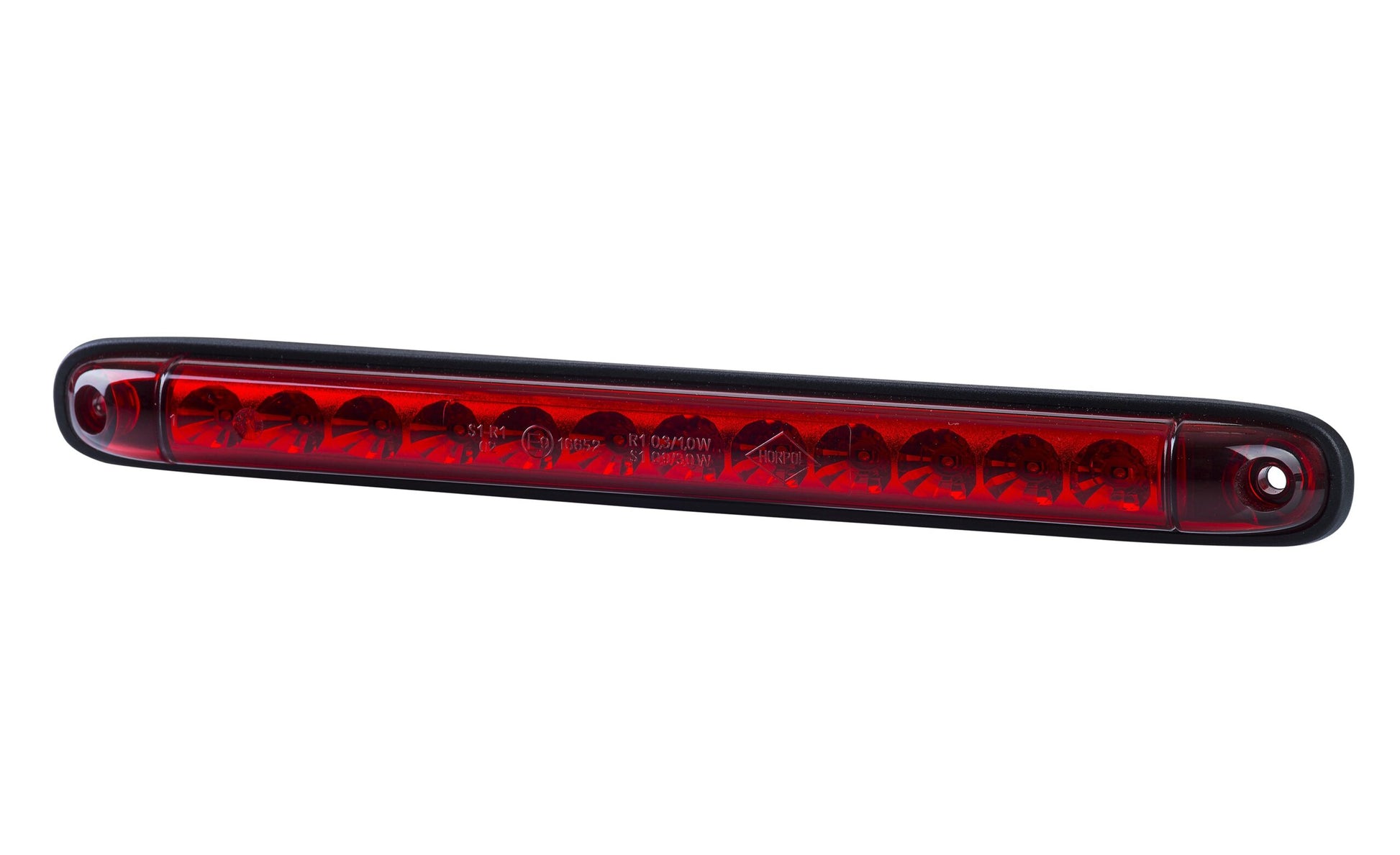

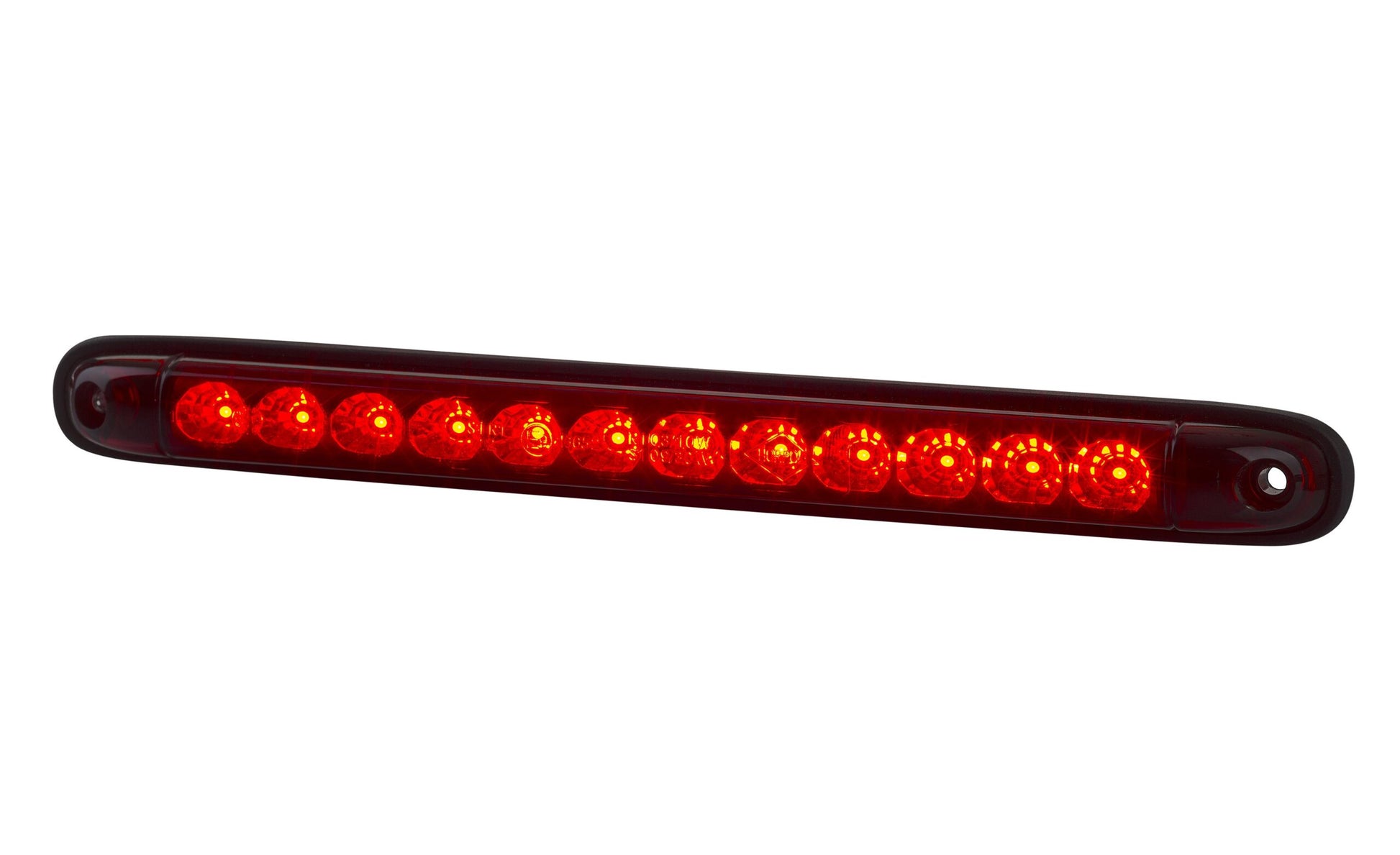

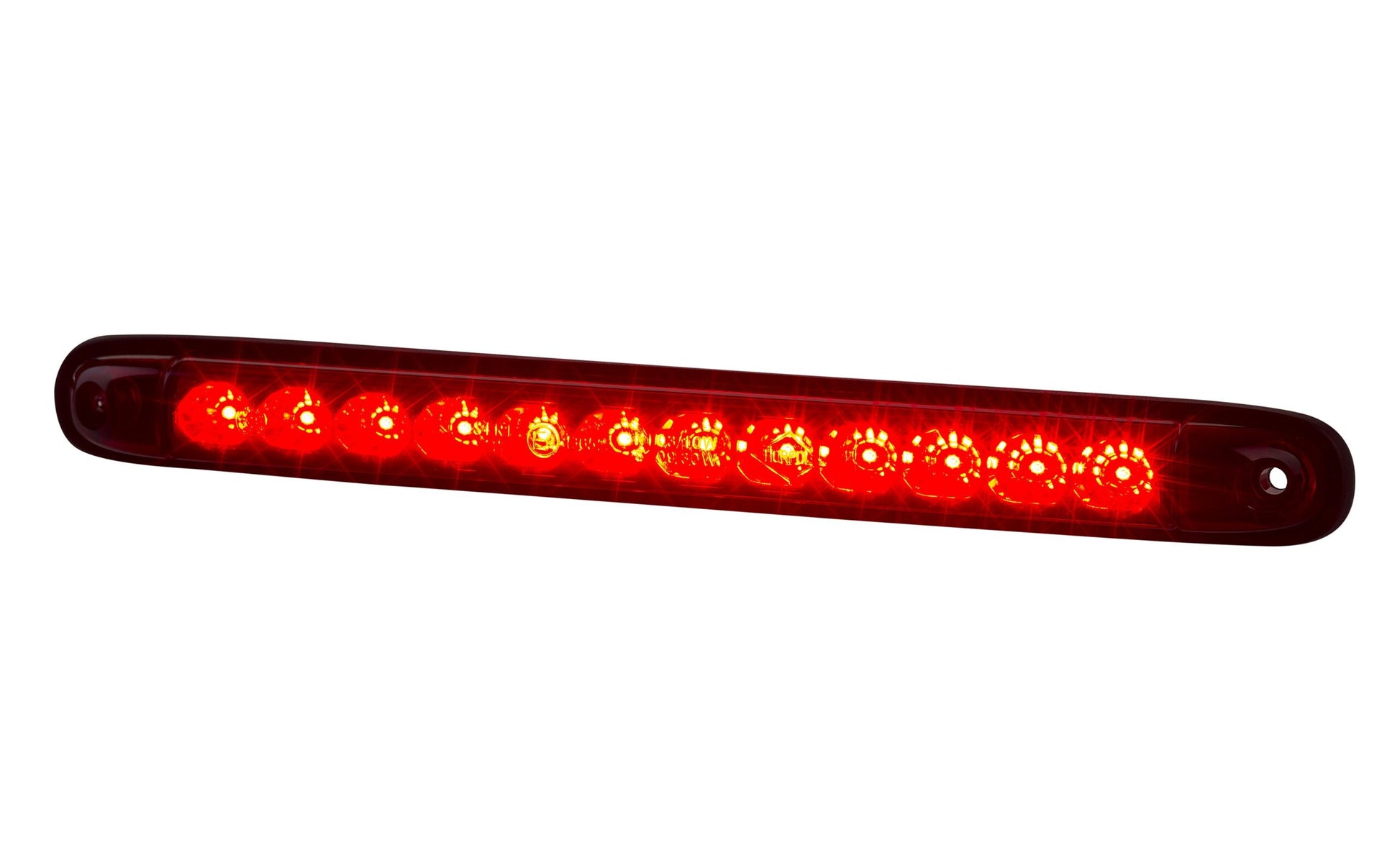

The RL 2248 Multifunction Rear LED Lamp offers dependable lighting performance with two essential functions: brake light and rear position light. Built with 12 high-efficiency LEDs, this compact and energy-efficient lamp is suitable for a wide range of vehicles, whether for OEM applications or aftermarket upgrades.

With universal 12/24V compatibility, a rugged waterproof housing (IP68), and a long-lasting LED design, the RL 2248 is a smart and durable lighting solution. Certified to E9 ECE R07 standards, it ensures both safety and compliance on the road, even under harsh working conditions.

Whether used in trailers, utility vehicles, or heavy-duty equipment, the RL 2248 provides bright, consistent lighting with low power consumption—making it a customer favorite across industries.

Key Features:

• Dual-function LED lamp: brake and position light
• 12 high-intensity LEDs for excellent visibility
• Compact size fits a wide variety of vehicle types
• Compatible with both 12V and 24V electrical systems
• Fully sealed and waterproof (IP68)
• Certified to E9 ECE R07 safety standards
• Durable, energy-efficient, and low-maintenance
• Clearly labeled wiring for fast installation
• Ideal for OEM builds or aftermarket installations

Specifications:

• Model: RL 2248
• Light Functions: Brake light, Rear position light
• LED Quantity: 12
• Supply Voltage: 12/24 V

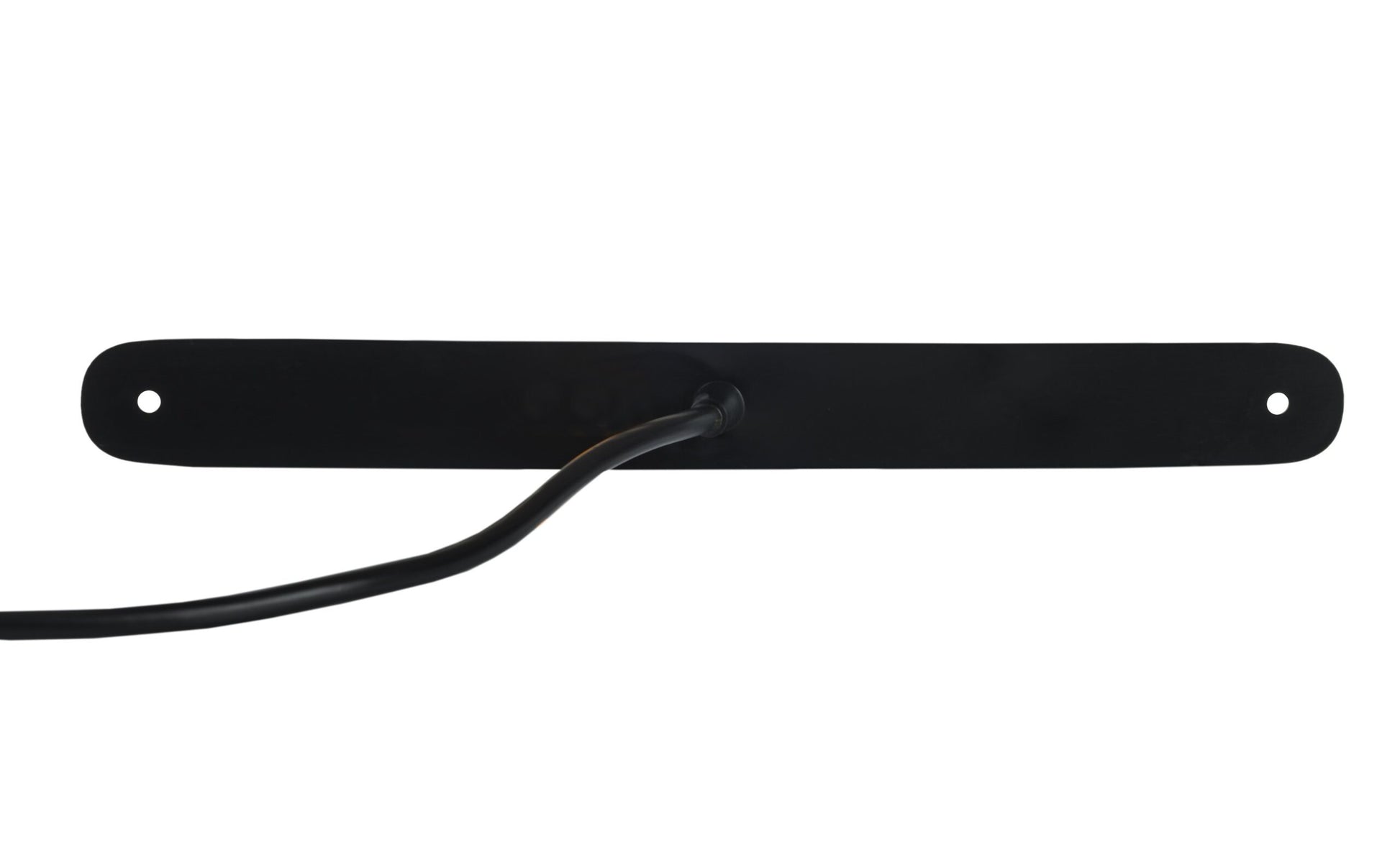

• Cable: 3×0.5 mm²; 1 m length
• Operating Temperature: -22°F to +122°F
• Ingress Protection: IP68 (dustproof and waterproof)
• Light Group: HOR 86A
• Light Category: Multifunction
• Side: Universal
• Lamp Type: LED
• Approvals: E9 ECE R07

Connection Wires:

• White – Ground
• Red – Brake Light
• Black/Brown – Position Light
