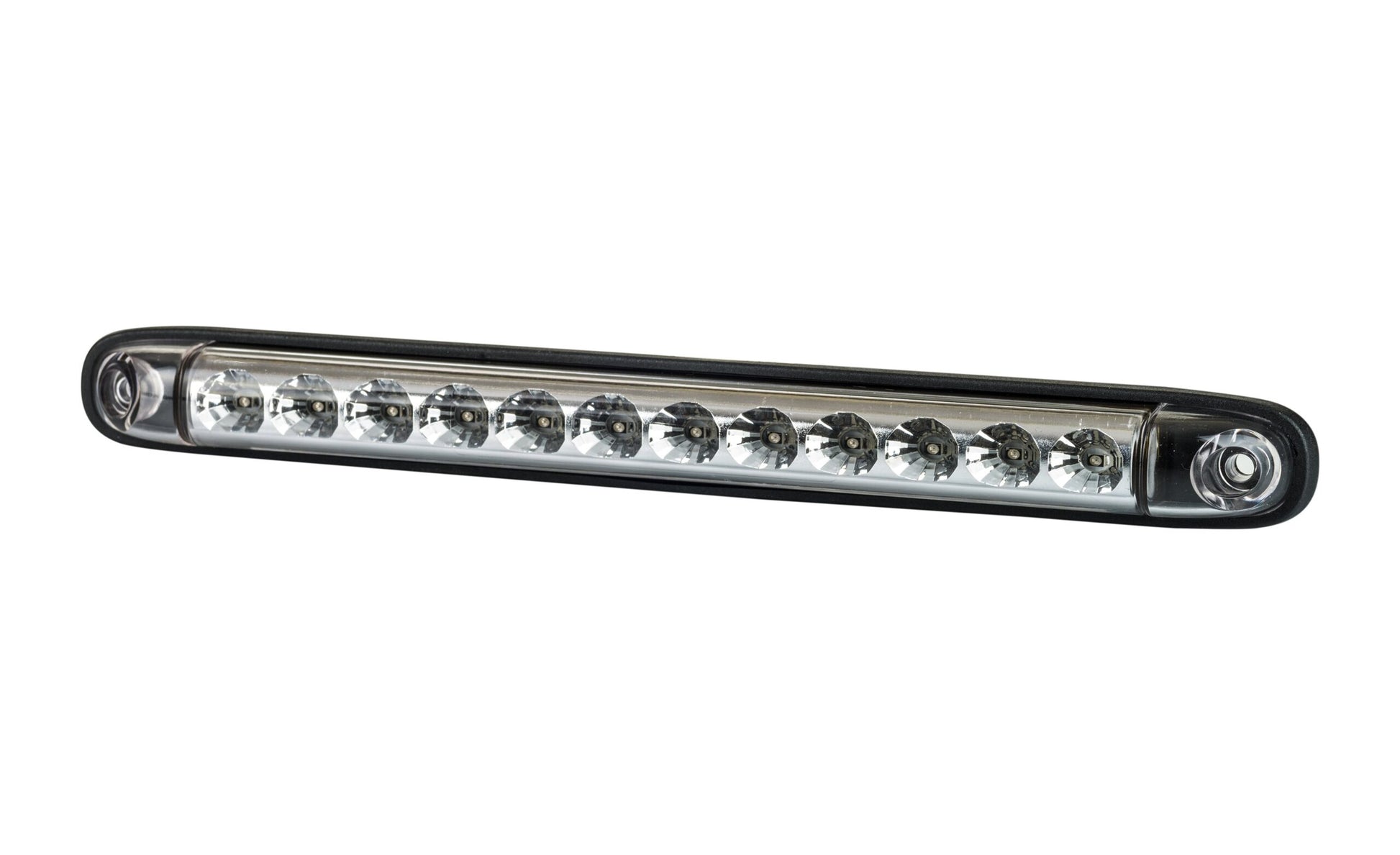

2 Function LED Lamp Slim Design LZD 2247

Enhance vehicle safety and visibility with the RL 2247 Multifunction Rear Lamp, a compact and efficient lighting solution featuring two essential functions: brake light and rear position light. With 12 integrated high-efficiency LEDs, this lamp delivers bright, consistent illumination for reliable signaling on all types of vehicles.

Its universal 12/24V compatibility, robust waterproof design (IP68), and compact form factor make it ideal for original equipment installations or aftermarket upgrades. The RL 2247 is certified to E9 ECE R07 standards, ensuring full compliance with European road regulations.

Whether used in commercial fleets, agricultural equipment, or utility vehicles, the RL 2247 provides long-lasting durability and energy-efficient lighting, even in harsh weather and demanding work environments.

Key Features:

• Dual-function rear lamp: brake light and position light
• 12 high-efficiency LEDs for bright and even illumination
• Compact design fits easily into various vehicle types
• Universal voltage input: 12/24V
• IP68 rating for superior resistance to water and dust
• Durable LED technology with low power consumption
• Certified E9 ECE R07 compliant for road safety
• Easy wiring with clear core color coding
• Perfect for OEM integration or retrofit applications
• Left + Right Usable

Specifications:

• Model: RL 2247
• Light Functions: Brake light, Rear position light
• LED Quantity: 12
• Supply Voltage: 12/24 V
• Operating Temperature: -22°F to +122°F
• Cable: 3×0.5 mm²; length 1 m
• Ingress Protection: IP68
• Light Group: HOR 86A
• Light Category: Multifunction
• Mounting Side: Universal
• Lamp Type: LED
• Approvals: E9 ECE R07

Connection Wires:

• White – Ground
• Red – Brake Light
• Black/Brown – Position Light
