RoadLites LED End Outline Marker Lights vs. Traditional Rubber Stalk Lights

Outline marker lights—often called end outline marker lights, lollipop lights, stalk lights, stalk arm lights, or flexible clearance lights—have been used on trucks, trailers and specialty vehicles for decades. Their job is simple but important: extend a visible light beyond the vehicle body so other road users can more easily recognize its outer edges and presence.

But not every outline marker light is built the same.

Many traditional designs still rely on a familiar formula: a round lamp, a rubber stalk, short wire leads and, on older versions, a replaceable bulb. RoadLites approached the category differently by modernizing the complete assembly—not just the light source.

RoadLites outline marker lights combine integrated LED technology with engineered polymer construction, application-specific lens materials, documented environmental protection and installation-ready wiring options. The result is a modern outline-lighting system designed for commercial vehicles that operate in rain, road spray, vibration, tight loading areas and demanding working conditions.

Here is how RoadLites compares with conventional bulb-style rubber stalk lights.

Quick comparison

Feature	RoadLites outline marker lights	Traditional bulb-style stalk lights
Light source	Integrated LEDs	Halogen or incandescent bulb on traditional models
Stalk construction	Engineered high-grade polymer	Conventional rubber
Wiring	Many models include approximately 6 feet of cable	Frequently supplied with shorter leads; varies by model
Connector options	Superseal or prong-style ends on applicable models	Separate connector or additional wiring may be required
Environmental protection	Documented IP68-rated models	Protection rating varies and may not be published
Lens material	Polycarbonate or PMMA, depending on model	Often PMMA/acrylic
Styling	Modern profiles and multiple series	Traditional round “lollipop” appearance
Lighting directions	Multi-directional configurations available	Varies by product
System options	Compatible accessories and harness solutions on select models	Varies by manufacturer and model

Specifications vary within both categories. Buyers should always compare the technical documentation for the exact models being considered.

1. Integrated LEDs instead of a traditional replaceable bulb

One of the clearest differences is the light source.

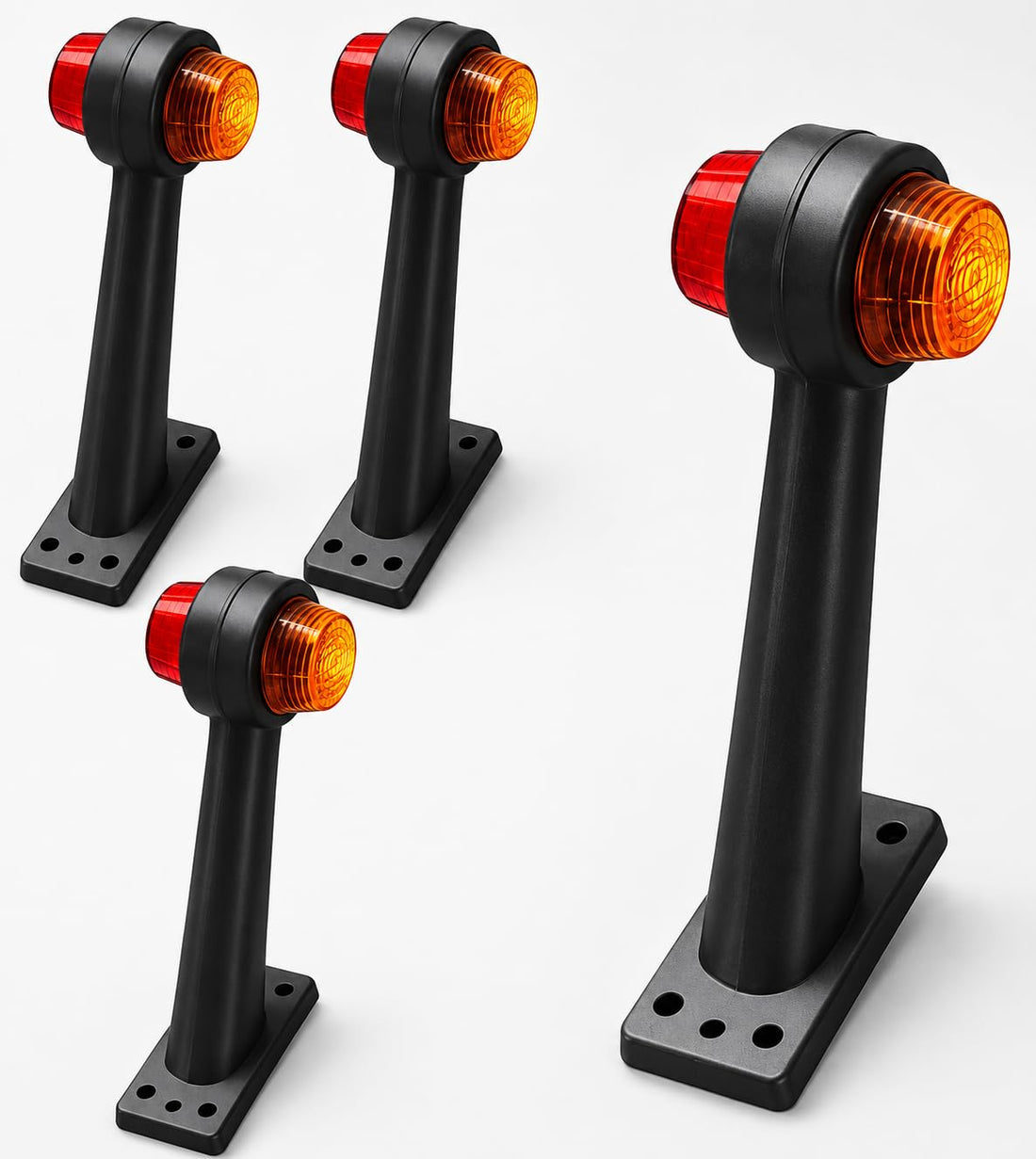

Traditional stalk lights were commonly designed around replaceable incandescent or halogen bulbs. Those lamps established the classic lollipop-light appearance, but they also created a service point inside the housing. A bulb could eventually burn out, loosen or require the lens or housing to be opened for replacement.

RoadLites outline marker lights use integrated LEDs. This allows the lamp to be designed as a compact, sealed assembly without a conventional replaceable bulb.

Practical advantages of an LED design include:

• Lower energy consumption than traditional bulb technology

• No routine bulb replacement

• Compact housing possibilities

• Consistent illumination across the intended lens area

• Modern multi-directional lighting configurations

• Compatibility with 12/24V commercial vehicle systems on specified models

It is important to make the right comparison: many lighting manufacturers now offer LED stalk lamps. RoadLites’ difference is not simply that LEDs are used. The larger advantage comes from how the LEDs, housing, stalk, wiring, connectors and lens are engineered together as a complete system.

2. Engineered polymer construction instead of a conventional rubber stalk

Traditional outline markers are commonly associated with a heavy rubber arm. Rubber can provide flexibility, but it also creates the familiar thick, utilitarian appearance found on older commercial-vehicle lighting.

RoadLites uses high-grade engineered polymer construction on its outline-marker designs. This supports both function and styling: the stalk can remain flexible while being molded into cleaner, more modern profiles.

That matters because outline lights are installed in exposed positions. They may encounter:

• Tree branches

• Loading-dock structures

• Garage and station doors

• Brushes and wash equipment

• Cargo-handling activity

• Vibration and movement during travel

A flexible stalk can move when contacted instead of concentrating every impact directly at a rigid mounting point. The exact flexibility, impact tolerance and operating-temperature range depend on the individual RoadLites model, so those specifications should be checked before choosing a light for a particular vehicle.

RoadLites offers both sleek contemporary designs and more traditional-looking models, allowing customers to choose between the modern Dragon Series appearance and Old School LED Outline Marker Lights without returning to outdated bulb technology.

3. More installation-ready cable and connector options

The lamp itself is only part of an installation. Cable length and connector design affect where a light can be mounted, how easily wiring can be routed and how many additional components an installer needs to source.

Many RoadLites outline marker lights include approximately six feet of cable. Applicable models may also be supplied with a Superseal or prong-style connector end already installed.

That can provide several practical advantages:

• More flexibility when routing wire through a truck or trailer body

• Less need to splice immediately beside the lamp

• Cleaner planning around frames, bumpers and body panels

• Fewer separate connection components to identify and purchase

• Weather-resistant connection options on models using compatible sealed connectors

By comparison, a conventional replacement stalk light may be supplied with shorter wire leads that require additional cable, splices or connector components before reaching the intended connection point.

This does not mean every RoadLites lamp fits every existing harness without modification. Installers must confirm the connector type, pin arrangement, cable length, voltage and vehicle wiring before installation. However, supplying the lamp as a more complete connection-ready assembly can reduce avoidable installation friction.

4. Documented IP68-rated protection

Outline marker lights are exposed to rain, snow, dust, road spray, washing and changing temperatures. Environmental protection is therefore more than a marketing detail.

RoadLites offers outline marker lights with a documented IP68 rating. In the IP code system, the first digit addresses protection against solid-particle ingress and the second addresses water ingress under defined test conditions. An IP68 rating represents the highest dust-protection category and protection for immersion conditions specified by the manufacturer and applicable testing documentation.

The careful distinction is important: IP68 does not mean a product is indestructible, suitable for every depth indefinitely or immune to installation damage. It means the product has a defined ingress-protection rating under specified conditions.

When comparing products, buyers should ask:

• Is an IP rating actually stated in the technical documentation?

• Does the rating apply to the complete lamp assembly?

• Are the connector and installation method appropriate for the environment?

• Have cable entries or seals been altered during installation?

Some competing outline lights may also carry an IP rating. Others may use general terms such as “weatherproof” or “water-resistant” without publishing a specific rating. RoadLites gives buyers a documented technical specification they can evaluate.

5. Polycarbonate and PMMA lens materials selected by application

The word “plastic” does not tell a buyer enough about a lamp lens. Different transparent polymers provide different advantages.

Depending on the RoadLites model, the lens may be made from polycarbonate or PMMA acrylic.

Polycarbonate lenses

Polycarbonate is widely used when impact resistance and mechanical durability are design priorities. It can be well suited to exposed vehicle-lighting applications where the lens may face road debris, vibration or incidental contact.

PMMA acrylic lenses

PMMA is valued for optical clarity and UV resistance. It is used in many quality automotive lamps and should not automatically be treated as an inferior material.

The RoadLites advantage is the use of model-specific materials rather than a one-material marketing claim. Selected RoadLites products use polycarbonate where impact resistance is important, while other models use PMMA for its optical and weathering properties.

When comparing a RoadLites lamp with a conventional PMMA-lens product, the accurate question is not “Is acrylic bad?” It is: “Which lens material was chosen for this specific application, and what properties matter most at the mounting location?”

6. Multi-directional visibility in a single modern assembly

An outline marker does more than create a point of light. Its value comes from which directions the light can be seen and how clearly it communicates the vehicle’s boundaries.

RoadLites offers multi-directional outline-marker configurations designed to present the appropriate lamp faces toward different viewing directions. Depending on the specific model, a single assembly may incorporate separate forward-, side- or rear-facing illuminated sections.

This integrated approach can help:

• Define the outer corners of a truck, trailer or body

• Increase recognition from angled viewpoints

• Reduce visual obstruction from deep body profiles or equipment compartments

• Create a cleaner installation than multiple unrelated lamps

• Give the vehicle a consistent, intentional appearance

Color, mounting position and use must still be evaluated for the vehicle and jurisdiction. Auxiliary outline marker lights should not replace required clearance, identification, side-marker, stop, turn or tail lamps, and added lighting must not impair required lighting equipment.

7. Modern design without abandoning the classic option

Commercial lighting does not have to look like it was designed decades ago.

The RoadLites Dragon Series gives fleets, owner-operators and vehicle builders a sleeker alternative to the traditional round rubber stalk. Its molded profile creates a contemporary appearance that works well on newer trailers, box trucks, specialty bodies and custom builds.

For customers who prefer the familiar lollipop-light look, RoadLites also offers Old School LED Outline Marker Lights. These retain the classic round stalk-style appearance while incorporating modern LED technology.

That creates a straightforward choice:

• Dragon Series: Sleek, modern outline-marker styling

• Old School Series: Traditional appearance with LED technology

The customer does not have to choose between a classic vehicle style and the practical advantages of a modern LED assembly.

Is RoadLites simply “better” than every competing light?

No responsible comparison should claim that one product is better than every alternative in every application. Vehicle design, mounting location, voltage, connector type, visibility needs and operating conditions all matter.

What RoadLites can demonstrate is that its outline marker lights offer a combination of features not normally associated with a basic traditional replacement lamp:

• Integrated LED construction

• Engineered polymer stalk designs

• Approximately six feet of cable on many models

• Preinstalled connector options on applicable models

• Documented IP68-rated protection

• Polycarbonate or PMMA lens engineering by application

• Multi-directional configurations

• Both modern and traditional styling choices

• Compatible accessories and harness solutions for select products

That is the real RoadLites difference: the company did not merely replace a halogen bulb with an LED. The complete outline-marker system was reconsidered—from the stalk and lens materials to the cable, connector, visibility directions and overall appearance.

Which RoadLites outline marker light is right for your vehicle?

Before ordering, consider:

1. Where the light will be mounted

2. Which directions must remain visible

3. Which lamp colors are appropriate for the intended position

4. Whether the vehicle uses a 12V or 24V system

5. Which cable length and connector type are required

6. Whether a modern or traditional appearance is preferred

7. Whether compatible covers, brackets or harness accessories are needed

8. Whether the light will be auxiliary or used in a regulated lighting position

RoadLites offers outline marker options for semi-trucks, trailers, box trucks, flatbeds, tankers, fire apparatus, service vehicles and other commercial equipment.

Explore the RoadLites Auxiliary Outline Marker Lights, compare the Dragon Series and Old School Series, or contact RoadLites for help selecting a model for a fleet or specialty-vehicle application.

Product specifications vary by model. Verify the individual product page and technical documentation before ordering or installation. Auxiliary lighting does not replace required vehicle lighting. This article provides general product information and is not legal, engineering or installation advice.

Select RoadLites outline marker-light designs are patent pending in the United States.
