How to Improve Visibility Around a Box Truck Liftgate at Night

Box trucks and delivery vehicles rarely unload under perfect conditions. Drivers may arrive before sunrise, after dark or at a customer location with little exterior lighting. They often work near parking-lot traffic, loading docks, pedestrians and employees who are focused on the delivery rather than the vehicle.

Lowering the liftgate creates another visibility challenge. The gate extends the truck's working area beyond the rear body, while cargo placed on the platform can block or compete with rear lamps and reflectors. From certain angles, another driver may see the truck but fail to immediately recognize that its liftgate is lowered or that someone is working behind it.

A thoughtful LED lighting setup can make the active loading area easier to identify. The strongest approach uses different lights for different jobs: warning lights to identify the liftgate, work lights to illuminate the loading area and auxiliary outline marker lights to emphasize the vehicle's outer corners.

Why liftgates create nighttime visibility challenges

A closed box truck has a familiar rectangular profile. Its required lighting and reflective material help other road users recognize the vehicle's presence and dimensions. Opening the roll-up door and lowering the liftgate changes that visual picture.

Common challenges include:

• A horizontal liftgate platform extending behind the truck

• Cargo or carts blocking existing rear lights and reflectors

• A worker standing between the truck and approaching traffic

• Poorly illuminated pavement, curbs, potholes or dock edges

• Bright overhead lights creating shadows directly behind the body

• Liftgate components, hinges and wiring exposed to vibration and weather

• Passing motorists failing to recognize that loading is underway

Industry guidance has noted that cargo stacked on a lowered gate can obstruct lighting and reflectors, reducing the visibility of both the vehicle and the person working around it. That makes the liftgate itself an important part of the truck's visibility plan—not merely a piece of loading equipment.

Three different lighting jobs around a liftgate

Warning, work and marker lights are sometimes discussed as if they perform the same function. They do not. A well-planned box-truck setup assigns each type of light a specific job.

1. Liftgate warning lights identify the moving platform

A purpose-built liftgate warning light helps draw attention to the gate when it is deployed. Depending on the installation and electrical design, the warning light may be mounted where it remains visible as the platform moves or while it is in its working position.

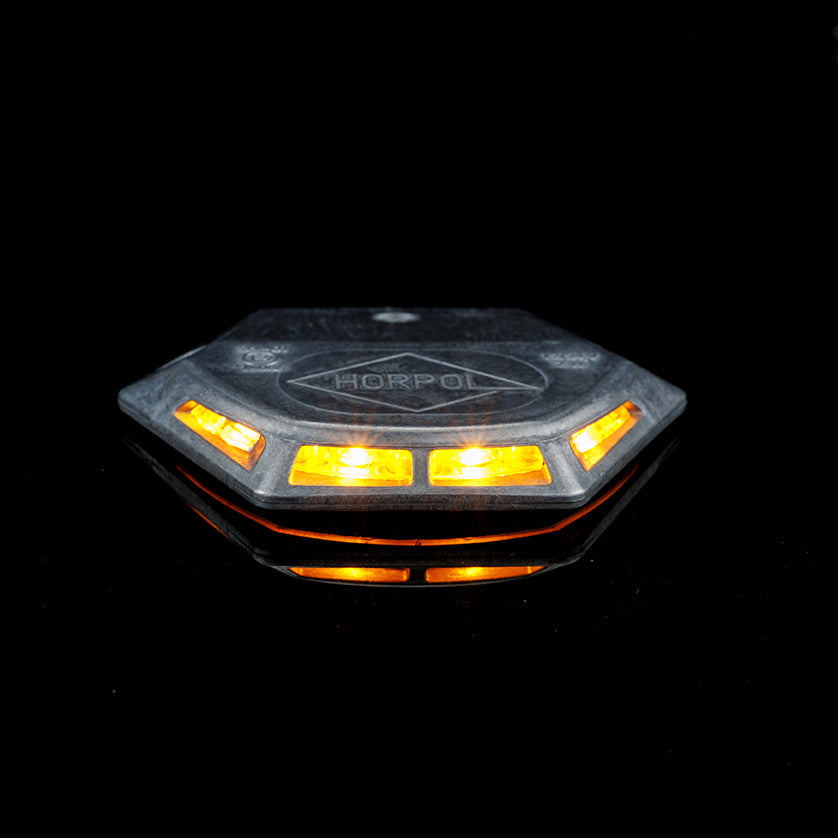

The RoadLites Lift Gate LED Warning Light LDO 2135 is designed specifically for this application. Its compact construction makes it suitable for locations where a large warning lamp could interfere with liftgate operation.

Key listed specifications include:

• Four LEDs

• 12/24V compatibility

• 7W power rating

• IP68 ingress-protection rating

• Compact, low-profile construction

• Warning-light function for liftgate applications

Rather than relying on a general-purpose lamp near the loading area, a dedicated liftgate light visually connects the warning signal to the platform itself.

2. Work lights illuminate the loading surface

A warning light attracts attention, but it is not necessarily intended to illuminate cargo, the pavement or the worker's footing. That is the job of a work light.

An appropriately selected LED work lamp can help illuminate:

• The liftgate platform

• The transition between the cargo floor and the gate

• The ground immediately behind the truck

• Carts, pallet jacks and freight

• Curbs, uneven pavement and other obstacles

Work lights should be aimed at the task area—not directly into the eyes of workers, passing motorists or vehicles approaching from behind. More light is not automatically better if glare makes it harder to see.

For rear loading areas, a broad dispersed beam will often be more useful than a narrow long-distance spot beam. The correct lamp and aim depend on the truck's body height, loading pattern and operating environment.

3. Outline marker lights emphasize the truck's outer corners

When a liftgate is lowered and the rear door is open, attention is naturally drawn toward the illuminated center of the truck. Auxiliary outline marker lights mounted near the outer rear corners can make the width and edges of the body easier to recognize from an angle.

Flexible stalk-style outline markers are especially useful on commercial bodies because they extend the visible light beyond the flat side or rear surface. Depending on the RoadLites model, a multi-directional outline marker can present different colors toward the front, side and rear of the vehicle.

These lights can help visually frame the truck, but they are supplemental. They must not replace, obscure, impair or be confused with lighting required by applicable vehicle-safety regulations.

Where should liftgate lights be mounted?

There is no single mounting location that fits every box truck. Tuck-away gates, rail gates, column lifts and cantilever-style gates move differently and create different pinch points. Installation should follow the liftgate manufacturer's instructions, the light manufacturer's instructions and the vehicle's electrical requirements.

Before drilling or routing wiring, cycle the liftgate through its entire range of motion. Check the platform while fully stowed, opening, horizontal, lowered to the ground and raised to the cargo floor.

Warning lights on the liftgate

The warning light should remain visible in the position where the hazard exists. A lamp that disappears behind the platform, bumper, cargo or lift mechanism provides little value.

Check that the proposed mounting point:

• Does not interfere with folding, closing or stowing the gate

• Is not located in a pinch, shear or impact zone

• Does not become a step or cargo-contact point

• Keeps the lens visible from relevant approach angles

• Allows the wire to move safely without stretching or binding

• Provides access for inspection and replacement

Work lights above or beside the loading area

Work lights may be mounted above the rear opening or on the truck body, depending on the body design. The goal is even illumination across the platform and nearby ground with minimal glare and shadow.

Mounting a lamp too low may cause cargo or workers to block the beam. Mounting it too high or aiming it too far outward can shine into traffic instead of the work area.

Outline markers at the outer corners

Outline markers should emphasize the vehicle's outer edges without contacting the roll-up door, gate structure, dock, cargo or nearby equipment. Flexible stalk designs can offer additional impact tolerance where protruding lights may encounter branches, door frames or loading-area obstacles.

Any installation involving regulated marker or clearance-light locations should be reviewed for the vehicle's specific configuration and applicable requirements.

Protecting wiring around moving liftgate components

The lamp is only as reliable as its wiring. A liftgate repeatedly folds, slides or travels while exposed to water, road spray, salt, dirt and vibration. Poorly routed wiring can rub against metal, become pinched or pull loose as the gate moves.

Good installation practices include:

• Following both the liftgate and light manufacturers' wiring instructions

• Using wire and connectors appropriate for the vehicle and environment

• Protecting circuits with the correct fuse or other specified protection

• Keeping wiring away from hydraulic components, hinges and sharp edges

• Allowing sufficient controlled movement without leaving loose loops

• Supporting the harness at appropriate intervals

• Sealing connections against moisture where required

• Testing the system through multiple complete liftgate cycles

Electrical work should be completed or reviewed by a qualified installer familiar with commercial vehicles and liftgate systems.

Preventing glare while improving visibility

An extremely bright lamp aimed incorrectly can reduce visibility rather than improve it. Drivers approaching from behind may be temporarily dazzled, while the person unloading may struggle to see into darker areas beyond the beam.

To control glare:

• Aim work lights downward toward the platform and immediate work area

• Use an appropriate beam pattern instead of selecting solely by lumen output

• Avoid placing exposed white work lights at direct eye level

• Check the setup from the worker's position and from an approaching vehicle

• Test the lighting with the rear door open and with representative cargo present

• Use warning lamps for attention and work lamps for illumination

The final setup should create useful contrast without turning the back of the truck into a wall of uncontrolled light.

A nighttime liftgate inspection checklist

Drivers and fleet personnel should inspect the system in the environment where it will be used. A light that appears functional during the day may be misaligned, partially blocked or glaring after dark.

Before or during the vehicle's normal inspection process, check that:

• Liftgate warning lights activate as intended

• Lenses are clean, intact and visible

• Work lights illuminate the platform and ground evenly

• Outline marker lights remain visible from the intended directions

• Cargo does not cover critical lamps or reflectors

• Wiring is secured and free from rubbing, pinching or damage

• The liftgate completes its full movement without contacting a lamp or harness

• No added lamp obscures or impairs required vehicle lighting

• Workers understand what the warning signal means

Any damaged or malfunctioning component should be addressed before the lighting is relied upon for an active delivery.

Build a complete rear-visibility system for box trucks

No single light solves every visibility issue behind a delivery vehicle. A more complete setup uses:

1. A dedicated liftgate warning light to identify the deployed platform

2. A properly aimed work light to illuminate the platform and surrounding ground

3. Auxiliary outline marker lights to emphasize the outer corners of the truck body

4. Clean required lamps and reflective material that remain unobstructed and functional

5. Safe loading procedures and worker awareness whenever the gate is in operation

For fleets making early-morning, nighttime or poorly lit deliveries, liftgate lighting is a small equipment detail with a very practical purpose: helping other people recognize the truck's changing footprint and helping workers see the area where they are handling freight.

Explore the RoadLites Lift Gate LED Warning Light LDO 2135, Auxiliary Outline Marker Lights and LED Work Lights to build a more visible rear loading area for box trucks and commercial delivery vehicles.

Safety notice: This article provides general information and is not legal, engineering or installation advice. Added lighting does not replace required vehicle lamps, reflective material, safe operating procedures or compliance with applicable federal, state and local requirements. Follow the vehicle, liftgate and light manufacturers' instructions and use a qualified installer when appropriate.
