3 Function Red and Orange Rear LED Light Slim Design LZD 2246

The RL 2246 Multifunction Rear LED Light is a compact, high-performance lighting solution designed for a wide range of vehicles. Whether you're outfitting new equipment or upgrading an existing fleet, this lamp delivers reliable visibility with three essential functions: rear position light, brake light, and direction indicator – all in one modern, space-saving design.

Equipped with 12 powerful LEDs (6 red and 6 orange), the RL 2246 ensures bright and consistent lighting, while its universal 12/24V compatibility, IP68-rated protection, and low power consumption make it ideal for both on-road and off-road applications.

Built for long-lasting durability and extreme conditions, this lamp is a smart investment for vehicle manufacturers, retrofitters, and professional users alike.

Key Features:

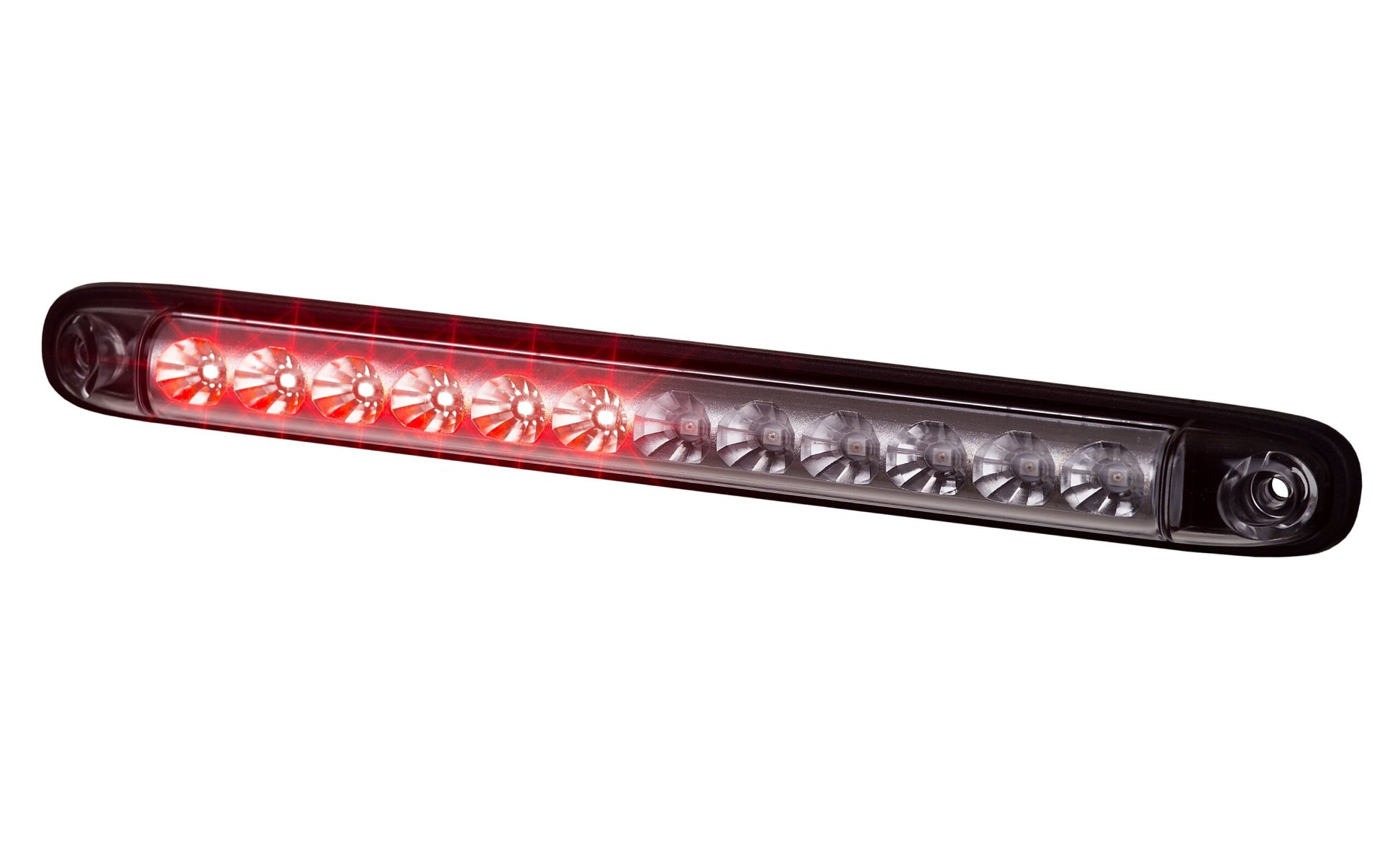

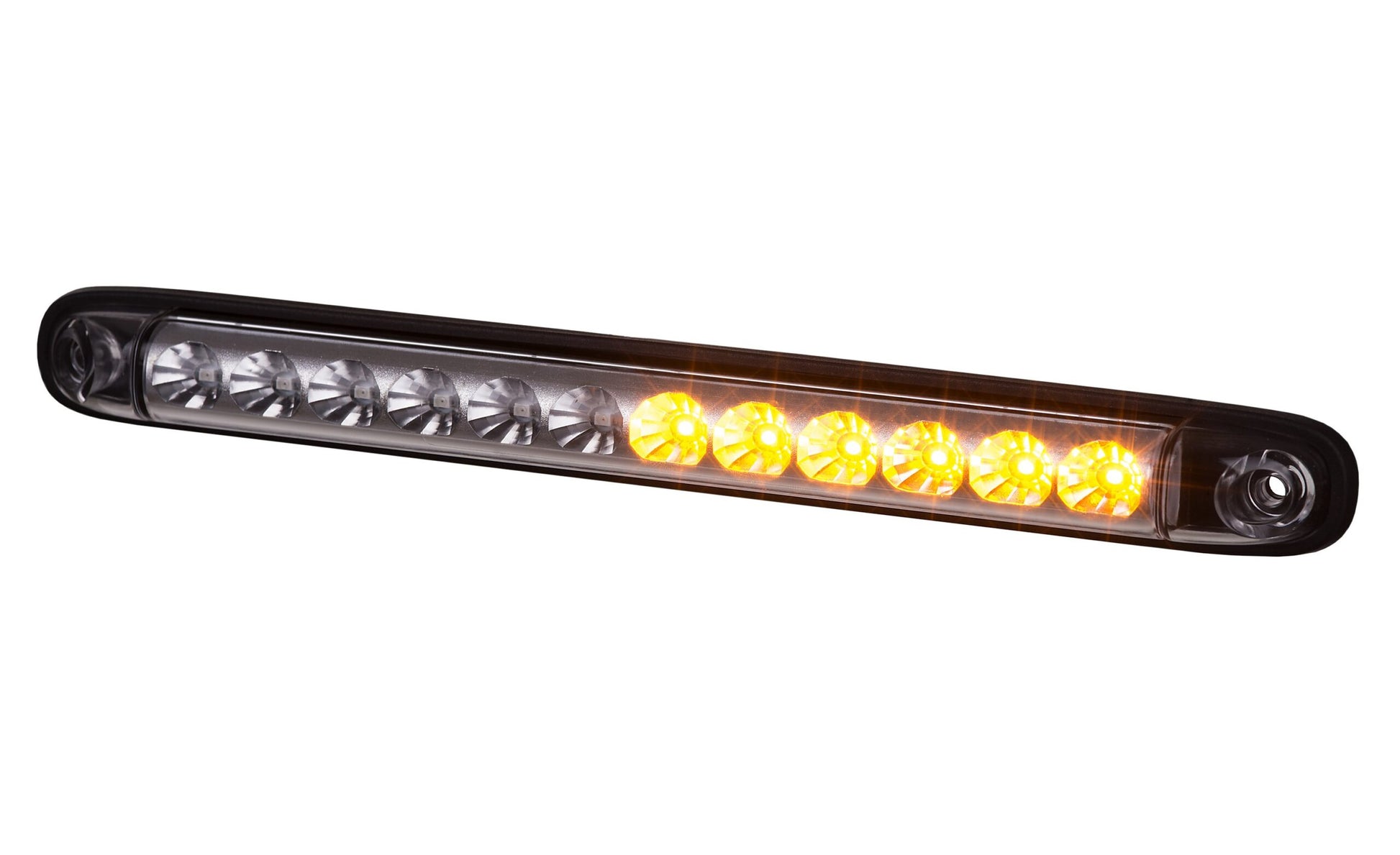

• 3-in-1 rear LED light: brake, position, and indicator
• Compact design ideal for limited mounting spaces

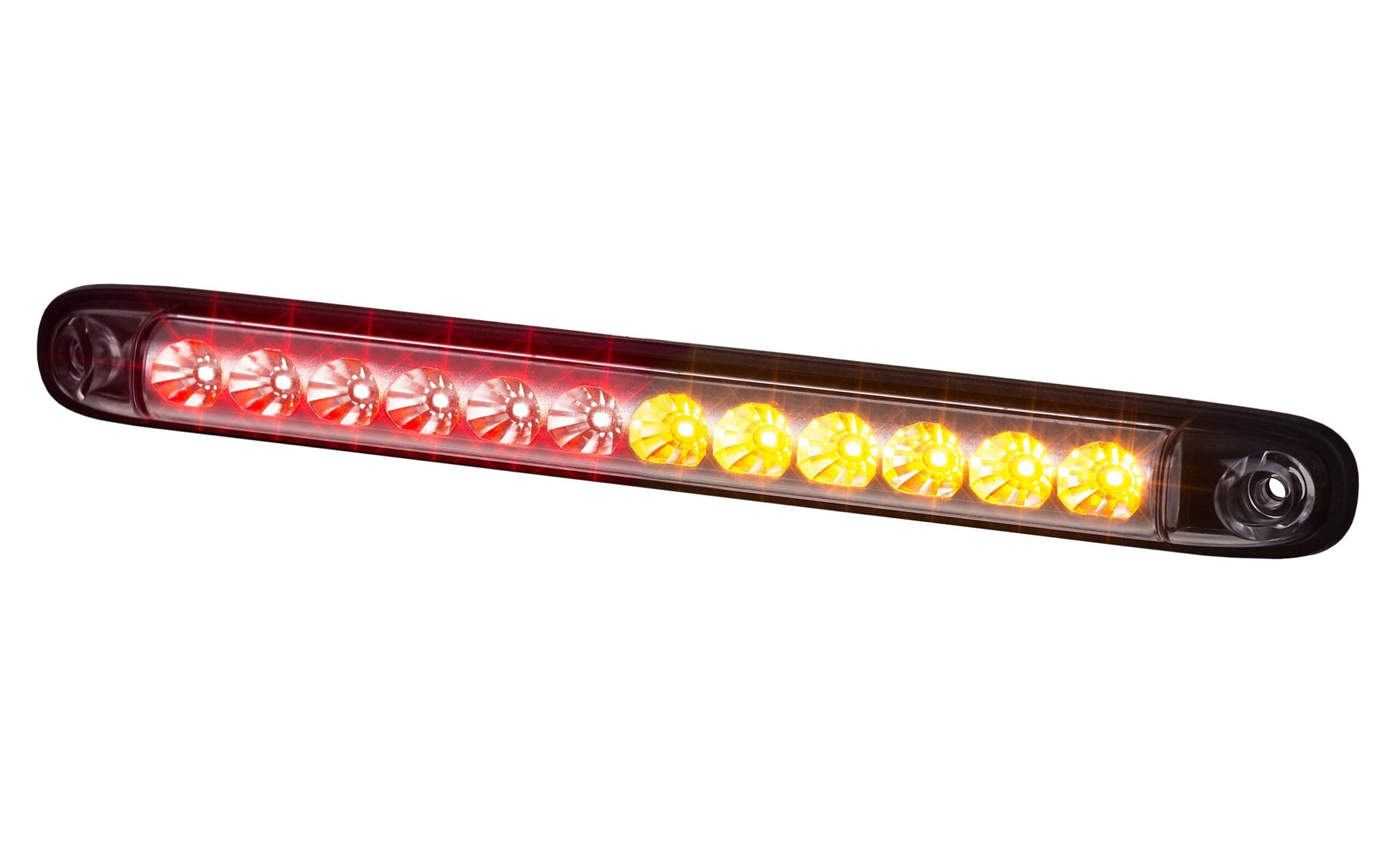

• 12 efficient LEDs (6 red, 6 orange) for optimal visibility
• Universal 12/24V input for flexible installation
• Durable, weather-resistant housing (IP68 rating)
• Low power consumption for energy efficiency
• Approved to ECE standards (E9 ECE R06 / R07)
• Suitable for all vehicle types – OEM or retrofit
• Customizable cable length available upon request
• Left + Right usable

Specifications:

• Model: RL 2246
• Light Functions: Brake, Position, Direction Indicator
• LED Quantity: 12 (6 red, 6 orange)
• Supply Voltage: 12/24 V

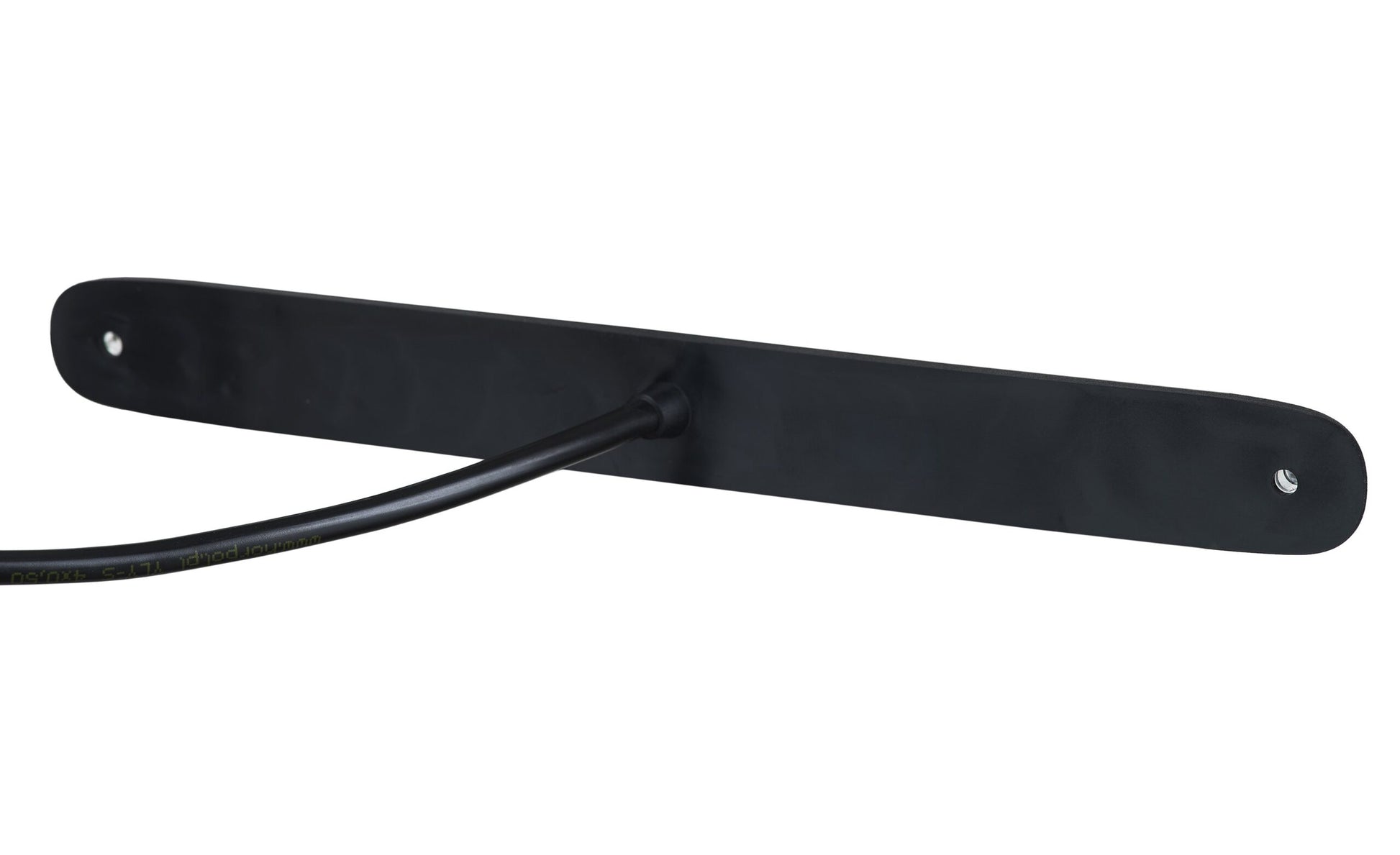

• Cable: 4×0.5 mm², 1 m length (customizable on request)
• Operating Temperature: 22°F to +122°F
• Ingress Protection: IP68
• Light Group: HOR 86
• Light Category: Multifunction Rear
• Mounting Side: Universal
• Lamp Type: LED
• Certifications: E9 ECE R06 / R07
